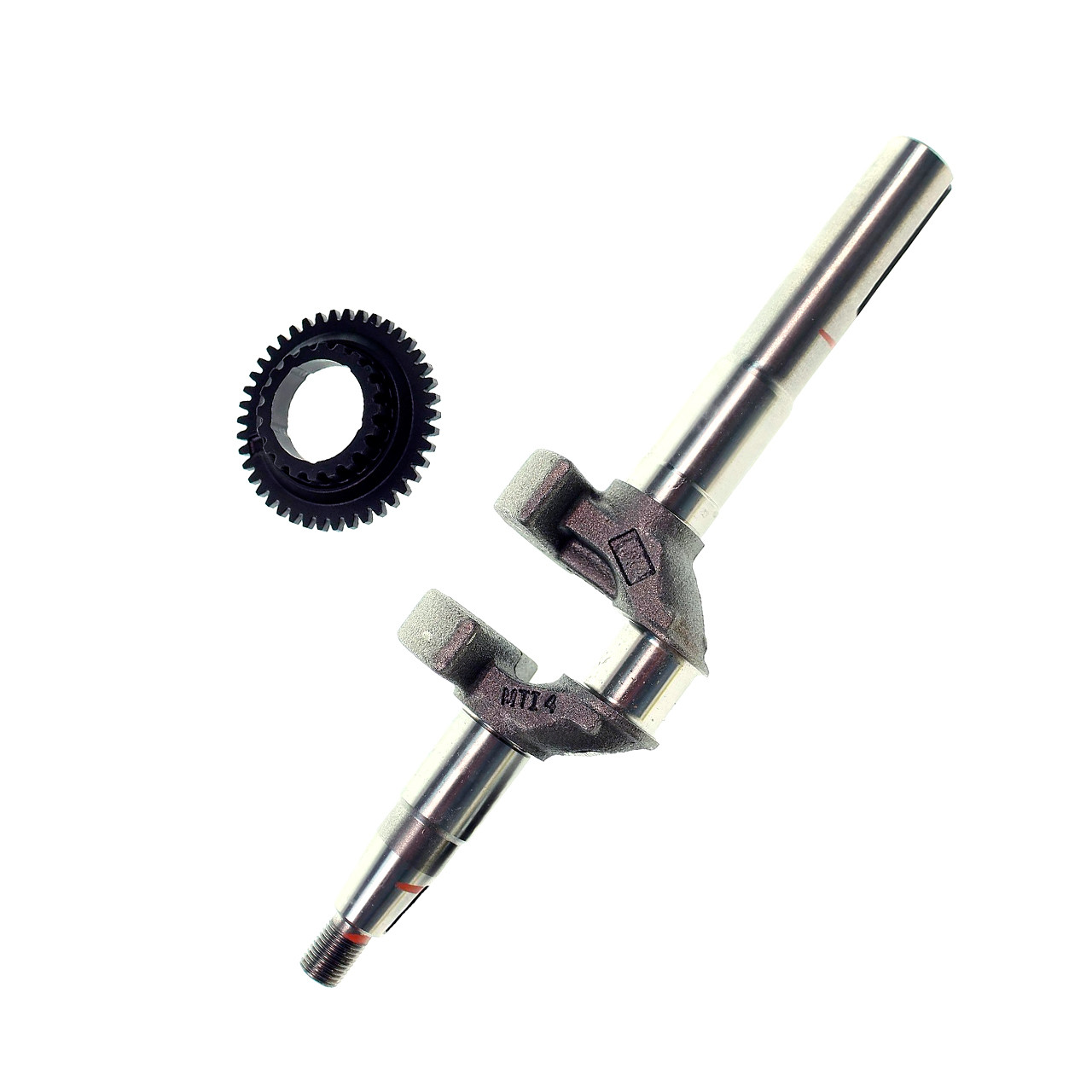

Honda 06131-Z8B-W20 Crankshaft

Product Overview:

A lawn mower engine depends on a crankshaft to convert piston movement into the continuous rotation required by its mechanical output. The Honda 06131-Z8B-W20 Lawn Mower Crankshaft is an OEM part that performs this reciprocating-to-rotary motion conversion within the compatible engine assembly.

Reciprocating Force Conversion:

The crankshaft receives force from the piston through the connecting mechanism and converts the piston's reciprocating movement into rotation. Its crank geometry offsets the piston connection from the shaft's rotational center, causing the shaft to turn as the piston moves through its stroke. This continuous conversion produces the rotary motion required at the engine's output shaft.

Engine Output Transmission:

The Crankshaft carries the rotational motion produced by the piston-driven mechanism through the engine’s internal drive arrangement to the designated output connection. This allows the crankshaft’s rotary motion to be transmitted to connected mower components as part of the engine’s mechanical output.

Replacement Guidelines:

Replacement is recommended when the Honda 06131-Z8B-W20 is bent, cracked, excessively worn, or otherwise damaged in a way that affects its intended position or rotational function within the engine assembly. Damage to bearing-contact or connection surfaces may also warrant replacement when it compromises the crankshaft’s mechanical operation. Before purchasing, confirm that part number 06131-Z8B-W20 matches the exact engine model and applicable manufacturer parts documentation.

Common Signs of Wear:

• Visible bending or distortion of the crankshaft.
• Scoring or damage on rotating or bearing-contact surfaces.
• Excessive wear at bearing contact areas.
• Cracks or fractures in the crankshaft.
• Excessive movement or play within the engine assembly.

Equipment Compatibility:

The Honda 06131-Z8B-W20 Lawn Mower Crankshaft is intended for compatible Honda small-engine applications used in lawn mower equipment. Compatibility can vary by specific engine version and production range. Verify that part number 06131-Z8B-W20 and the complete engine model information match the applicable manufacturer parts documentation before purchasing.

The Honda 06131-Z8B-W20 Crankshaft provides efficient power transfer within suitable lawn mower engines. Proper crankshaft condition maintains reliable engine operation and smooth blade operations.

This Part Fixes the Following Issues:

• Engine shakes while running.

• Uneven blade rotation.

• Metallic engine knocking.

• Engine binds during rotation.

• Visible crankshaft damage.

Engine Shakes While Running

Quick Check: Inspect the crankshaft thoroughly for bends caused by striking solid objects during mowing.

Fix Suggestion: Verify crankshaft runout and replace it only when measurements exceed service specifications.

Prevention Tip: Walk the mowing area first to remove rocks, branches, and hidden debris.

Uneven Blade Rotation

Quick Check: Examine the crankshaft end where the blade adapter attaches for visible damage.

Fix Suggestion: Inspect the blade adapter and tighten mounting hardware before replacing worn components.

Prevention Tip: Check blade mounting hardware after every heavy mowing session or accidental impact.

Metallic Engine Knocking

Quick Check: Listen carefully while rotating the engine to identify abnormal internal mechanical sounds.

Fix Suggestion: Inspect connecting engine components before diagnosing the crankshaft as the primary problem.

Prevention Tip: Replace engine oil regularly to reduce friction between moving internal engine parts.

Engine Binds During Rotation

Quick Check: Inspect internal engine components preventing smooth crankshaft movement during manual engine rotation.

Fix Suggestion: Remove internal obstructions before replacing components that remain damaged after careful inspection.

Prevention Tip: Keep contaminants away from internal engine parts during maintenance and repair procedures.

Customer Experience: My Honda mower started vibrating badly and making a knocking sound mid-season. Replaced the crankshaft and the engine runs smooth and quiet.

• What is the primary function of the Honda 06131-Z8B-W20 crankshaft?

  The Honda 06131-Z8B-W20 converts the piston’s reciprocating movement into rotary motion within the engine, providing the mechanical rotation required for engine operation. .

• Where does the crankshaft operate within the engine?

  The crankshaft operates within the engine’s internal rotating assembly and works with the piston and associated components to convert combustion-driven movement into rotation.

• What conditions can indicate that the Honda 06131-Z8B-W20 crankshaft needs replacement?

  Bending, cracks or fractures, scoring on rotating or bearing-contact surfaces, excessive wear, or excessive movement within the engine assembly can indicate that the Honda 06131-Z8B-W20 may need replacement.

• Can crankshaft condition affect engine operation?

  Yes. Because the crankshaft is responsible for converting piston movement into rotation, damage or excessive wear can interfere with the engine’s internal mechanical movement.

• How can I verify that Honda 06131-Z8B-W20 is the correct crankshaft for my engine?

  Verify that part number 06131-Z8B-W20 and the complete engine model information match the applicable Honda parts documentation before purchasing, as crankshaft compatibility can vary between engine configurations.
