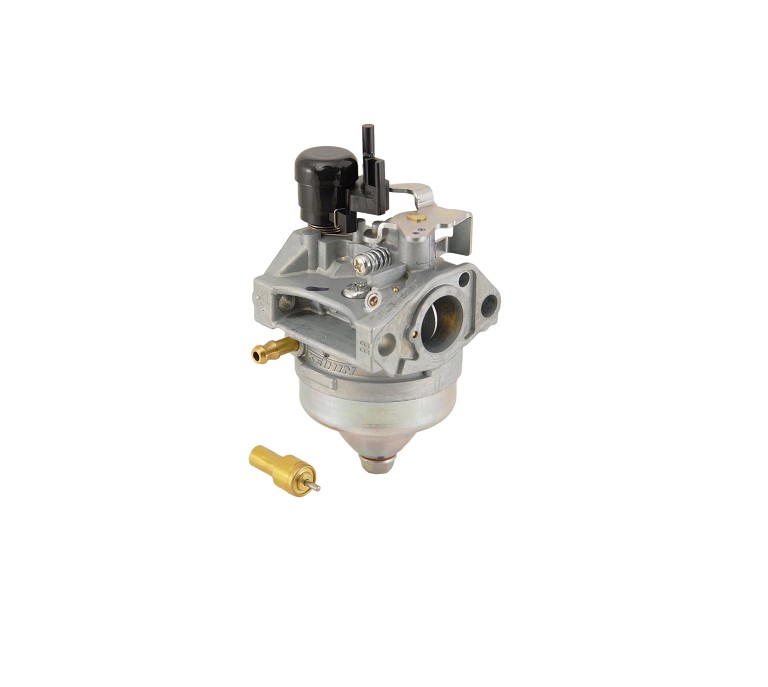

Honda 06161-Z0L-315 Carburetor Assembly BB65E A

This Honda 06161-Z0L-315 carburetor assembly is used in Honda small engine fuel systems where air-fuel mixing and throttle response are controlled through internal jets, float regulation, and inlet valves. When faults occur, they typically impact combustion stability and fuel delivery consistency.

Common Symptoms:

• Engine hard to start or requires multiple pulls.

• Rough or uneven idling on Honda small engines.

• Engine stalling shortly after startup.

• Fuel leakage around carburetor body.

• Poor acceleration or loss of power under load.

Engine Hard Starting or No Start Condition

Quick Check: Inspect fuel flow into the carburetor bowl and check for clogged inlet jet.

Fix Suggestion: Clean or replace the carburetor assembly if internal jets are blocked or worn.

Prevention Tip: Use clean, fresh fuel and avoid leaving fuel in the tank for long storage periods.

Fuel Overflow or Leakage from Carburetor Body

Quick Check: Check float movement inside the Honda 06161-Z0L-315 carburetor assembly.

Fix Suggestion: Replace needle valve or install a new carburetor assembly if sealing is damaged.

Prevention Tip: Regularly inspect fuel quality to prevent varnish buildup on float components.

Rough Idling or Engine Surging

Quick Check: Observe idle stability when engine is warm and throttle is steady.

Fix Suggestion: Adjust idle mixture or replace clogged idle jet within the carburetor assembly.

Prevention Tip: Periodically clean carburetor passages to prevent carbon buildup

Loss of Power Under Load

Quick Check: Test engine response when engaging cutting or load equipment.

Fix Suggestion: Replace or rebuild carburetor assembly if fuel-air mixture is inconsistent.

Prevention Tip: Ensure air filter is clean to maintain proper airflow balance.

Customer Experience: Many users report that replacing the Honda 06161-Z0L-315 carburetor assembly restored smooth starting behavior after repeated flooding issues. Others noticed immediate improvement in idle stability and throttle response after installation, especially on older equipment that had been sitting unused.

• Is the Honda 06161-Z0L-315 Carburetor Assembly BB65E A compatible with all Honda small engines?

  No. This carburetor assembly is intended for specific Honda engine models and equipment applications. Matching the engine model number and original carburetor specification is recommended before installation.

• Why is my carburetor assembly causing the engine to stall?

  Engine stalling is often caused by fuel flow restriction, dirty jets, or internal wear in the carburetor assembly. In most cases, replacing or properly cleaning the unit resolves inconsistent fuel delivery.

• Can I install the Honda carburetor assembly myself?

  It can typically be replaced using basic hand tools. Ensure the fuel supply is disconnected, the old unit is removed carefully, and all gaskets are properly aligned during installation for safe operation.

• What is the main function of the Honda 06161-Z0L-315 Carburetor Assembly BB65E A?

  Its primary role is to mix air and the fuel in correct ratio for combustion, ensuring smooth engine start-up, stable idle, and efficient performance under varying load conditions.
