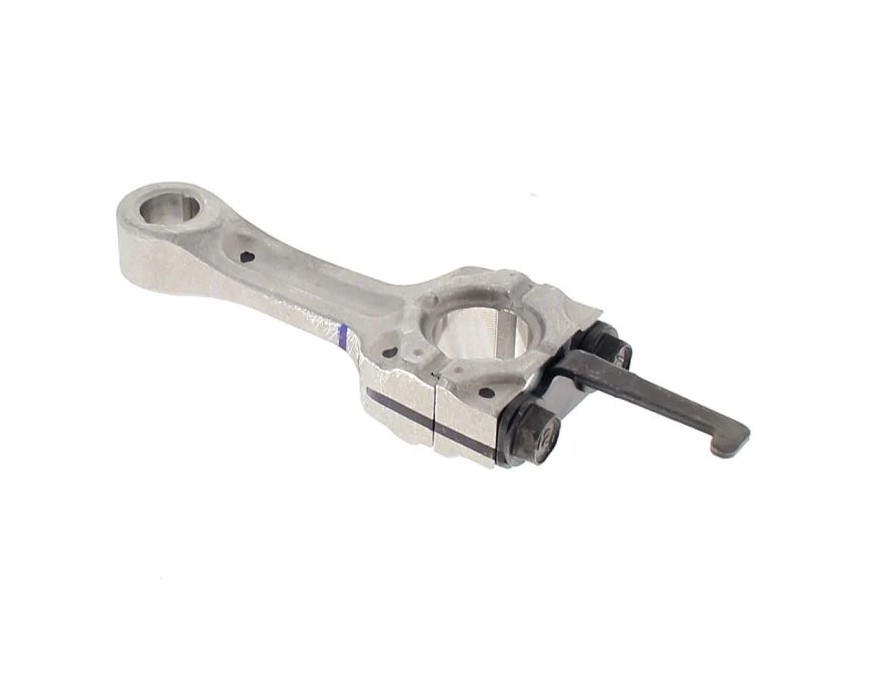

Honda 13200-ZM7-800 Connecting Rod Assembly

The Honda 13200-ZM7-800 Connecting Rod Assembly transfers piston force to the crankshaft for smooth engine operation. Internal wear or mechanical stress can reduce engine efficiency and effect extended durability.

Common Issues:

• Connecting rod bearing clearance exceeds specification.

• Connecting rod becomes distorted under heavy stress.

• Bearing journal shows abnormal wear patterns.

• Connecting rod experiences excessive heat buildup.

• Rod cap fasteners lose proper clamping force.

Connecting Rod Bearing Overclearance

Quick Check: Listen for a repetitive knocking sound that increases with engine speed and inspect bearing clearance during engine disassembly.

Fix Suggestion: Measure the bearing clearance, inspect the crankshaft journal for wear, and verify the connecting rod remains within service specifications.

Prevention Tip: Maintain the correct engine oil level and follow recommended oil change intervals.

Rod Distortion From Heavy Stress

Quick Check: Inspect the connecting rod for signs of bending or twisting after an engine seizure or sudden impact.

Fix Suggestion: Check the piston, crankshaft, and connecting rod for alignment and correct any related internal damage before reassembly.

Prevention Tip: Avoid operating the engine after striking solid objects or experiencing sudden engine lockup.

Bearing Journal Abnormal Wear

Quick Check: Examine the bearing journal for scoring, discoloration, or uneven contact surfaces.

Fix Suggestion: Clean all internal components, inspect lubrication passages, and verify proper journal condition before engine assembly.

Prevention Tip: Use clean engine oil of the recommended viscosity and replace it at scheduled intervals.

Rod Cap Fastener Looseness

Quick Check: Inspect the connecting rod cap for movement and verify fastener torque during engine service.

Fix Suggestion: Tighten the fasteners according to Honda engine specifications and inspect the rod cap mating surfaces for damage.

Prevention Tip: Follow the specified torque sequence whenever the connecting rod is serviced.

Customer Experience: After installing the Honda 13200-ZM7-800 Connecting Rod Assembly, the engine operated smoothly with quieter performance and consistent power throughout extended mowing sessions.
