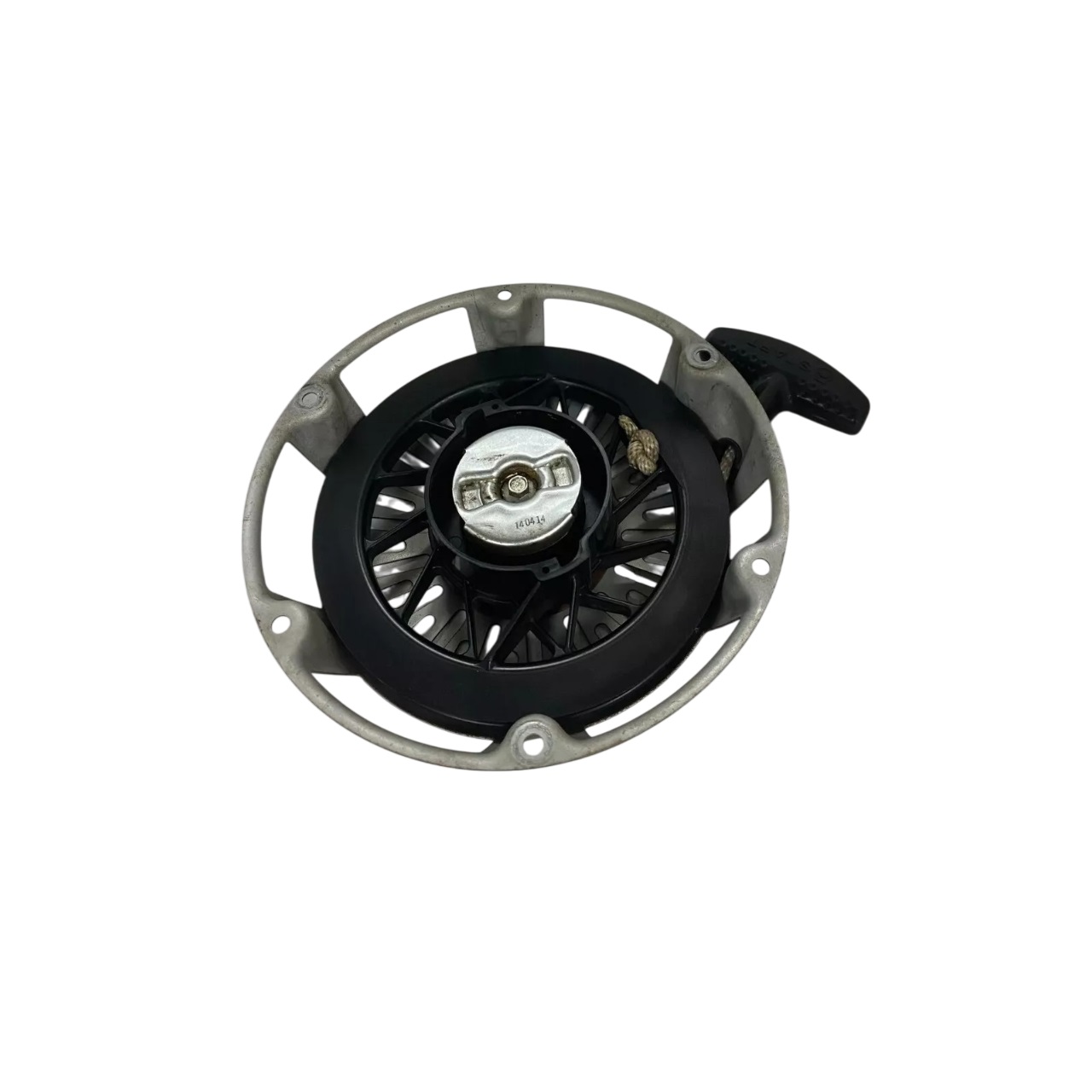

Honda 28400-Z37-003 Starter Assembly., Recoil

The Honda 28400-Z37-003 Recoil Starter Assembly provides stable manual engine starting for suitable lawn mower engines. Inspect the recoil starter if the pull cord sticks, slips, or fails to engage the flywheel.

Common Issues:

• Starter rope does not retract completely.

• Pull cord slips without turning the engine.

• Recoil spring loses tension.

• Starter handle feels unusually difficult to pull.

• Starter pawls fail to engage the flywheel.

Starter Rope Does Not Retract

Quick Check: Inspect the starter rope for fraying or tangling inside the pulley housing.

Fix Suggestion: Untangle the rope and verify it moves freely around the recoil pulley.

Prevention Tip: Pull the starter rope smoothly without allowing it to snap back.

Pull Cord Slips Without Turning The Engine

Quick Check: Examine the starter pawls for dirt or restricted movement.

Fix Suggestion: Clean the pawl mechanism and ensure it extends freely during pulling.

Prevention Tip: Keep grass clippings and debris away from the recoil starter housing.

Recoil Spring Loses Tension

Quick Check: Check whether the recoil spring returns the rope with consistent tension.

Fix Suggestion: Inspect the spring for damage and reseat it if it has shifted. Replace only if broken.

Prevention Tip: Avoid pulling the rope beyond its maximum travel.

Starter Handle Feels Difficult To Pull

Quick Check: Inspect the recoil pulley for binding or debris inside the housing.

Fix Suggestion: Remove accumulated debris and verify the pulley rotates smoothly.

Prevention Tip: Clean the recoil starter housing during seasonal maintenance.

Customer Experience: After installing the Honda 28400-Z37-003 Starter Assembly, Recoil, the pull cord operated smoothly, engaged consistently, and the equipment started with much less effort.
