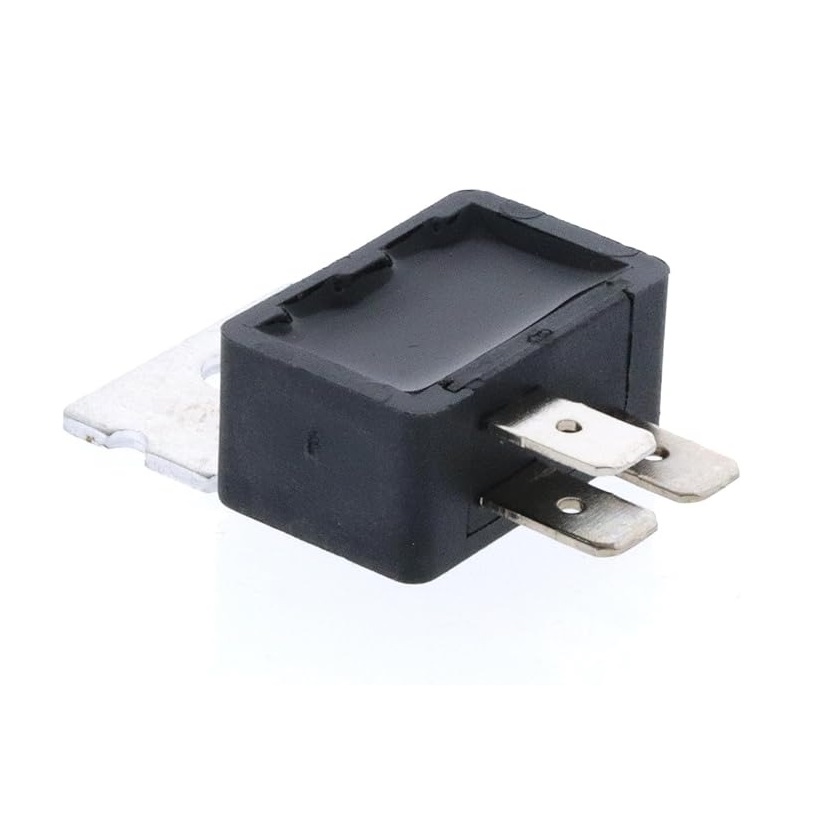

Honda 31720-ZA8-013 Lawn Mower D.C Diode

The Honda 31720-ZA8-013 Lawn Mower D.C Diode regulate electrical current within the mower's charging system, protecting sensitive electrical components. A damaged diode can interrupt current flow and electrical operation issues.

This part helps address the following symptoms:

• Battery not charging during operation.

• Intermittent charging system output.

• Electrical current flowing incorrectly.

• Charging circuit malfunction.

• Unstable battery voltage readings.

Battery Not Charging

Quick Check: Battery voltage remains unchanged while engine keeps running.

Fix Suggestion: Test charging circuit and reconnect damaged electrical wiring properly.

Prevention Tip: Keep charging connections clean and protected from moisture buildup.

Unstable Battery Voltage

Quick Check: Voltage fluctuates noticeably during engine speed changes.

Fix Suggestion: Measure diode output using appropriate electrical testing equipment carefully.

Prevention Tip: Avoid operating mower with loose charging system connections regularly.

Charging Circuit Malfunction

Quick Check: Charging indicator behaves abnormally during normal mower operation.

Fix Suggestion: Restore damaged circuit connections following manufacturer wiring diagram accurately.

Prevention Tip: Secure wiring harnesses away from excessive engine vibration continuously.

Incorrect Electrical Current Flow

Quick Check: Electrical accessories receive inconsistent power during engine operation.

Fix Suggestion: Correct faulty electrical routing affecting diode current direction safely.

Prevention Tip: Inspect wiring insulation regularly for wear and accidental damage.

Customer Experience: Once fitting this D.C. diode, the charging system worked normally again, and the battery maintained its charge throughout mowing.
