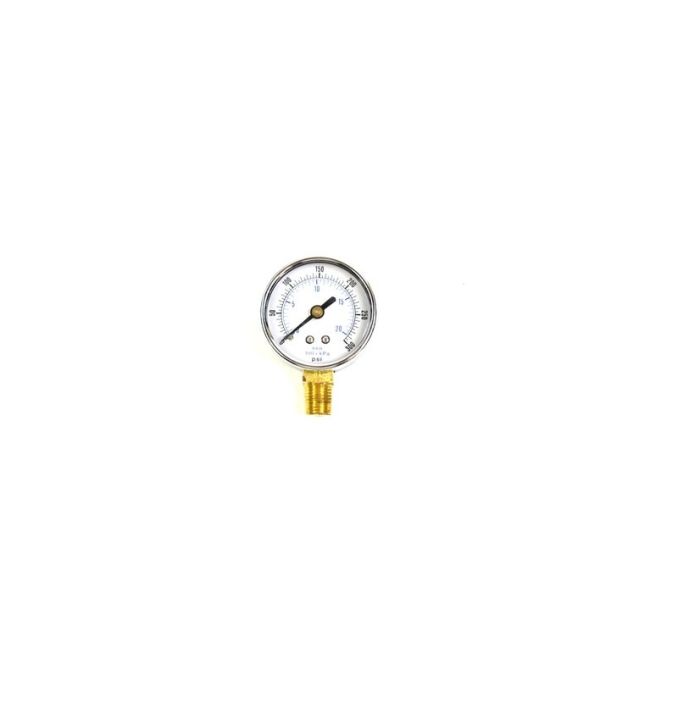

Ingersoll Rand 32499816 Air Compressor Gauge

The Ingersoll Rand 32499816 Air Compressor Gauge is an OEM pressure monitoring component commonly used on compatible Ingersoll Rand T30-style air compressors. This gauge typically features a 0–300 PSI range with 1/4"" NPT threads for accurate compressor pressure readings and system monitoring.

Common Issues with This SKU:

• Pressure gauge showing incorrect PSI readings.

• Gauge needle vibrating excessively during operation.

• Gauge stuck at zero pressure.

• Air leaking around gauge threads.

• Cracked or fogged gauge lens reducing visibility.

Incorrect Pressure Reading

Quick Check: Compare the displayed PSI with a secondary calibrated compressor gauge.

Fix Suggestion: Inspect the Ingersoll Rand 32499816 gauge for internal wear or calibration drift, Replace the gauge if readings remain inconsistent after reinstalling.

Prevention Tip: Avoid exposing the gauge to excessive vibration or sudden pressure spikes during compressor operation.

Gauge Needle Vibrating or Fluttering

Quick Check: Observe the needle movement while the compressor cycles on and off.

Fix Suggestion: Check for pulsation in the air line or loose mounting threads, Install vibration dampening fittings if excessive compressor vibration exists.

Prevention Tip: Secure the compressor manifold properly and inspect mounting points regularly.

Gauge Not Moving from Zero

Quick Check: Verify pressure exists inside the tank using another test gauge.

Fix Suggestion: Remove the gauge and inspect for clogged inlet threads or internal mechanical failure, Replace the unit if the bourdon tube mechanism is damaged.

Prevention Tip: Keep moisture and debris out of the pressure system with routine air line maintenance.

Air Leak Around Gauge Threads

Quick Check: Apply leak-detection solution around the threaded fitting while pressurized.

Fix Suggestion: Remove the gauge and apply fresh PTFE tape or thread sealant before reinstalling, Ensure the 1/4" NPT threads are not cross-threaded or damaged.

Prevention Tip: Avoid over-tightening the gauge during installation to protect the threads and housing.

Customer Experience: Many users replacing worn gauges with the Ingersoll Rand 32499816 report improved pressure accuracy and easier compressor monitoring. Some technicians mention the OEM thread fitment simplifies installation on T30-style compressor manifolds, while workshop owners appreciate the clear 0–300 PSI dial visibility during daily operation.
