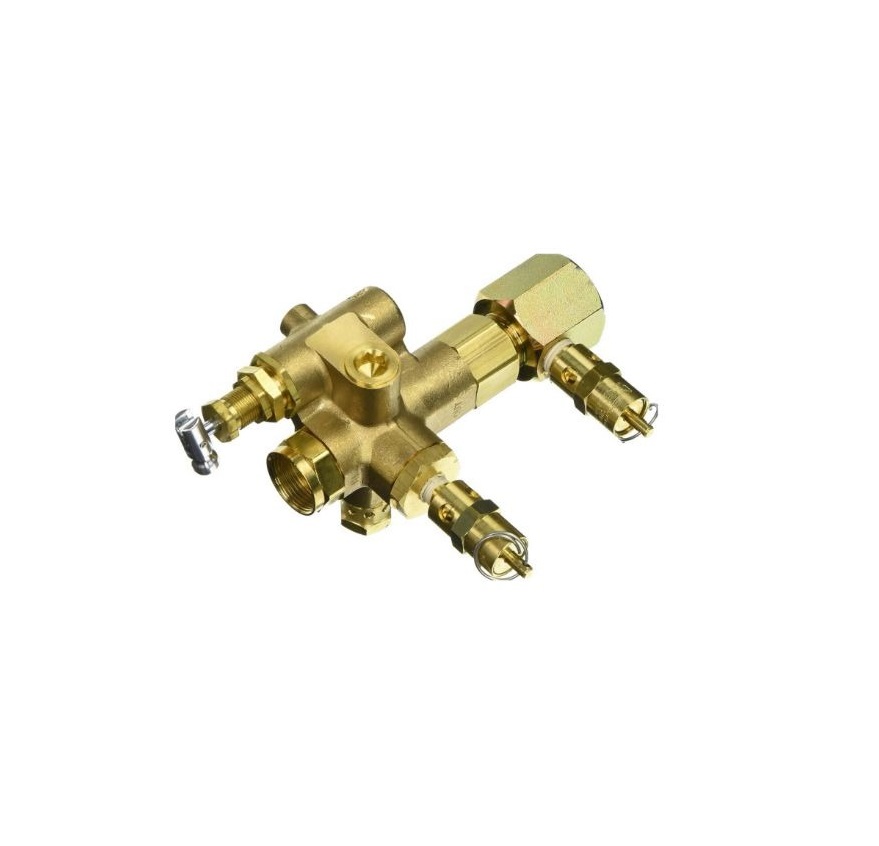

Ingersoll Rand 49816283 Air Compressor Auxiliary Valve W/Safety Relief Valves

The Ingersoll Rand 49816283 Air Compressor Auxiliary Valve W/Safety Relief Valves is a combined control component used in compressor systems to manage airflow regulation while also providing integrated safety pressure relief protection. This assembly plays a key role in stabilizing pressure transitions and protecting the compressor during abnormal pressure conditions.

Common Issues This Part Helps Address:

• Compressor over-pressurization triggering safety shutdowns.

• Irregular or unstable pressure regulation during load cycles.

• Air leakage from auxiliary valve housing.

• Safety relief valve premature or inconsistent activation.

• Compressor failing to unload properly after reaching cut-out pressure.

Premature Safety Relief Valve Activation

Quick Check: Observe whether air is releasing through the safety port before reaching normal operating pressure.

Fix Suggestion: Inspect the relief valve spring calibration and contamination inside the valve seat, replace the assembly if repeated early venting occurs.

Prevention Tip: Maintain clean air pathways and ensure compressor cut-out settings are correctly calibrated.

Compressor Fails to Unload at Cut-Out Pressure

Quick Check: Monitor whether the compressor continues building pressure past normal shutoff range.

Fix Suggestion: Check for sticking internal valve mechanisms or debris inside the auxiliary valve assembly and replace if sticking persists.

Prevention Tip: Install proper intake filtration to reduce particulate buildup inside control valves.

Air Leakage from Valve Body or Connections

Quick Check: Apply leak detection solution around fittings and valve seams during operation.

Fix Suggestion: Tighten threaded connections carefully and replace damaged sealing components or the full valve assembly if housing integrity is compromised.

Prevention Tip: Avoid over-torquing fittings during installation, which can distort sealing surfaces.

Fluctuating or Unstable System Pressure

Quick Check: Watch pressure gauge behavior during compressor cycling for irregular spikes or drops.

Fix Suggestion: Inspect internal valve diaphragm and auxiliary control pathways for wear or blockage and replace the valve if pressure regulation is inconsistent.

Prevention Tip: Perform scheduled compressor maintenance to ensure stable load/unload cycling.

Customer Experience: After replacing the 49812324 pump-to-unloader tube on my SS3 wheelbarrow compressor, the air leak disappeared, and the compressor restarted much more smoothly, installation was straightforward and the fit matched perfectly.

• Is the Ingersoll Rand 49816283 auxiliary valve compatible with all Ingersoll Rand compressors?

  No. Compatibility varies by model and configuration. Always verify the compressor model number and parts diagram before purchasing to ensure proper fitment.

• What happens when this auxiliary valve starts failing?

  A failing unit may cause unstable pressure control, premature safety relief activation, air leakage at the valve body, or failure of the compressor to properly unload when reaching cut-out pressure.

• Can I replace the Ingersoll Rand 49816283 valve myself?

  Replacement is typically possible with standard mechanical tools, provided the compressor is fully depressurized and powered off. Correct alignment and sealing are critical to ensure safe operation after installation.

• What is the main function of this auxiliary valve with safety relief system?

  It regulates airflow and pressure transitions within the compressor while also providing an integrated safety relief mechanism to prevent over-pressurization, ensuring stable performance and protecting internal compressor components.
