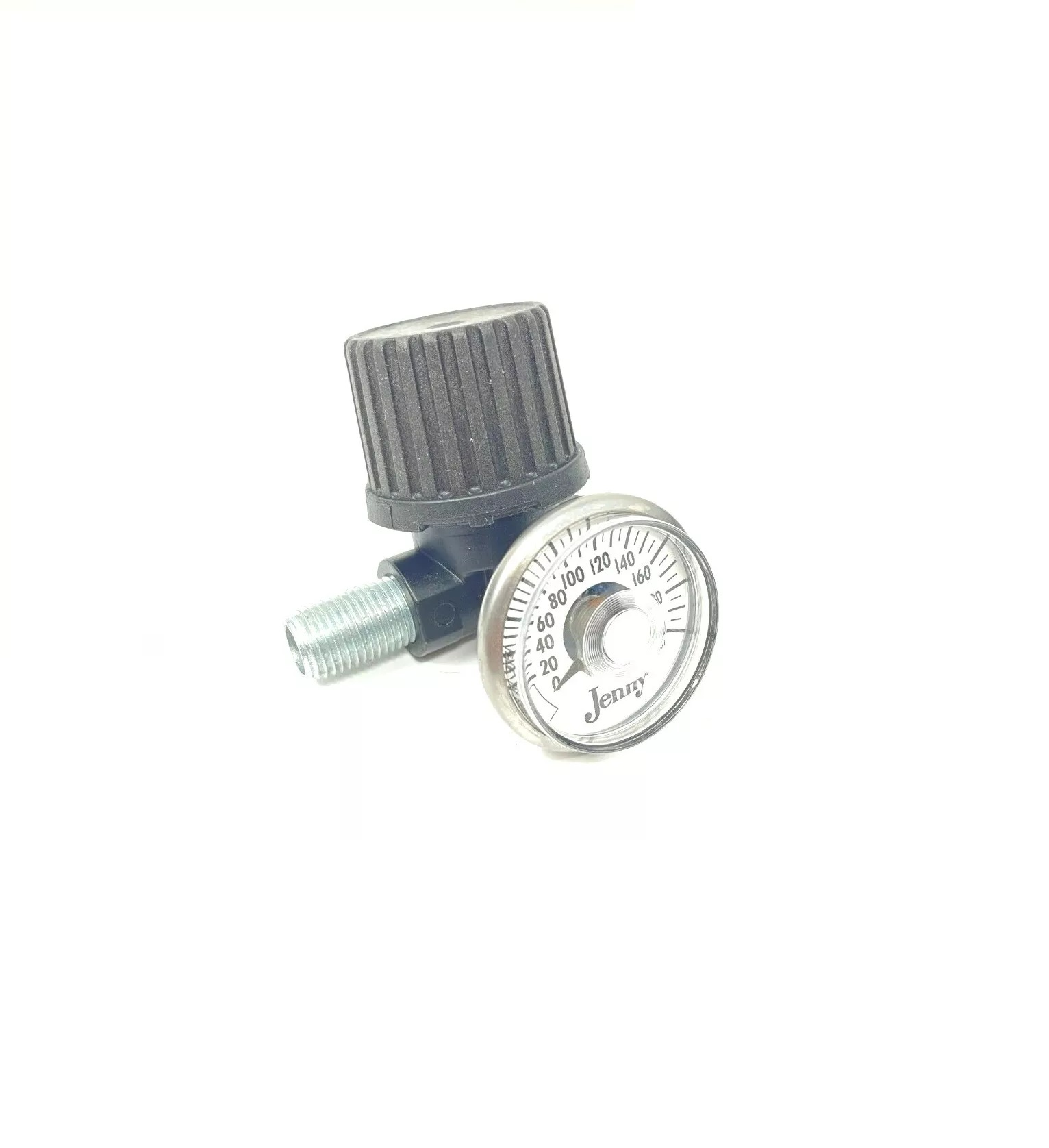

Jenny 360-1108 Air Compressor Pressure Regulator

The Jenny 360-1108 Air Compressor Pressure Regulator manages the level of compressed air flowing from the tank toward attached pneumatic applications. Damaged adjustment components, internal sealing wear, or blocked airflow passages may cause uneven pressure control and irregular air delivery.

Common Symptoms:

• Air pressure will not adjust correctly.

• Regulator knob feels stuck or difficult to turn.

• Compressor output pressure fluctuates during use.

• Air leak detected near the regulator body.

• Low downstream pressure reaching air tools.

Pressure Will Not Adjust

Quick Check: Verify the regulator adjustment knob turns freely and is not locked in place.

Fix Suggestion: Inspect the internal diaphragm and spring assembly for wear or debris buildup. Replace the regulator if pressure remains fixed after adjustment.

Prevention Tip: Keep moisture and compressor contaminants out of the airline by draining the tank regularly and using an inline filter.

Air Leaking Around the Regulator

Quick Check: Listen for hissing around the threaded fittings or regulator housing while the compressor is pressurized.

Fix Suggestion: Tighten fittings with thread sealant or replace damaged O-rings if leakage continues around the Jenny regulator body.

Prevention Tip: Avoid overtightening fittings during installation to prevent cracks or seal damage.

Inconsistent Outlet Pressure

Quick Check: Monitor the outlet PSI while cycling air tools to see if pressure spikes or drops unexpectedly.

Fix Suggestion: Clean the regulator passages and inspect for internal wear that may restrict airflow or cause unstable regulation.

Prevention Tip: Use clean, dry compressed air and avoid exceeding the regulator’s rated pressure range.

Regulator Knob Difficult to Turn

Quick Check: Check for dirt, rust, or compressor residue around the adjustment mechanism.

Fix Suggestion: Remove external debris and apply light pneumatic-safe lubrication if the adjustment stem feels seized.

Prevention Tip: Store the compressor in a dry area to minimize corrosion around moving regulator components.

Customer Experience: After replacing the worn regulator with the Jenny 360-1108 Air Compressor Pressure Regulator, many noticed steadier pressure adjustment and smoother airflow during regular shop use.

• Is the Jenny 360-1108 Air Compressor Pressure Regulator compatible with all Jenny air compressors?

  The Jenny 360-1108 Air Compressor Pressure Regulator is designed for specific Jenny air compressor configurations and pressure control systems. Compatibility depends on the compressor model, port size, and PSI requirements. Always compare the original regulator specifications before installation.

• Why is my pressure regulator not controlling air pressure properly?

  Improper pressure control can occur due to internal diaphragm wear, debris inside the regulator, air leaks, or damaged adjustment components. Inspect the regulator for contamination or worn seals if outlet pressure cannot be adjusted accurately.

• Can I install the Jenny 360-1108 Air Compressor Pressure Regulator myself?

  Many users can replace the regulator using basic hand tools. Before installation, disconnect power, release tank pressure completely, and verify fitting sizes. Applying thread sealant to air connections can help prevent leaks after installation.

• What does the Air Compressor Pressure Regulator do?

  The regulator controls and stabilizes the outgoing air pressure from the compressor tank to connected air tools or pneumatic equipment. It helps maintain consistent PSI levels for safer operation and improved tool performance.
