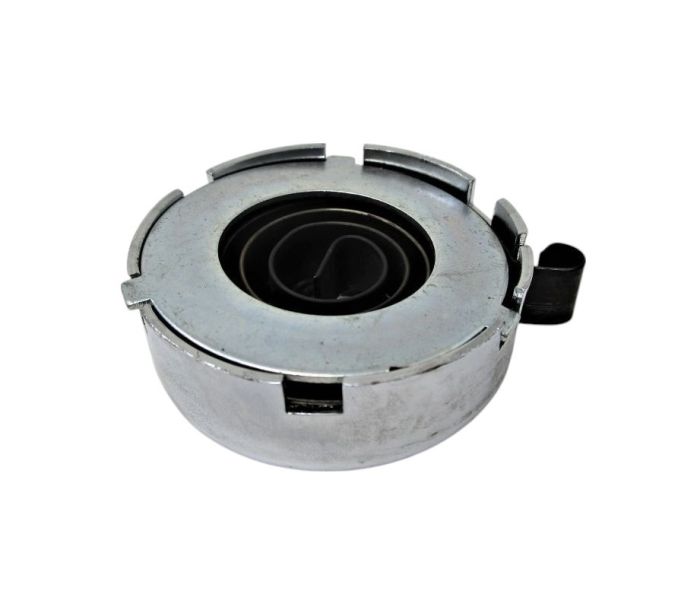

Jet JDP17-141RB Coil Spring Assembly 142 Thru 144 JDP-17

Product Overview:

Positioned within the headstock assembly of the drill press, the JET JDP17-141RB Coil Spring Assembly 142 Thru 144 JDP-17 provides stored mechanical force to support controlled movement of the drill press quill and spindle mechanism. This OEM part works with the related spring housing and retainer to support the intended spring-loaded operation of the drill press control system.

Mechanical Actuation:

The coil spring assembly provides stored mechanical force within the drill press headstock, supporting the controlled movement of the associated quill and spindle mechanism. Its spring action works with the surrounding spring housing and retainer as part of the mechanical actuation system, providing the force required for the intended movement of the related parts.

Spring-Loaded Motion Support:

The coil spring assembly works within the headstock mechanism alongside the spindle and quill parts to support controlled movement during drill press operation. By maintaining its intended spring force within the assembly, it contributes to the mechanical relationship between the spring-loaded parts and the surrounding spindle-control mechanism.

Replacement Guidelines:

Replacement is recommended when the JET JDP17-141RB Coil Spring Assembly 142 Thru 144 JDP-17 develops physical damage, deformation, loss of spring force, or deterioration that affects its intended mechanical role within the drill press headstock. Replace the assembly if the spring is visibly damaged or deformed, the spring housing or retainer is damaged, or the assembly no longer provides its intended spring force.

Common Signs of Wear:

• Visible deformation or damage to the coil spring.
• Damage to the spring housing.
• Damage or deterioration of the spring retainer.
• Loss or reduction of the spring's intended mechanical action.
• Physical deterioration affecting the assembly's position or operation within the headstock.

Equipment Compatibility:

The JET JDP17-141RB Coil Spring Assembly 142 Thru 144 JDP-17 is documented for compatible JDP-17 drill press applications. This OEM part is listed as a complete assembly incorporating parts 142 through 144. Before purchasing, verify the complete drill press model, applicable serial-number range, and parts documentation to confirm the correct application.

• What does the JET JDP17-141RB Coil Spring Assembly provide?

  The coil spring assembly provides stored mechanical force within the drill press headstock to support controlled movement of the quill and spindle mechanism.

• What parts are included in the JDP17-141RB coil spring assembly?

  The documented assembly includes the coil spring, spring housing, and spring retainer, identified as parts 142 through 144.

• Where is the JDP17-141RB Coil Spring Assembly located?

  The assembly is positioned within the drill press headstock as part of the spring-loaded control mechanism.

• What can indicate that the JET JDP17-141RB Coil Spring Assembly needs replacement?

  Visible damage or deformation, damage to the spring housing or retainer, or loss or reduction of the intended spring force can indicate that replacement is needed.

• What should I verify before purchasing the JDP17-141RB coil spring assembly?

  Verify the complete drill press model, applicable serial-number range, and parts documentation to confirm that the assembly corresponds to the equipment's headstock configuration.
