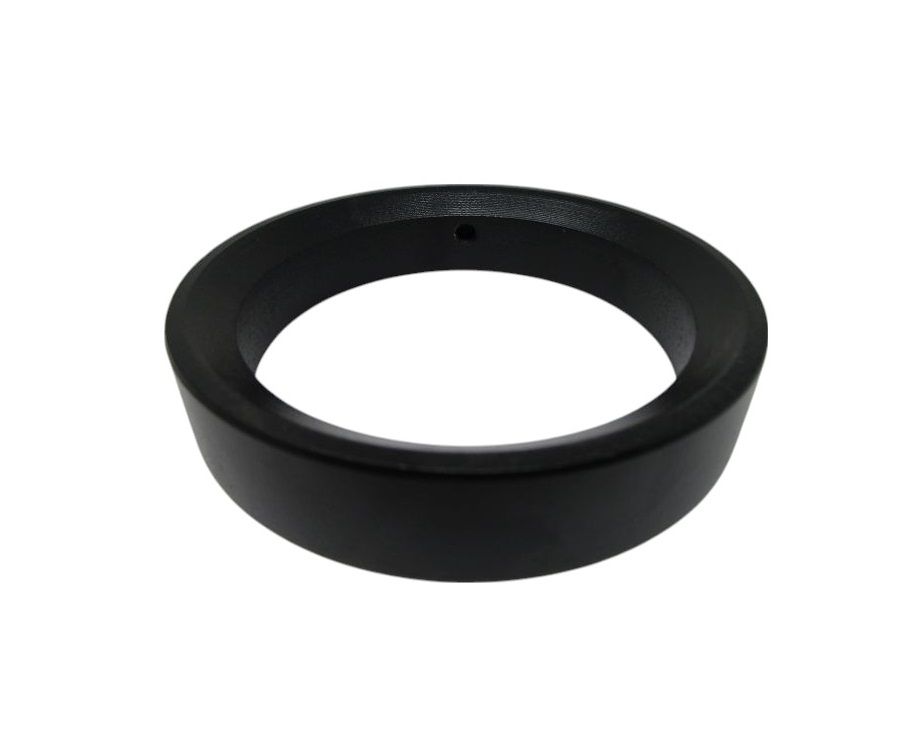

Jet JDP17DX-018 Rack Ring Assembly

The Jet JDP17DX-018 Rack Ring Assembly is an essential drill press component that supports smooth table elevation adjustments. Damage, wear, or improper engagement can lead to positioning difficulties and unstable table movement.

Common Issues:

• Drill press table binds while moving up or down.

• Rack ring teeth are cracked or excessively worn.

• Table adjustment handle turns but table does not move properly.

• Inconsistent table positioning during height adjustments.

• Excessive play in the table lifting mechanism.

Table Binding During Adjustment

Quick Check: Raise and lower the table while listening for grinding or resistance near the rack ring area.

Fix Suggestion: Replace the Jet JDP17DX-018 Rack Ring Assembly if damaged teeth or deformation are restricting movement.

Prevention Tip: Keep the column and rack components clean and lightly maintained.

Table Does Not Respond to Crank Movement

Quick Check: Inspect the rack ring for missing or worn sections that may prevent proper engagement.

Fix Suggestion: Install a replacement rack ring assembly to restore reliable height adjustment operation.

Prevention Tip: Avoid sudden force when adjusting the table position.

Unstable Table Height Position

Quick Check: Verify that the rack ring is securely seated around the column and properly aligned.

Fix Suggestion: Replace worn components that allow unwanted movement in the table support system.

Prevention Tip: Periodically inspect adjustment components for signs of wear.

Worn or Damaged Rack Teeth

Quick Check: Visually inspect the rack ring teeth for chips, rounding, or uneven wear.

Fix Suggestion: Replace the affected assembly to ensure smooth interaction with the table elevation mechanism.

Prevention Tip: Adjust the table gradually and avoid overloading the work surface.

Customer Experience: Customers replacing the Jet JDP17DX-018 Rack Ring Assembly frequently mention improved table control and smoother height adjustments. Many also report eliminating sticking issues that had developed after years of drill press use.
