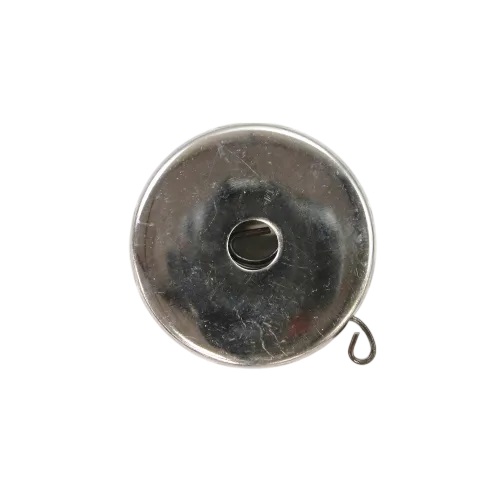

JET JT9-5629071 Drill Press Spring Housing Assembly

Product Overview:

Supports the drill press quill return system by housing the return spring and maintaining its position within the feed mechanism. The JET JT9-5629071 Drill Press Spring Housing Assembly forms part of the quill return arrangement and provides the housing structure associated with controlled spindle retraction.

Return Spring Retention:

The spring housing contains the drill press quill return spring within the feed mechanism. Its housing structure maintains the spring's position as the spring stores and releases mechanical tension during quill movement, supporting the return function of the associated mechanism.

Feed Mechanism Integration:

The spring housing forms part of the drill press head assembly and works with the associated feed mechanism to maintain the relationship between the return spring and connected components. Its position within the assembly supports the controlled movement of the quill return system.

Replacement Guidelines:

Replace the JET JT9-5629071 Drill Press Spring Housing Assembly when structural damage, deformation, cracked areas, worn retention features, or other deterioration affects its ability to contain and position the return spring within the quill return assembly. Inspect the related return spring, feed shaft, retaining components, and surrounding housing areas during replacement for associated damage.

Common Signs of Wear:

• Cracks or fractures in the spring housing.
• Deformed housing or retention areas.
• Worn spring retention features.
• Excessive movement of the housing within the assembly.
• Irregular quill return movement associated with deterioration of the housing.

Equipment Compatibility:

Before purchasing, verify that part number JT9-5629071 matches the required spring housing assembly for the equipment. Confirm the applicable drill press model and manufacturer parts documentation before ordering. Do not assume compatibility based only on the JET brand or general drill press application.

• What should be inspected on the spring housing assembly during maintenance?

  Inspect the housing for damage, deformation, or loss of structural integrity that could affect the return spring's intended position.

• How does the spring housing support the drill press quill return mechanism?

  The housing contains and positions the return spring within the feed mechanism as the spring stores and releases mechanical tension during quill movement.

• Why are the housing's retention features important?

  They help maintain the intended relationship between the housing and the contained return spring within the feed mechanism.

• What can happen if the spring housing becomes damaged or deformed?

  Damage or deformation can affect the housing's ability to maintain the return spring's intended position within the quill return assembly.

• What should be checked before purchasing the JT9-5629071 spring housing assembly?

  Check the part number, return spring, feed shaft, retaining components, surrounding housing areas, and applicable drill press parts documentation against the equipment configuration.
