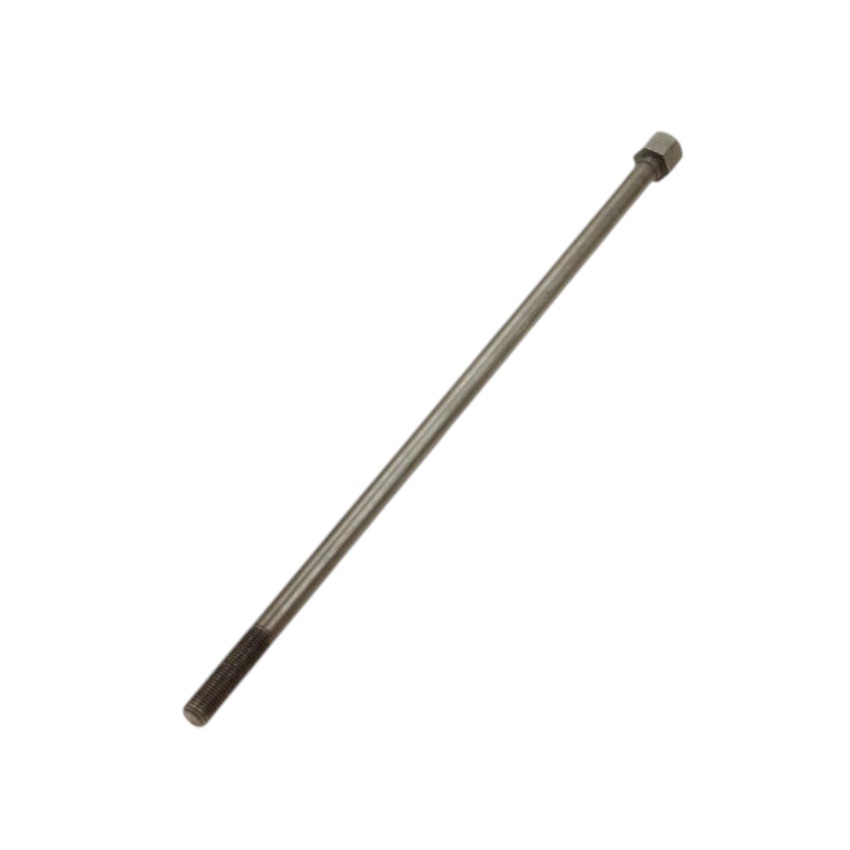

JET JT9-JMD15-001 Draw Bar

Product Overview:

Provides mechanical retention within the spindle assembly for applicable tooling or an arbor. The JET JT9-JMD15-001 Drawbar forms part of the spindle's tooling-retention arrangement, maintaining the intended mechanical connection between the spindle and supported tooling during milling or drilling operations.

Tooling Retention:

The drawbar provides spindle-side retention for the applicable tooling or arbor. Its mechanical function is to maintain the connection between the supported tooling and spindle assembly while the spindle rotates, helping keep the tooling in its intended position during operation.

Spindle Assembly Integration:

The drawbar functions within the spindle and tooling-retention assembly alongside the related spindle components. Its position within this arrangement supports the mechanical relationship between the spindle and supported tooling or arbor during equipment operation.

Replacement Guidelines:

Replace the JET JT9-JMD15-001 Drawbar when physical damage, deformation, thread deterioration, excessive wear, or other deterioration affects its ability to maintain the intended mechanical connection between the spindle and supported tooling or arbor. Inspect the related spindle components and tooling-retention areas during replacement for associated damage that could affect the retention arrangement.

Common Signs of Wear:

• Visible bending or deformation of the drawbar.
• Damaged, worn, or deteriorated threaded areas.
• Excessive physical wear.
• Abnormal looseness within the spindle-retention arrangement.
• Loss of proper mechanical retention of the supported tooling or arbor.
• Physical deterioration affecting the drawbar's securing function.

Equipment Compatibility:

Before purchasing, verify that part number JT9-JMD15-001 matches the required drawbar for the equipment. Confirm the applicable equipment model, spindle assembly, tooling-retention arrangement, and manufacturer parts documentation before ordering. Do not assume compatibility based only on the JET brand or general drawbar application.

• What should be inspected on the drawbar during maintenance?

  Inspect the drawbar for physical wear, damage, deterioration, and conditions around the threaded areas that could affect the intended retention arrangement.

• Why are the threaded areas important to the drawbar's function?

  The threaded areas form part of the mechanical retention arrangement, so deterioration in these areas can affect the drawbar's ability to maintain the intended connection.

• How does the drawbar retain tooling within the spindle assembly?

  The drawbar maintains the mechanical connection between the spindle and supported tooling or arbor, keeping the tooling in its intended position during spindle operation.

• What can abnormal looseness around the drawbar indicate?

  Abnormal looseness can indicate physical wear, damage, or deterioration affecting the drawbar or related spindle-retention arrangement.

• What should be checked before purchasing the JT9-JMD15-001 drawbar?

  Check the part number, spindle assembly, supported tooling or arbor arrangement, threaded areas, and applicable equipment parts documentation.
