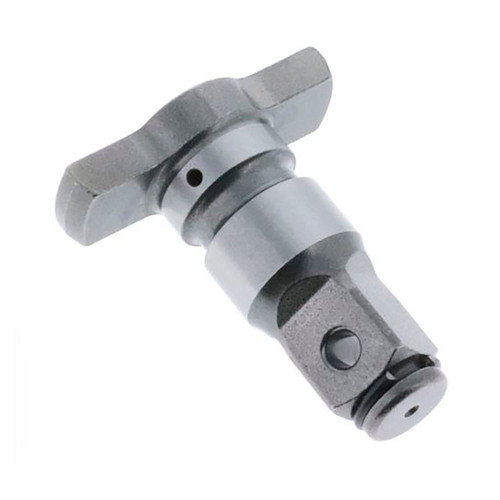

Makita 136223-5 Anvil E Assembly XWT14

The Makita 136223-5 Anvil E Assembly XWT14 is a precision drive component designed for Makita 1/2" impact wrench platforms. It plays a key role in transferring hammer-generated force to the socket, ensuring consistent torque delivery, secure retention, and smooth fastening performance in demanding applications.

Common Symptoms This Part Helps Address:

• Socket slipping during high-torque fastening.

• Reduced impact force or inconsistent driving power.

• Difficulty securing or releasing sockets.

• Noticeable wobble at the drive end during operation.

• Irregular hammering or delayed impact response.

Socket Slippage Under Load

Quick Check: Test socket grip by applying moderate torque and observing any movement or disengagement.

Fix Suggestion: Inspect the anvil drive edges for rounding or wear and replace if retention surfaces are compromised.

Prevention Tip: Use only properly rated impact sockets to reduce premature wear on the drive interface.

Weak or Inconsistent Torque Output

Quick Check: Compare current fastening performance against known baseline tool strength.

Fix Suggestion: Check for internal wear or misalignment within the anvil assembly and replace if torque transfer is inconsistent.

Prevention Tip: Avoid repeated overload fastening that strains internal impact components.

Excessive Play or Wobble at the Drive End

Quick Check: Manually inspect the anvil tip for lateral movement while the tool is powered off.

Fix Suggestion: Replace the anvil assembly if shaft instability or bearing wear is detected.

Prevention Tip: Regularly inspect and clean the drive housing to prevent debris-related wear.

Difficulty in Socket Installation or Removal

Quick Check: Attach and detach sockets to check for excessive friction or sticking.

Fix Suggestion: Examine the retention mechanism inside the anvil and replace if detent components are worn or obstructed.

Prevention Tip: Keep the anvil area free from dust, metal shavings, and jobsite debris.

Customer Experience: Users often report that replacing the anvil assembly restores strong, confident socket locking and noticeably smoother impact delivery. Many note that after replacement, their tool feels “tight again” with improved stability during heavy fastening work on automotive and construction jobs.
