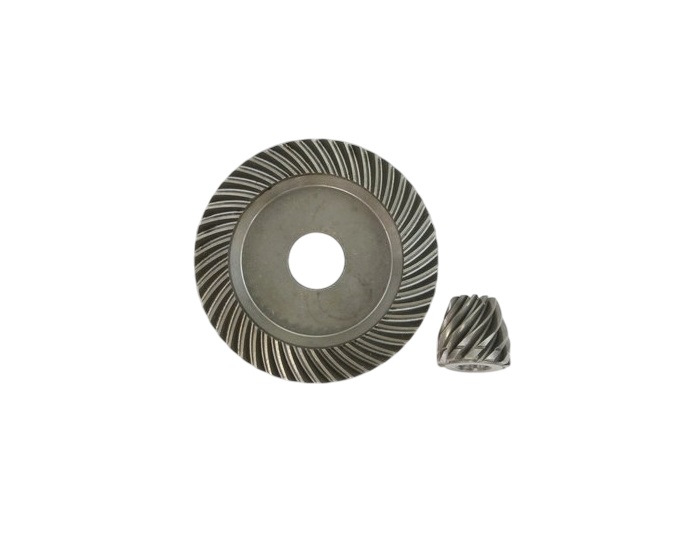

Metabo HPT - Hitachi 316055690 Angle Grinder Bevel Gear W/Pinion 29"

Product Overview:

Provides the mechanical gear connection within the angle grinder's internal transmission system. The Metabo HPT - Hitachi 316055690 Bevel Gear with Pinion transfers rotational movement between connected drive components while maintaining the required gear relationship inside the grinder head. The matched bevel gear and pinion work together to redirect and transmit torque from the motor-driven section toward the output side of the tool.

Gear Transmission and Rotation Transfer:

Transfers rotational force between the motor output and connected drive components through the engagement of the bevel gear and pinion. The gear teeth maintain contact as the assembly rotates, allowing torque to move through the transmission while changing the direction of rotational movement within the grinder head.

Torque Transfer:

Carries rotational torque from one drive component to another through the meshing gear surfaces. The gear assembly must maintain sufficient structural integrity to withstand repeated mechanical loading generated during angle grinder operation.

Replacement Guidelines:

Replacement of the Angle Grinder Bevel Gear W/Pinion if it is cracked, chipped, broken, damaged, excessively worn, or no longer transfers rotation smoothly through the gear assembly. Verify SKU 316055690 before replacement to ensure you select the correct bevel gear with pinion. Replace the gear assembly if deterioration affects alignment, rotation, power transmission, noise or vibration, or normal angle grinder operation.

Common Signs of Wear:

• Worn or damaged gear teeth.
• Chipped, cracked, or broken gear surfaces.
• Excessive scoring or surface deterioration.
• Abnormal grinding or clicking sounds from the grinder head.
• Excessive movement or looseness within the gear assembly.
• Irregular rotation of the grinder output.
• Visible deformation of the bevel gear or pinion.

Equipment Compatibility:

The Metabo HPT - Hitachi 316055690 Angle Grinder Bevel Gear with Pinion is intended for compatible Metabo HPT and Hitachi angle grinder equipment requiring the specified bevel gear and pinion configuration. Compatibility should be confirmed by matching part number 316055690, the complete angle grinder model information, and applicable parts documentation before purchase. Verify the gear and pinion configuration, shaft connection, mounting arrangement, and drive requirements to ensure proper fit, power transmission, and normal angle grinder operation.

• What are common signs of bevel gear wear?

  Common signs include worn or damaged teeth, chipped gear surfaces, scoring, excessive mechanical noise, vibration, irregular rotation, or looseness within the gear assembly.

• What does the 316055690 bevel gear with pinion do?

  It transfers rotational movement between internal drive components through the meshing bevel gear and pinion, supporting the mechanical transmission within the tool.

• What can cause damage to a bevel gear and pinion?

  Repeated mechanical loading, friction, improper alignment, inadequate lubrication, contamination, and normal gear wear can contribute to deterioration.

• How can I identify the correct 316055690 bevel gear and pinion?

  Check the existing part number, angle grinder model, gear assembly specifications, and manufacturer parts documentation to confirm that 316055690 is the correct replacement.

• When should the Metabo HPT – Hitachi 316055690 Bevel Gear W/Pinion be replaced?

  The gear and pinion should be considered for replacement when inspection reveals worn, chipped, cracked, or otherwise damaged gear teeth that may affect normal grinder operation.
