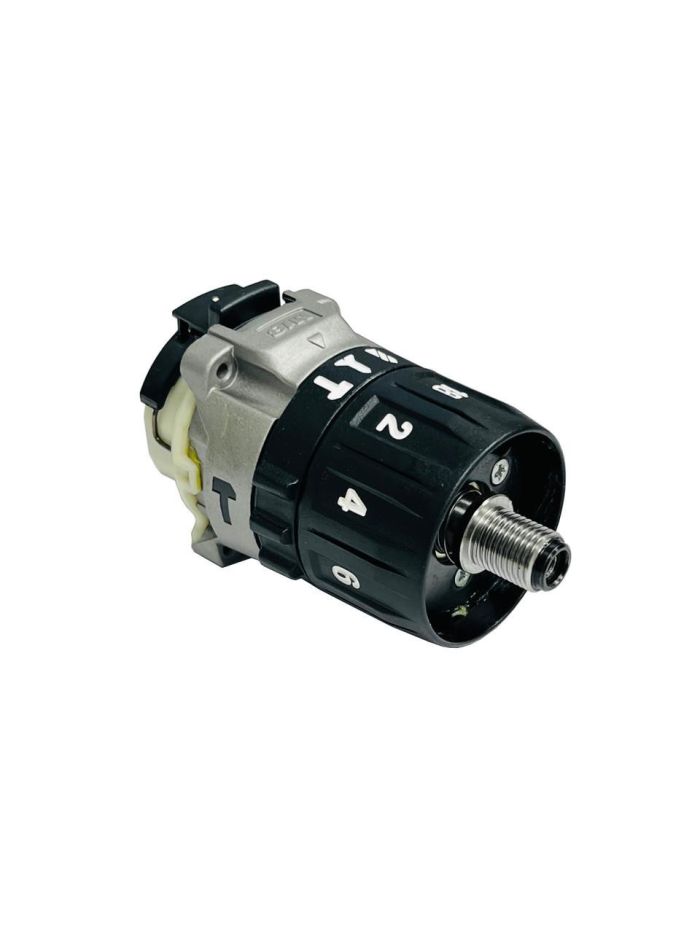

Milwaukee 14-29-2701 Gearbox Assembly

The Milwaukee 14-29-2701 Gearbox Assembly focuses on restoring proper torque transfer, gear engagement, and smooth chuck rotation in compatible Milwaukee cordless drill models when internal drivetrain wear, stripping, or bearing failure begins affecting performance.

This Part Fixes the Following Symptoms:

• Drill motor runs but chuck does not rotate or slips under load.

• Grinding, clicking, or metallic noise from gearbox area during operation.

• Loss of torque transfer causing weak drilling or stalling.

• Excessive vibration or wobble in the chuck during rotation.

• Variable speed function feels inconsistent due to internal gear wear.

Chuck Not Rotating Despite Motor Running

Quick Check: Inspect coupling between motor output shaft and gearbox input spline for stripping or disengagement.

Fix Suggestion: Replace the Milwaukee 14-29-2701 Gearbox Assembly if internal planetary gears or clutch interface are damaged.

Prevention Tip: Avoid repeated stalling under heavy load, which accelerates internal gear failure.

Grinding or Clicking Noise

Quick Check: Rotate chuck manually and listen for rough or uneven resistance inside gearbox.

Fix Suggestion: Install a new gearbox assembly if internal gears or bearings show wear or damage.

Prevention Tip: Keep drill free from dust ingress and avoid impact misuse on drilling mode.

Loss of Torque/Weak Drilling

Quick Check: Test drill under moderate load and observe early stall or slipping behavior.

Fix Suggestion: Replace gearbox assembly if gear reduction system is no longer transferring power efficiently.

Prevention Tip: Use correct speed/torque settings for material hardness to reduce drivetrain stress.

Chuck Wobble or Excess Vibration

Quick Check: Check chuck alignment and observe shaft movement during rotation.

Fix Suggestion: Replace gearbox assembly if internal bearing support is worn or housing is misaligned.

Prevention Tip: Periodically inspect chuck tightness and avoid side-loading the drill bit.

Customer Experience: After replacing the Milwaukee 14-29-2701 Gearbox Assembly, my drill regained full torque and the chuck stopped slipping under pressure, the new gearbox eliminated the grinding noise completely and restored smooth, controlled drilling performance.
