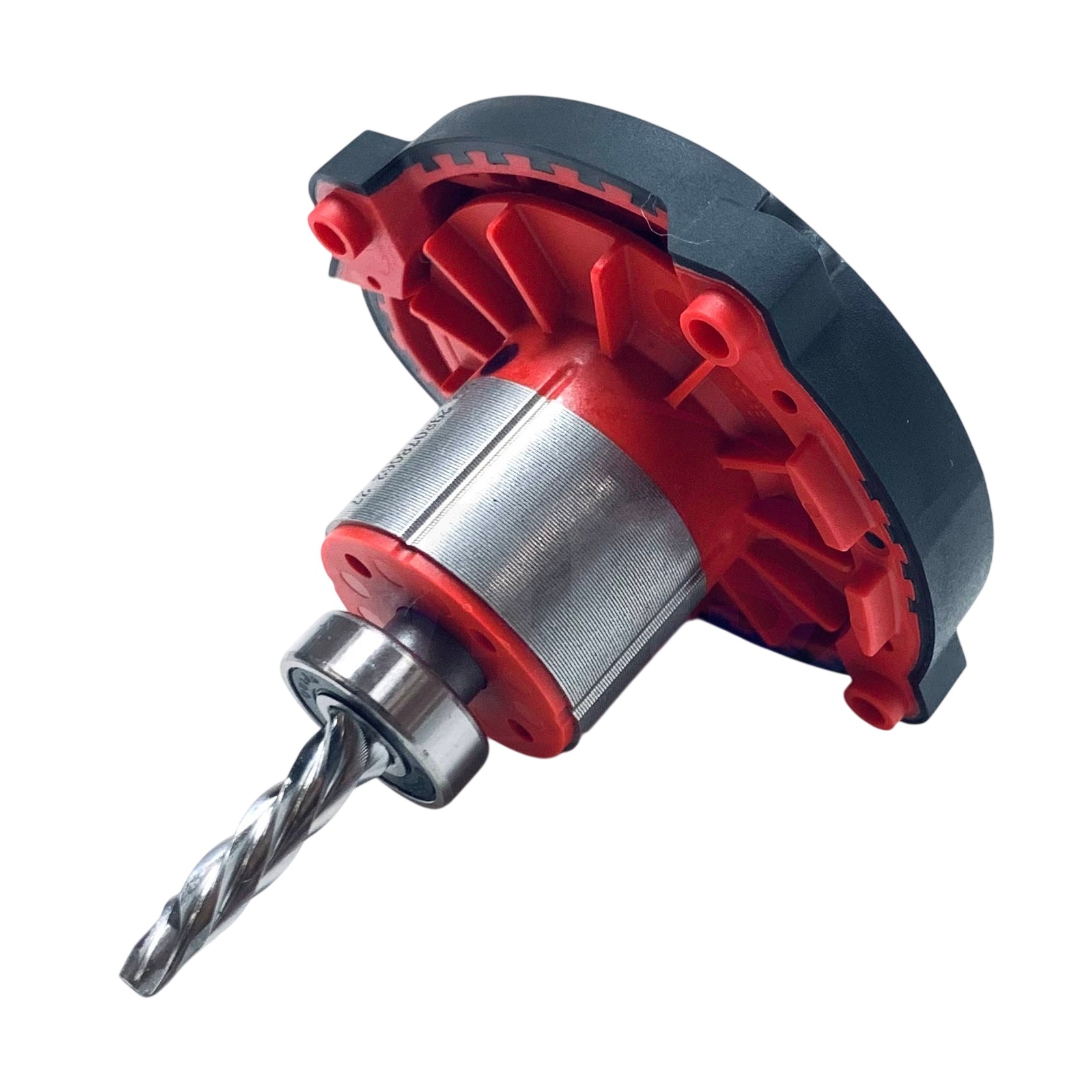

Milwaukee 16-01-6035 Rotor Assembly

Product Overview:

Provides the rotating member within the motor assembly of selected Milwaukee M18 FUEL™ 1/2" high-torque impact wrenches. The Milwaukee 16-01-6035 Rotor Assembly converts electromagnetic input within the motor into rotational mechanical movement that is transferred through the connected powertrain. Its position within the motor places it at the beginning of the mechanical drive path leading toward the gear, impact, and output-drive components.

Rotational Motion Generation:

Electromagnetic interaction between stationary motor components and the rotating assembly produces rotary movement around the shaft. This rotation provides the mechanical output required by the connected drive components.

Motor-to-Drive Power Transfer:

Transfers rotational movement generated within the motor toward the connected mechanical powertrain. The rotor shaft provides the rotating connection between the motor assembly and downstream components, allowing mechanical movement to continue through the tool.

Replacement Guidelines:

Replace the Rotor Assembly if it is bent, cracked, burned, damaged, excessively worn, or no longer rotates smoothly within the motor assembly. Verify SKU 16-01-6035 before replacement to ensure you select the correct rotor assembly. Replace the assembly if deterioration affects motor performance, rotation, power delivery, vibration, or normal tool operation.

Common Signs of Wear:

• Irregular motor rotation.
• Excessive vibration during operation.
• Unusual mechanical noise from the motor area.
• Inconsistent rotational movement.
• Visible deterioration or damage to rotating components.
• Reduced mechanical movement from the motor assembly.

Equipment Compatibility:

Selected Milwaukee M18 FUEL™ 1/2" high-torque impact wrench configurations, including 2966-20 and 2967-20, are documented with this rotor assembly. Verify the complete equipment model number, part number, and manufacturer documentation before purchasing. Do not rely solely on the M18 platform designation when identifying the correct component.

• What does the 16-01-6035 Rotor Assembly provide during operation?

  The rotor provides rotational mechanical movement within the motor assembly, allowing mechanical output to pass into the connected powertrain.

• What components work with the rotor assembly?

  The rotor works with stationary motor components, bearings, the motor housing, and connected gear and drive components.

• What signs indicate rotor wear or damage?

  Irregular rotation, excessive vibration, unusual mechanical noise, visible deterioration, inconsistent movement, and reduced motor output can indicate rotor wear or damage.

• What can cause a rotor assembly to deteriorate?

  Repeated operation, mechanical loading, vibration, overheating, bearing-related issues, and general motor wear can contribute to rotor deterioration.

• Why is balanced rotor movement important?

  Balanced rotation helps maintain consistent movement around the shaft and supports proper interaction between rotating and stationary motor components.
