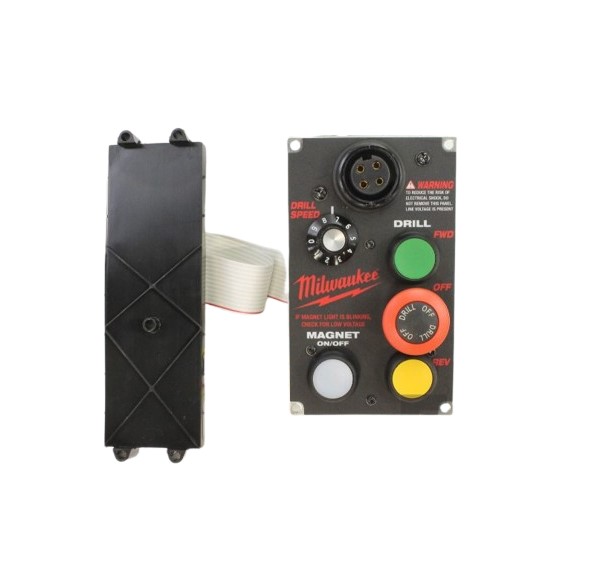

Milwaukee 23-35-0312 Control Panel Kit Full Wave

Product Overview:

Provides the operator-facing interface used to manage designated electrical functions of the drill press. The Milwaukee 23-35-0312 Drill Press Control Panel Kit Full Wave is an OEM control-panel assembly for specified Milwaukee drill press applications, combining the controls and associated electrical interface used for the equipment's designated operating functions.

Electrical Switching:

The control panel uses electrical switching circuitry to convert operator inputs into defined electrical states within the drill press control system. When a control is actuated, its switching elements change the associated circuit condition, creating an electrical input recognized by the connected control circuitry. These signals allow the drill press control system to manage the functions assigned to the panel while separate mechanical and drive components perform the physical drilling work.

Replacement Guidelines:

Replace the Milwaukee 23-35-0312 Drill Press Control Panel Kit Full Wave when the existing control panel is damaged, deteriorated, or no longer performs its intended electrical control function. Replacement may also be necessary when loss of panel operation affects normal drill press operation. Verify the existing part number and full-wave configuration against the applicable equipment documentation before purchasing.

Common Failure Symptoms:

• Control panel functions become unresponsive.
• Electrical controls operate intermittently.
• Drill press does not respond correctly to control-panel inputs.
• Visible physical damage or deterioration of the control panel.
• Control panel no longer provides its intended electrical control function.

Equipment Compatibility:

The Milwaukee 23-35-0312 Drill Press Control Panel Kit Full Wave is an OEM control-panel assembly for specified Milwaukee drill press applications. Before purchasing, verify the complete equipment model, required part number, full-wave configuration, and applicable Milwaukee parts documentation to confirm compatibility.

• What does the Full Wave designation indicate on the Milwaukee 23-35-0312 Control Panel Kit?

  The Full Wave designation identifies the electrical configuration of the control panel and should match the specified configuration for the applicable drill press.

• Is the Milwaukee 23-35-0312 Control Panel Kit a mechanical drilling component?

  No. It is an electrical control component that manages designated electrical functions within the drill press rather than performing the physical drilling action.

• How does the control panel interact with the drill press motor?

  The control panel provides operator electrical inputs, while connected control circuitry manages the motor and other electrical loads.

• Can the Control Panel Kit include multiple switches?

  Yes. The panel can contain multiple switching elements when the drill press requires separate operator inputs for different electrical functions.

• How can I confirm the Milwaukee 23-35-0312 Control Panel Kit before purchasing?

  Match the Milwaukee part number 23-35-0312 and Control Panel Kit designation, including the Full Wave configuration, with the existing component and applicable equipment information.
