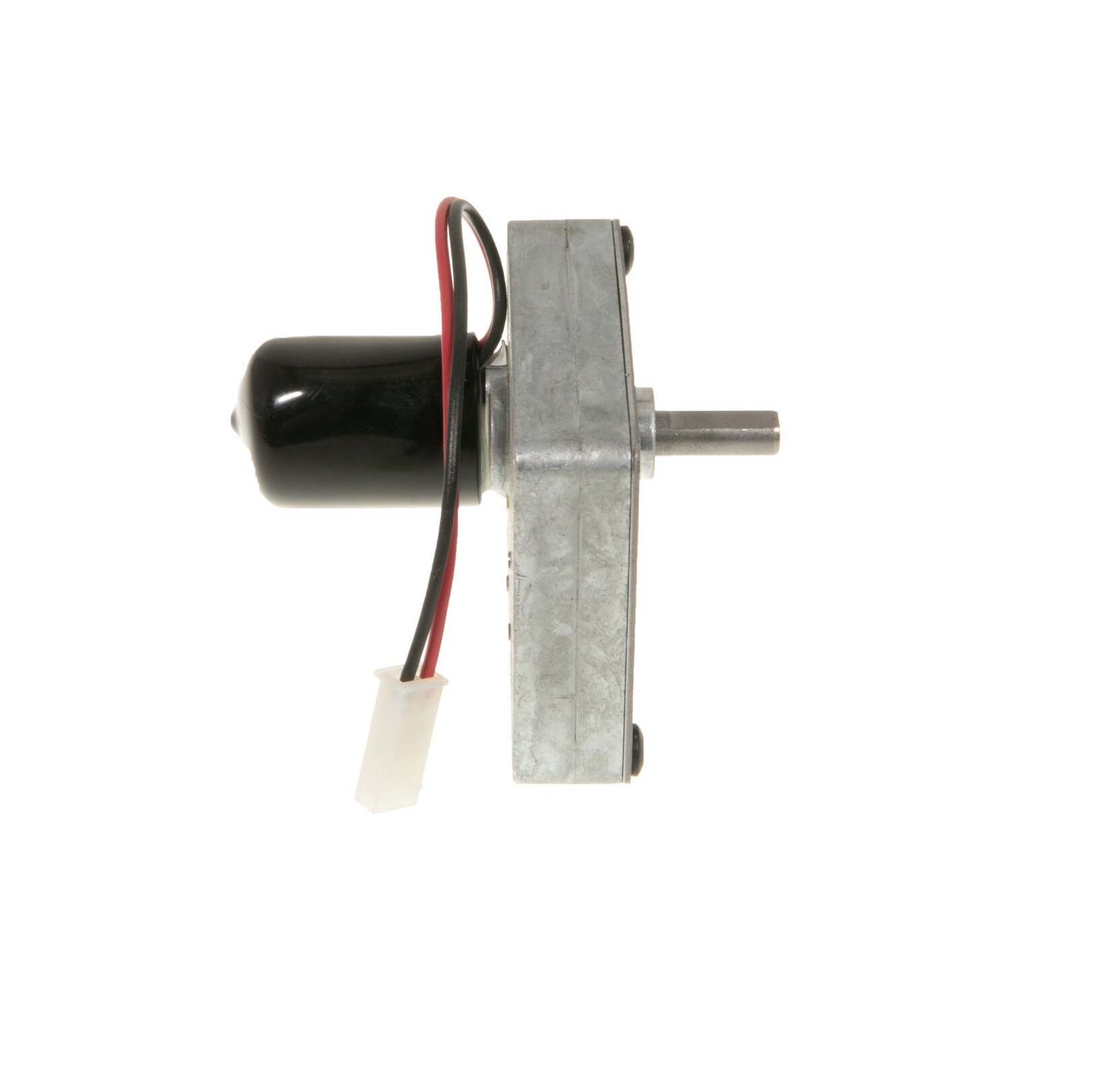

Mtd 724-04209 Snow Blower Chute Pitch Motor

Product Overview:

Controls the vertical angle of the snow discharge chute with the MTD 724-04209 Snow Blower Chute Pitch Motor, an OEM replacement component. This motor operates the chute pitch adjustment mechanism, allowing the operator to raise or lower the chute to help control the snow's discharge trajectory and throwing distance

Chute Angle Adjustment:

Moves the chute pitch mechanism to change the vertical discharge angle during operation. Motor-driven movement allows the discharge chute to be positioned according to the desired snow-throwing height. Consistent motor operation supports responsive adjustment and helps maintain predictable chute positioning during snow removal.

Electrical System Integration:

The motor connects to the snow blower's electrical control system and receives commands from the chute adjustment controls. Correct electrical connections and compatible control components are essential for responsive operation.

Replacement Guidelines:

Replace the MTD 724-04209 Snow Blower Motor Chute Pitch when the motor fails, operates intermittently, or cannot adjust the discharge chute pitch as intended. Inspect the electrical connections, wiring, mounting points, and associated chute adjustment mechanism before installation. Unresponsive or inconsistent chute movement may indicate motor damage, although other components can cause similar symptoms.

Common Signs of Wear:

• Chute does not move vertically.
• Chute pitch adjustment becomes intermittent.
• Chute moves slowly or inconsistently.
• Chute stops before reaching the selected angle.
• Unusual noise during pitch adjustment.
• Motor does not respond to control input.

Equipment Compatibility:

The MTD 724-04209 Snow Blower Motor Chute Pitch is an OEM replacement component intended for compatible MTD snow blower applications requiring this specific part. Verify the equipment model number and original motor part number against the applicable manufacturer parts listing before ordering to confirm fitment.

The Mtd 724-04209 Snow Blower Chute Pitch Motor moves the chute pitch mechanism, allowing the operator to adjust the discharge angle for directing snow during clearing.

This component helps address the following concerns:

• Chute pitch remains fixed despite control input.

• Motor produces a clicking sound during adjustment.

• Chute moves slowly through its pitch range.

• Chute stops before reaching the selected angle.

• Pitch mechanism moves intermittently.

Chute Angle Stays Fixed

Quick Check: Activate the pitch control and observe whether the motor attempts to move the chute.

Fix Suggestion: Check the motor connection and mounting area, then renew the pitch motor if it does not actuate.

Prevention Tip: Test the chute pitch function before operating in heavy snowfall.

Clicking During Pitch Adjustment

Quick Check: Listen closely while changing the chute angle and note whether repeated clicking comes from the motor area.

Fix Suggestion: Inspect the motor drive connection and address worn or damaged engagement points.

Prevention Tip: Avoid forcing the chute when ice prevents normal pitch movement.

Slow Pitch Movement

Quick Check: Cycle the chute through its available angle and watch for unusually sluggish movement.

Fix Suggestion: Examine the pitch linkage for resistance and service the mechanism if binding is present.

Prevention Tip: Keep packed snow and ice away from the chute pitch linkage.

Incomplete Chute Travel

Quick Check: Compare the selected pitch position with the actual chute angle reached.

Fix Suggestion: Inspect the motor linkage for obstruction or misalignment and renew the motor if travel remains limited.

Prevention Tip: Clear frozen buildup before operating the pitch control.

Customer Experience: One operator dealt with limited chute-angle movement and reported that the chute reached the requested position again after installing a new pitch motor.

• How does the MTD 724-04209 Snow Blower Chute Pitch Motor help control snow discharge?

  It adjusts the chute’s vertical angle, allowing the operator to change the direction and height of the snow’s discharge trajectory.

• How can I confirm that the MTD 724-04209 Chute Pitch Motor is compatible with my snow blower?

  Check your snow blower’s complete model information and the manufacturer’s parts listing to confirm that the 724-04209 OEM component matches your equipment.

• What could cause a snow blower chute to stop adjusting vertically?

  A failed pitch motor, faulty electrical connections, wiring issues, or problems in the adjustment mechanism may prevent vertical movement.

• When should I replace the MTD 724-04209 Chute Pitch Motor?

  Consider replacement when the motor fails to respond or cannot adjust the chute as intended after related electrical connections and mechanism issues have been checked.

• What should I check before installing a replacement chute pitch motor?

  Inspect the wiring, electrical connections, mounting points, and associated pitch adjustment mechanism before installation.
