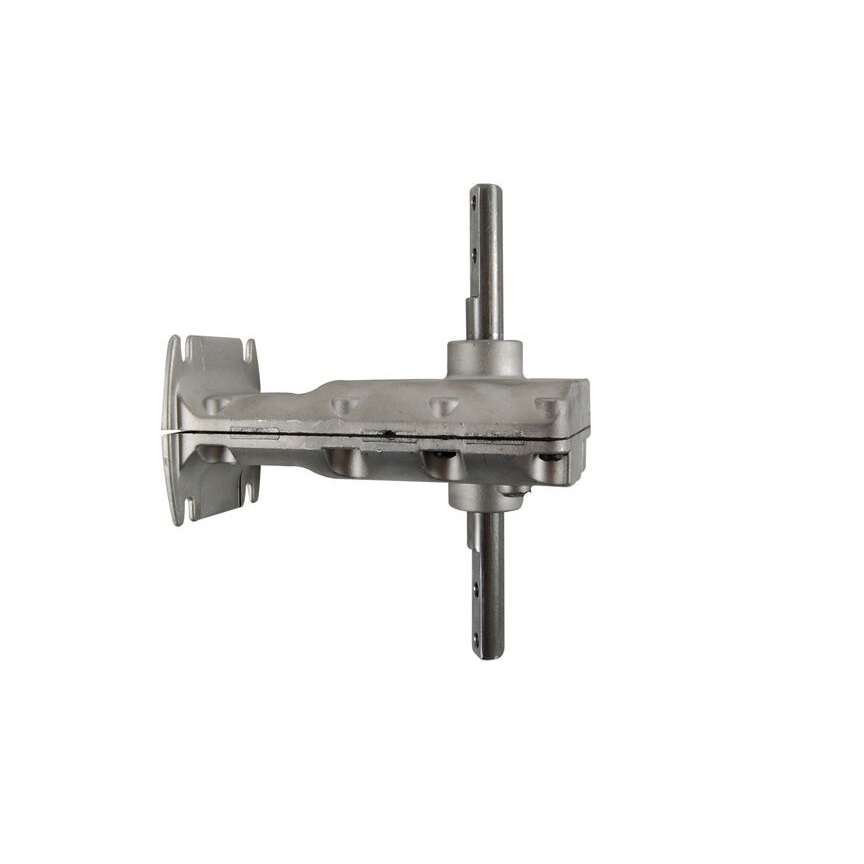

Mtd 753-06063 Tiller Gearbox Assembly Cult

Product Overview:

Provides the mechanical power-transfer connection between the tiller's drive system and the tine assembly. The MTD 753-06063 Tiller Cult Gearbox Assembly uses an enclosed gear mechanism to receive rotational input and transfer torque to the tine drive, allowing the cultivating tines to rotate during operation. The gearbox housing contains and supports the internal drivetrain components while maintaining the required relationship between the input and output shafts. By converting the incoming rotational movement through its internal gear arrangement, the assembly enables the tiller's drive system to deliver controlled mechanical power to the tine assembly.

Rotational Power Transfer:

Receives rotational movement from the tiller's drive system and transfers that movement through the internal gears to the tine shaft. The gear train transmits torque while maintaining the mechanical relationship between the drive input and tine output.

Gearbox Housing:

Encloses and supports the internal drivetrain components while maintaining their operating positions. The housing also provides the structural interface between the gearbox and the surrounding tiller assembly.

Replacement Guidelines:

Replace the Tiller Cult Gearbox Assembly if it is cracked, damaged, leaking, excessively worn, or no longer transfers power smoothly. Verify SKU 753-06063 before replacement. Replace the assembly if deterioration affects gear engagement, rotation, power transmission, alignment, or normal tiller operation.

Common Failure Symptoms:

• Tines stop rotating while the drive system continues operating.
• Intermittent or inconsistent tine movement.
• Grinding, knocking, or abnormal mechanical noise.
• Excessive movement or looseness within the gearbox.
• Visible housing damage.
• Lubricant leakage around the gearbox.
• Reduced or interrupted power transfer to the tine assembly.

Equipment Compatibility:

The MTD 753-06063 Tiller Cultivator Gearbox Assembly is intended for compatible MTD tiller and cultivator equipment requiring the specified gearbox configuration. Compatibility should be confirmed by matching part number 753-06063, the complete tiller model information, and applicable parts documentation before purchase. Verify the gearbox configuration, mounting arrangement, and drive connections to ensure proper fit, power transmission, and normal tiller operation.

• What does the MTD 753-06063 Tiller Cult Gearbox Assembly do?

  It transfers rotational power from the tiller's drive system to the tine assembly, allowing the cultivating tines to rotate.

• How does the gearbox transfer power to the tines?

  Rotational input enters the gearbox and passes through the internal gear train, which transfers torque to the output shaft connected to the tine drive.

• What happens when the gearbox gears become worn?

  Worn gears can affect torque transfer and may cause abnormal noise, inconsistent tine movement, excessive mechanical play, or loss of tine rotation.

• How should the MTD 753-06063 Tiller Cult Gearbox Assembly be maintained?

  Inspect the gearbox assembly regularly for leaks, damaged housing, unusual noise, loose hardware, or excessive wear, and follow the manufacturer’s recommended lubrication and service procedures.

• When should the MTD 753-06063 Tiller Cult Gearbox Assembly be replaced?

  The gearbox assembly should be replaced when it is cracked, severely worn, leaking, or no longer transfers power properly to the tiller’s cultivating components.
