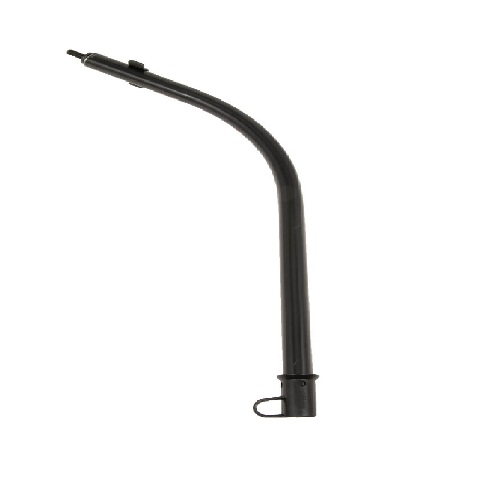

MTD 753-06805 Trimmer Boom Lower Assembly W/Shaft

Product Overview:

Provides the mechanical connection between the upper drive section and the cutting-head assembly of a compatible string trimmer. The MTD 753-06805 Trimmer Boom Lower Assembly W/Shaft combines the lower boom housing with an integrated drive shaft that carries rotational movement through the lower portion of the trimmer. As the upper drive system rotates, the internal shaft transfers that movement through the boom toward the cutting attachment, allowing the cutting head to receive the mechanical rotation required for operation.

Torque Transmission:

Transfers rotational torque from the upper drive system through the internal shaft toward the cutting attachment. The shaft provides the continuous mechanical connection required to carry rotational movement through the lower boom assembly.

Connection Interface:

Joins the lower boom assembly with the adjoining trimmer components. Proper engagement keeps the assembly securely positioned within the complete drive system.

Replacement Guidelines:

Replace the Trimmer Boom Lower Assembly with Shaft if the assembly is cracked, bent, deformed, damaged, worn, or no longer provides proper shaft support and power transmission. The part number 753-06805 and lower assembly with shaft configuration should be verified before replacement to ensure the correct assembly is selected. Replace the assembly if deterioration affects shaft rotation, alignment, structural support, mounting security, or normal trimmer operation.

Common Signs of Wear:

• Bent, dented, or cracked boom tube.
• Worn or damaged internal drive shaft.
• Excessive movement at connection points.
• Wear around coupling surfaces.
• Misalignment within the drive path.
• Reduced or interrupted cutting-head rotation.

Equipment Compatibility:

Verify the complete string trimmer model, shaft configuration, boom arrangement, connection points, and applicable manufacturer parts documentation before ordering. Confirm that 753-06805 is specified for the particular trimmer configuration.

• What does the MTD 753-06805 Trimmer Boom Lower Assembly W/Shaft do?

  It provides the lower structural and mechanical connection between the upper drive system and cutting-head assembly while transferring rotational movement through its internal shaft.

• How should the MTD 753-06805 Trimmer Boom Lower Assembly W/Shaft be maintained?

  Inspect the boom and shaft assembly regularly for cracks, bending, excessive wear, loose connections, or debris buildup, and keep the assembly clean to support proper trimmer operation.

• When should the MTD 753-06805 Trimmer Boom Lower Assembly W/Shaft be replaced?

  The assembly should be replaced when the boom or shaft is bent, cracked, excessively worn, or no longer provides secure alignment and reliable power transfer during trimming.

• Can a worn drive shaft affect cutting-head rotation?

  Yes. Excessive shaft wear or damage can interfere with torque transmission and may result in reduced, irregular, or interrupted cutting-head rotation.

• Why are the connection points important?

  The connection points establish the mechanical relationship between the lower boom, upper drive section, and cutting attachment. Damage or excessive wear can affect alignment and power transfer.
