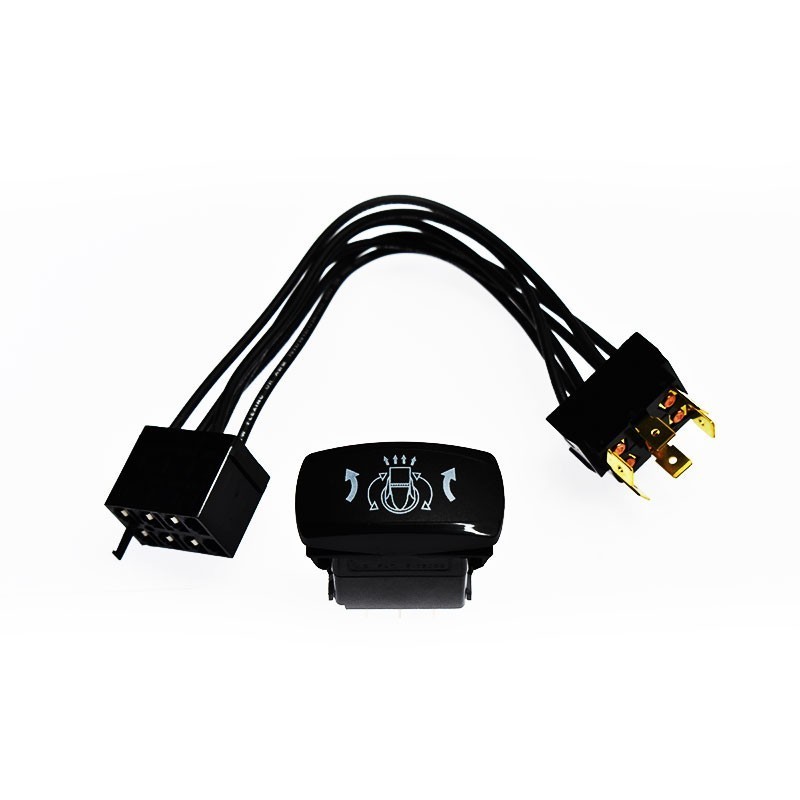

Murray 1687904 Wire Harness Adapter Kit for Chute Rotation Switch

Product Overview:

Connects the chute rotation switch to the designated electrical wiring system within a snow blower. The Murray 1687904 Snow Blower Wire Harness Adapter Kit is an OEM replacement component that supports the electrical connection required for the chute rotation control function. Its wiring and connectors provide the connection path between designated components of the control system.

Wire Harness Adapter:

The wire harness adapter kit establishes an electrical connection between designated wiring components associated with the chute rotation switch. Its conductors and connectors support electrical continuity within the chute control system. Damaged wiring or deteriorated connector contacts can interrupt this connection.

Chute Switch Connection:

The chute rotation switch forms part of the snow blower’s chute control system. The adapter kit provides the required wiring connection between the switch and corresponding electrical components, supporting the intended control circuit. Reliable connections help maintain electrical continuity within this circuit.

Replacement Guidelines:

Replacement of the Murray 1687904 Wire Harness Adapter Kit may be necessary when damaged wiring, cracked connectors, loose terminals, or corrosion interfere with electrical continuity. Intermittent chute rotation switch response may also indicate an adapter wiring issue when the fault has been traced to the harness. Inspect the wiring and connector condition to assess whether replacement is necessary.

Common Signs of Wear:

• Frayed, cut, or visibly damaged adapter wiring.
• Cracked, loose, or damaged electrical connectors.
• Corrosion or deterioration on connector terminals.
• Intermittent chute rotation switch response associated with a wiring fault.
• Chute rotation control failure traced to a damaged adapter harness.

Equipment Compatibility:

The Murray 1687904 Snow Blower Wire Harness Adapter Kit for Chute Rotation Switch is an OEM component intended for the applicable snow blower wiring configuration. Confirm the equipment brand, complete model number, and original adapter part number against the official parts documentation before ordering.

The Murray 1687904 Wire Harness Adapter Kit for Chute Rotation Switch supports the electrical connection used for chute direction control, making harness and terminal faults important areas to inspect when rotation commands fail.

This Part May Address:

• Chute rotation does not react to switch input.

• Direction control responds only occasionally.

• Adapter connector disconnects easily.

• Harness insulation is worn or split.

• Switch operation produces an intermittent response.

Interrupted Chute Control

Quick Check: Test the chute rotation switch and note whether the control responds every time the switch is operated.

Fix Suggestion: Examine the adapter and its connections for an open circuit, loose terminal, or damaged wiring and service the affected area.

Prevention Tip: Inspect the adapter harness whenever the chute-control wiring is serviced.

Loose Connector Seating

Quick Check: Verify that the adapter remains fully connected without excessive movement at the connector.

Fix Suggestion: Disconnect and reseat the harness connection according to the applicable service procedure, replacing the adapter if it will not stay engaged.

Prevention Tip: Avoid placing tension on the harness while working around the chute assembly.

Wiring Insulation Wear

Quick Check: Visually follow the harness and look for rubbed, cracked, or exposed sections.

Fix Suggestion: Renew the wire harness adapter when damage affects the wiring or prevents proper electrical continuity.

Prevention Tip: Maintain sufficient clearance between the harness and moving or abrasive areas.

Irregular Electrical Contact

Quick Check: Observe whether chute rotation starts and stops unexpectedly while the switch is being operated.

Fix Suggestion: Inspect the adapter terminals and connection points for poor contact, then restore the connection or change the affected adapter.

Prevention Tip: Keep electrical connectors protected during storage and routine snow blower servicing.

Customer Experience: A snow blower owner changed the adapter harness after the chute switch became unreliable and reported that directional commands were being received without the earlier interruptions.

• Where is the Murray 1687904 wire harness adapter kit used?

  It connects the chute rotation switch to the snow blower's designated electrical wiring system.

• Why choose the OEM 1687904 adapter kit?

  Verify the part number and complete snow blower model against the official parts documentation before ordering.

• How does the adapter kit support chute rotation control?

  Its wiring and connectors establish the electrical connection between the chute rotation switch and associated control components.

• What symptoms indicate a faulty wire harness adapter?

  Damaged wiring, cracked connectors, corroded terminals, or intermittent switch response may indicate an electrical connection problem.

• How should the chute rotation wire harness adapter be maintained?

  Inspect the wiring, connectors, and terminals for damage, looseness, or corrosion according to the manufacturer's service instructions.
