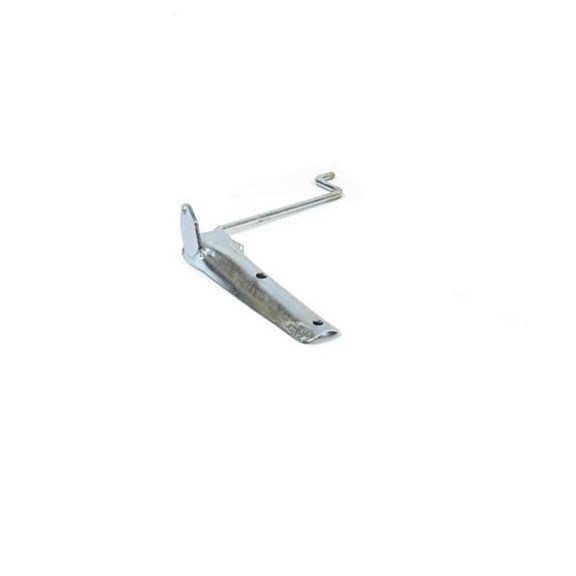

Murray 760289YZMA Snow Blower Control Lever Assembly

Product Overview:

An operator-operated lever at the upper handle provides the mechanical input needed to engage a snow blower's clutch system. The Murray 760289YZMA Snow Blower Control Lever Assembly P4SHC is an OEM assembly that serves as the handle-mounted control point for the associated clutch drive mechanism. Its assembled construction keeps the lever and connected components positioned for coordinated movement.

Lever Movement:

Operator input begins at the handle-mounted lever, where manual movement initiates the associated clutch action. The pivoting motion provides a direct mechanical input to the connected linkage while keeping the operating point accessible at the upper handle.

Mechanical Force Transfer:

The connected linkage carries movement from the lever toward the clutch mechanism, transmitting the operator's input through the control assembly. As the lever pivots, the linkage follows the applied movement and actuates the associated clutch-control connection. This mechanical transfer helps coordinate lever operation with the snow blower's drive-control system.

Replacement Guidelines::

Replacement may be appropriate when the Murray 760289YZMA Snow Blower Control Lever Assembly P4SHC becomes broken, damaged, excessively loose, or unable to provide normal mechanical movement. Deterioration at the lever or its connection points can interfere with the associated clutch-control function. Verify the equipment model and existing application before selecting a replacement.

Common Failure Symptoms:

• Broken or cracked lever
• Restricted lever movement
• Excessive looseness at the handle
• Damaged connection points
• Irregular clutch engagement
• Difficulty operating the associated drive control

Equipment Compatibility:

The Murray 760289YZMA Snow Blower Control Lever Assembly P4SHC is an OEM assembly intended for compatible snow blower clutch-control applications. Before ordering, compare the existing handle position, linkage connection, and control arrangement with the equipment configuration to confirm the correct application.

The Murray 760289YZMA Snow Blower Control Lever Assembly serves as a handle-mounted operating control, transferring lever movement to the connected snow blower control linkage.

Common problems include:

• Lever feels unusually stiff during use.

• Lever does not stay in its selected position.

• Control movement feels loose or unstable.

• Lever housing has visible wear.

• Associated function fails to engage through the lever.

Stiff Lever Operation

Quick Check: Slowly move the lever while checking for resistance at the pivot and connected linkage.

Fix Suggestion: Clear any obstruction and service the linkage if buildup or binding is restricting lever movement.

Prevention Tip: Remove snow and ice from the handle control area before storage.

Lever Will Not Hold Position

Quick Check: Engage the lever and observe whether it remains where selected or moves back unexpectedly.

Fix Suggestion: Inspect the lever assembly and connected control components for worn attachment points or damaged parts.

Prevention Tip: Review control lever mounting during routine maintenance.

Unstable Control Movement

Quick Check: Operate the lever while watching for excessive movement around its mounting point.

Fix Suggestion: Tighten the applicable mounting hardware or renew the assembly when the lever structure is worn.

Prevention Tip: Avoid placing unnecessary pressure on the handle-mounted controls.

Control Fails To Engage

Quick Check: Move the lever and observe whether the connected cable or linkage responds.

Fix Suggestion: Trace the visible control connection and address separation, binding, or damage affecting movement.

Prevention Tip: Test each handle control before beginning snow removal.

Customer Experience: After noticing a stiff handle control, one operator serviced the linkage and replaced the worn lever assembly, then reported smoother control movement.

• What is the purpose of the Murray 760289YZMA control lever assembly?

  This OEM assembly provides a handle-mounted control point for operating the snow blower’s associated clutch mechanism through manual lever movement.

• How does the control lever activate the clutch mechanism?

  When the operator moves the pivoting lever, the connected linkage transfers that movement to the clutch-control connection, coordinating lever input with the drive-control system.

• How can I confirm this control lever assembly fits my Murray snow blower?

  Compare your equipment model, handle position, linkage connection, and existing control arrangement with the applicable parts information to verify compatibility with part number 760289YZMA.

• What symptoms suggest the control lever assembly needs replacement?

  A broken or cracked lever, restricted movement, excessive looseness, damaged connection points, irregular clutch engagement, or difficulty operating the associated drive control may indicate a problem.

• What should I inspect on the control lever assembly to help maintain reliable operation?

  Check the lever and its connection points for visible damage, looseness, or restricted pivoting movement that could interfere with clutch-control operation.
