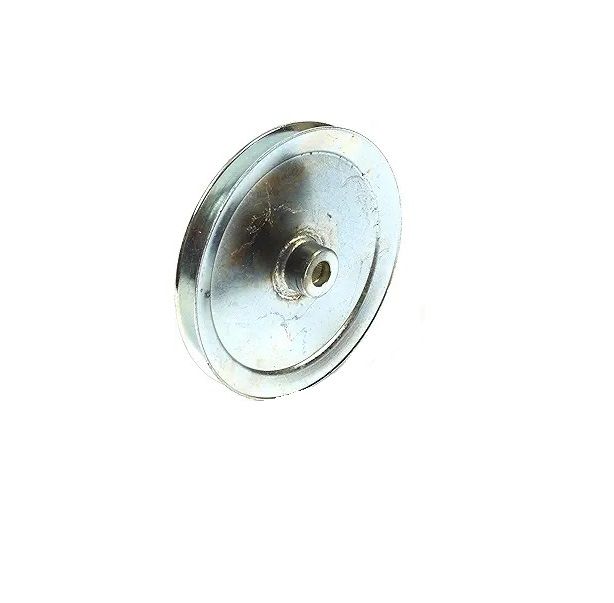

Murray 774090MA Lawn Tractor Pulley Splined 7.5 Q1

Product Overview:

Transfers rotational power through the lawn tractor's splined drive system to support proper pulley and belt operation. The Murray 774090MA 7.5-inch Splined Pulley is a genuine OEM replacement component designed for compatible Murray and Craftsman lawn equipment. Its splined center engages with the matching shaft to help maintain consistent rotation and reliable power transfer within the drive assembly.

Belt Drive Transfer:

Transfers rotational motion through engagement between the pulley and the associated drive belt. The pulley profile provides the belt-contact surface through which rotational movement is transmitted, while the splined connection maintains the pulley in its intended relationship with the rotating shaft. This combined mechanical interface allows the pulley to participate in the belt-driven motion of the assembly.

Splined Shaft Engagement:

The pulley features a splined center designed to engage with a compatible splined shaft. This connection helps transfer rotational force while reducing unwanted slipping between the pulley and shaft during operation.

Replacement Guidelines:

Replace the Murray 774090MA pulley if its splines are worn, cracked, or damaged, or if the pulley becomes bent or prevents proper belt operation. A qualified technician should inspect the shaft, belt, and related drive components before replacement. Turn off the engine, remove the ignition key, and allow moving parts to stop completely before servicing.

Common Signs of Wear:

• Visible cracks or breaks in the pulley.
• Damaged or worn splines.
• Excessive wear on the belt-contact surface.
• Bent or deformed pulley structure.
• Physical damage affecting the pulley or its connection area.

Equipment Compatibility:

The Murray 774090MA is a genuine OEM replacement pulley designed for compatible Murray and Craftsman lawn tractors and lawn mowers. Listed applications include Murray 30-inch rear-engine riders and lawn tractors, as well as select Craftsman models such as 502.255040 and 502.255091. Verify the complete equipment model number and parts diagram before ordering to confirm the correct pulley application.

The Murray 774090MA Lawn Tractor Pulley Splined 7.5 Q1 supports the mower deck drive system by guiding belt movement and transferring rotation to connected deck components.

Problems This Part Can Resolve:

• Pulley develops excessive operating noise.

• Deck belt moves unevenly.

• Pulley grooves show visible wear.

• Mower deck vibrates during operation.

• Splined pulley connection becomes loose.

Pulley Produces Excessive Noise

Quick Check: Listen near the pulley while the mower deck is operating for rattling, squealing, or grinding sounds.

Fix Suggestion: Check the pulley for wear, looseness, or contact with nearby deck components.

Prevention Tip: Examine the pulley during routine deck maintenance.

Deck Belt Tracks Unevenly

Quick Check: Observe the belt path around the pulley and look for movement away from its normal position.

Fix Suggestion: Evaluate the pulley surface, alignment, and belt routing for conditions affecting belt tracking.

Prevention Tip: Keep the deck drive area clean and maintain proper belt routing.

Pulley Groove Shows Wear

Quick Check: Examine the pulley groove for worn, damaged, or irregular belt-contact areas.

Fix Suggestion: Renew the pulley when groove deterioration affects proper belt seating.

Prevention Tip: Look for the pulley whenever the deck belt is serviced.

Mower Deck Vibrates Excessively

Quick Check: Watch the deck for unusual shaking while the pulley and belt system operate.

Fix Suggestion: Monitor the pulley for distortion, imbalance, or mounting concerns.

Prevention Tip: Investigate new vibration promptly before continued mowing.

Customer Experience: After the worn pulley was changed, the belt moved more smoothly, and there was less vibration while mowing the lawn.

• What is the function of the Murray 774090MA Lawn Tractor Splined Pulley?

  The pulley transfers rotational power through the belt-drive system, supporting mechanical movement between the connected drive components.

• How does the splined center of the Murray 774090MA Pulley support power transmission?

  Its splined center engages with a matching shaft to transfer rotational force while reducing unwanted slipping between the pulley and shaft.

• Which lawn tractors are compatible with the Murray 774090MA Splined Pulley?

  This genuine OEM replacement pulley is listed for compatible Murray and Craftsman equipment, including Craftsman models 502.255040 and 502.255091. Check your complete equipment model and parts diagram before ordering.

• When should the Murray 774090MA Lawn Tractor Pulley be replaced?

  Replace the pulley if its splines are worn or damaged, the body is cracked or bent, or the belt-contact surface has excessive wear that affects belt operation.

• How should the Murray 774090MA Splined Pulley be maintained?

  Inspect the splines, pulley body, and belt-contact surface for cracks, deformation, and excessive wear. Check the connected shaft and belt for visible damage and follow the manufacturer's maintenance guidance.
