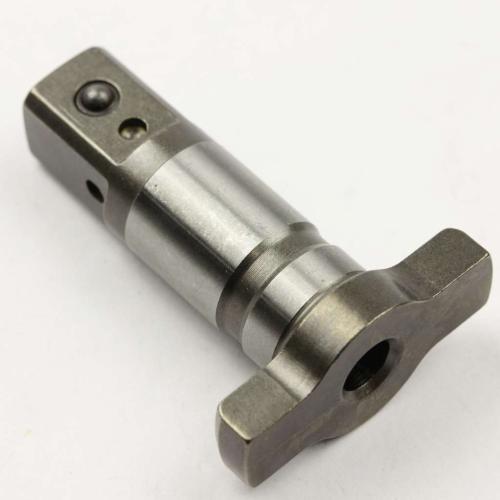

Panasonic WEY75A5L1128 Anvil

The Panasonic WEY75A5L1128 anvil is a precision-machined drive component used in Panasonic cordless impact wrench systems, specifically within the EY75A5 platform. It transfers hammer-driven rotational force from the internal impact mechanism to the socket, ensuring stable torque delivery under heavy fastening loads.

Common symptoms linked to WEY75A5L1128:

• Reduced impact torque during tightening/loosening.

• Socket slipping under load.

• Excessive wobble at 1" square drive end.

• Retaining ring failing to hold socket securely.

• Unusual vibration or “knocking” from drive head.

• Visible wear or rounding on square drive edges.

Rounded or Damaged Square Drive

Quick Check: Inspect the 1" drive tip for rounding, tapering, or chipped corners.

Fix Suggestion: Replace WEY75A5L1128 if socket fit is loose or edges are visibly worn

Prevention Tip: Always use high-quality impact sockets rated for 1" drive tools

Socket Slipping Under Load

Quick Check: Test with a properly sized impact socket under torque.

Fix Suggestion: Inspect both anvil and retaining ring; replace worn ring and check groove wear on the anvil.

Prevention Tip: Avoid mixing worn sockets with a new anvil, as it accelerates wear.

Retaining Ring Not Holding Socket Properly

Quick Check: Socket detaches or shifts during reverse torque operation.

Fix Suggestion: Replace retaining ring and verify anvil groove integrity.

Prevention Tip: Ensure correct ring seating during every service rebuild.

Loss of Impact Power Transmission

Quick Check: Compare tool output torque against normal operation baseline.

Fix Suggestion: If internal spline interface is worn along with the anvil, replace WEY75A5L1128 and inspect hammer assembly alignment.

Prevention Tip: Maintain proper lubrication in the impact mechanism to reduce premature wear.

Customer Experience: Many service technicians report that replacing the WEY75A5L1128 restores smooth socket engagement and eliminates “loose head” behavior, especially in workshop environments where the EY75A5 tool is used for repeated high-torque fastening cycles.

• Is the Panasonic WEY75A5L1128 Anvil compatible with all Panasonic impact wrenches?

  No. This anvil is designed for specific Panasonic cordless impact wrench models, including compatible EY75A5 series tools. Always confirm compatibility using the tool model and parts diagram before ordering.

• What are signs that the anvil is failing?

  Common failure indicators include reduced torque output, socket slippage, visible rounding of the 1" square drive, and increased vibration during impact operation.

• Can I replace the Panasonic anvil myself?

  But it requires partial disassembly of the impact head housing and correct reassembly of the hammer and drive alignment. It is recommended for technicians familiar with cordless impact wrench servicing.

• What is the function of the WEY75A5L1128 anvil?

  It serves as the main torque transfer interface between the internal hammer mechanism and the socket, converting impact energy into controlled rotational force for heavy-duty fastening applications.
