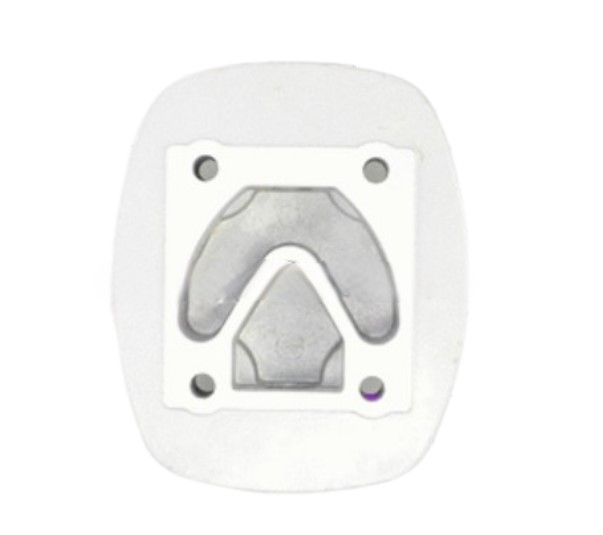

Porter Cable 5140209-04 Air Compressor Cylinder Head

The following troubleshooting guide is specific to the Porter Cable 5140209-04 Air Compressor Cylinder Head, a critical component responsible for air compression sealing, airflow routing, and pressure generation inside compatible Porter Cable compressor pumps.

Common Issues:

• Compressor failing to build full pressure.

• Air leaking from cylinder head gasket area.

• Overheating during continuous operation.

• Unusual knocking or pulsating noise from pump section.

• Reduced airflow output to tank.

Compressor Not Building Proper Pressure

Quick Check: Observe whether pressure rises slowly or stops before reaching normal cut-off.

Fix Suggestion: Inspect the cylinder head valves and gasket surface for warping, debris, or wear. Replace damaged sealing components to restore compression efficiency.

Prevention Tip: Keep intake filters clean to prevent debris from reaching the cylinder head assembly.

Air Leakage from Cylinder Head Area

Quick Check: Listen for hissing around the top pump section while the unit is pressurized.

Fix Suggestion: Remove the cylinder head and inspect the gasket and mating surface for cracks, flattening, or improper seating. Replace the gasket and re-torque bolts evenly.

Prevention Tip: Avoid overtightening head bolts, which can distort sealing surfaces over time.

Excessive Heat Build-Up in Pump Assembly

Quick Check: Check if the compressor shuts down prematurely or feels unusually hot near the pump housing.

Fix Suggestion: Ensure internal valves in the cylinder head are functioning properly and not restricting airflow. Clean or replace worn components as needed.

Prevention Tip: Maintain proper oil levels (for oil-lubricated models) and allow cooling cycles during extended use.

Knocking or Pulsation Noise from Compressor

Quick Check: Listen for rhythmic tapping or uneven compression sounds during operation.

Fix Suggestion: Inspect reed valves or valve plates inside the cylinder head for damage or fatigue. Replace faulty components immediately.

Prevention Tip: Avoid running the compressor under heavy load beyond recommended duty cycle.

Reduced Air Delivery to Tank

Quick Check: Monitor how long it takes for the compressor to fill the tank compared to normal operation.

Fix Suggestion: Check the cylinder head valves for carbon buildup or sticking and clean or replace as required.

Prevention Tip: Regularly service the intake system to maintain clean airflow into the cylinder head.

Customer Experience/Testimonial: One technician noted that replacing the Porter Cable 5140209-04 cylinder head restored full tank fill time after pressure output had dropped significantly over weeks of use.
