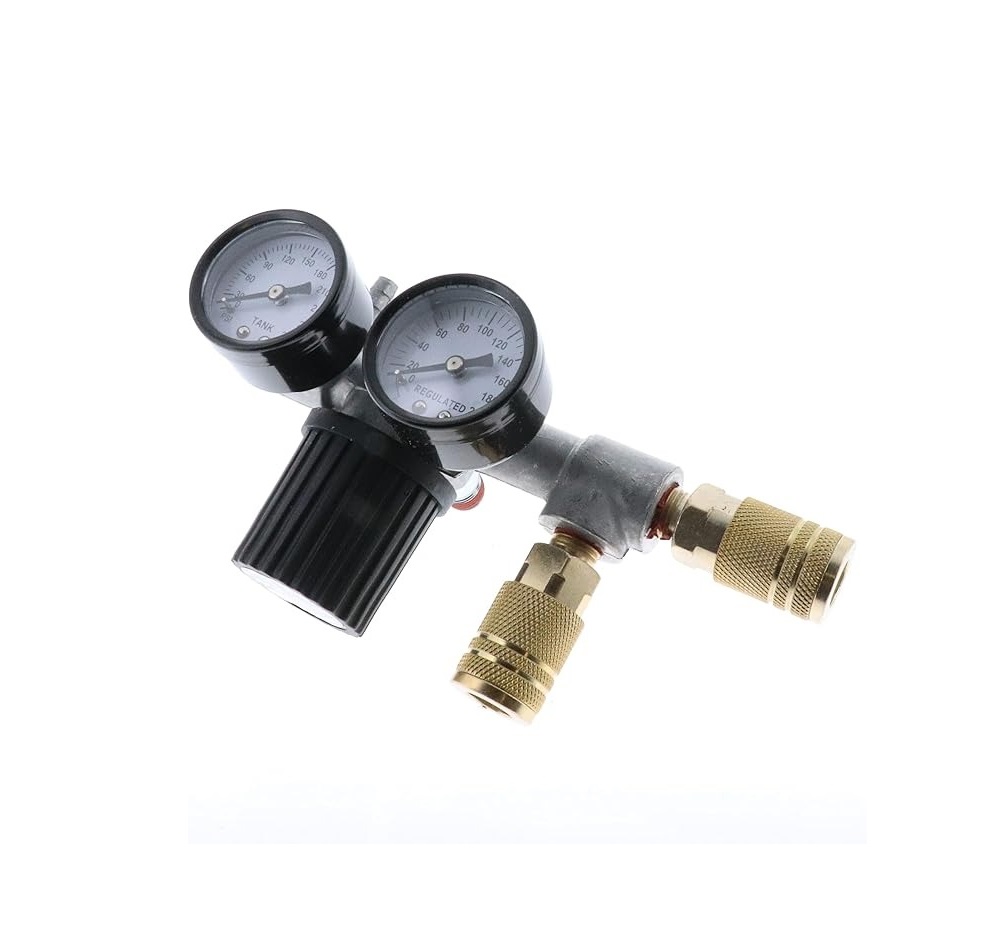

Porter Cable N082939SV Compressor Manifold Assembly

The Porter Cable N082939SV Compressor Manifold Assembly distributes compressed air between the tank, regulator, gauges, and outlet connections. A damaged or leaking manifold assembly can affect pressure control, airflow delivery, and overall compressor operation.

Common Issues Linked to this Part:

• Air leaking around manifold fittings or regulator area.

• Outlet pressure inconsistent during tool use.

• Cracked manifold housing from vibration or impact.

• Gauges not reading pressure correctly.

• Restricted airflow to air hose connections.

Air Leak Around Manifold Assembly

Quick Check: Listen for hissing sounds near fittings, gauges, or regulator connections.

Fix Suggestion: Inspect the N082939SV manifold for cracked ports or loose threaded fittings, apply proper thread sealant on air connections if required and replace damaged manifold assembly if leaks persist around molded sections.

Prevention Tip: Avoid over-tightening brass fittings, which can crack manifold threads over time.

Inconsistent Outlet Pressure

Quick Check: Observe whether connected air tools receive fluctuating pressure during operation.

Fix Suggestion: Check regulator connection points integrated into the N082939SV manifold assembly, inspect for internal blockage restricting airflow and replace damaged regulator or manifold components causing unstable pressure delivery.

Prevention Tip: Drain tank moisture regularly to reduce contamination inside airflow passages.

Cracked or Damaged Manifold Housing

Quick Check: Visually inspect the manifold body for fractures or stress damage.

Fix Suggestion: Replace the N082939SV assembly if impact or vibration has damaged structural integrity, inspect mounting areas to ensure the manifold is securely supported and check nearby fittings for excessive strain on threaded ports.

Prevention Tip: Avoid carrying portable compressors by attached hoses or regulator assemblies.

Pressure Gauges Not Reading Correctly

Quick Check: Compare gauge readings against compressor cycling behavior and actual output pressure.

Fix Suggestion: Inspect gauge mounting points on the N082939SV manifold for leaks or damage, replace faulty gauges if needle movement is erratic or stuck and verify internal airflow channels are unobstructed.

Prevention Tip: Protect gauges and manifold components from jobsite impacts and drops.

Weak Airflow at Hose Outlet

Quick Check: Test airflow strength from quick-connect coupler during compressor operation.

Fix Suggestion: Check manifold ports for debris or internal restriction, replace damaged quick-connect fittings attached to the N082939SV assembly and inspect regulator settings and hose connections for additional airflow limitations.

Prevention Tip: Keep couplers and outlet ports clean when compressor is stored.

Customer Experience: After replacing the manifold assembly, pressure adjustments became smooth and airflow remained consistent throughout operation. This also resolved the regulator leak and brought back reliable compressor performance.
