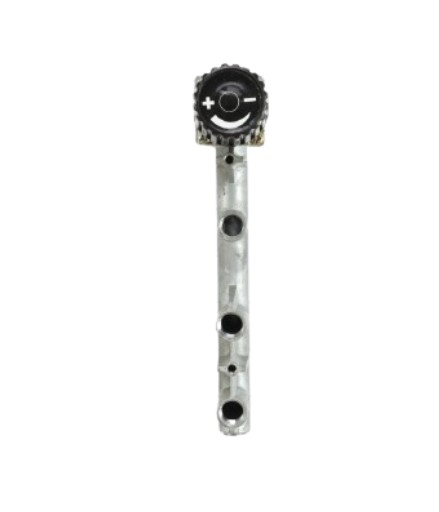

Powermate E101951 Air Compressor Manifold Assembly

The Powermate E101951 Air Compressor Manifold Assembly serves as a central air routing and control block that connects the pressure switch, tank line, regulator, gauges, and outlet ports. When this manifold begins to fail or clog internally, it can disrupt pressure regulation, airflow stability, and overall compressor safety behavior.

Common Symptoms with this SKU:

• Air escaping continuously from regulator or threaded ports.

• Compressor short-cycling before reaching full pressure.

• No airflow reaching tool outlet despite tank pressure.

• Pressure gauge needle bouncing or giving unstable readings.

• Unloader not releasing pressure after shutdown.

Continuous Air Leak from Regulator or Port Connections

Quick Check: Spray soapy water around all manifold fittings while compressor is pressurized.

Fix Suggestion: Reseat fittings connected to the manifold body and replace worn sealing tape, Replace the manifold if hairline cracks or internal leakage paths are found.

Prevention Tip: Avoid excessive torque when installing air fittings into aluminum ports.

Compressor Short Cycling Before Reaching Cut-Out Pressure

Quick Check: Observe if the motor stops and restarts rapidly without reaching full tank PSI.

Fix Suggestion: Inspect internal pressure routing inside the E101951 assembly for blockage, Replace the manifold if the pressure switch signal is being interrupted.

Prevention Tip: Keep air pathways clean and avoid oil contamination from pump backflow.

No Air Flow at Outlet Despite Tank Pressure

Quick Check: Confirm tank gauge shows pressure but outlet delivers weak or no air.

Fix Suggestion: Check regulator passage for obstruction or diaphragm failure inside the manifold.

Prevention Tip: Dran tank moisture regularly to prevent corrosion buildup in air passages.

Unloader Failure After Compressor Shutdown

Quick Check: Listen for trapped air near the pump head after the motor stops.

Fix Suggestion: Inspect unloader port inside the manifold for sticking or blockage, Replace the manifold if internal unloader passage is not releasing pressure.

Prevention Tip: Allow compressor to shut off fully under normal cycle instead of manual interruption.

Erratic or Jumping Pressure Gauge Readings

Quick Check: Watch gauge movement during steady tank pressure conditions.

Fix Suggestion: Inspect gauge port connection for partial blockage or air restriction, Replace manifold assembly if internal sensing channel is inconsistent.

Prevention Tip: Ensure only compatible gauges are used with correct port sizing.

Customer Experience: Many compressor owners installing the Powermate E101951 manifold assembly reported smoother air distribution and elimination of pressure loss caused by damaged or leaking manifold sections.

• Will the Powermate E101951 Air Compressor Manifold Assembly fit multiple Powermate compressor models?

  The manifold assembly is designed for compatible Powermate air compressor systems using the same mounting layout and airflow configuration. Verify model compatibility before installation.

• Powermate E101951 Air Compressor Manifold Assembly is leaking air-what causes this?

  Air leakage is typically caused by worn internal seals, cracked housing, or damaged threaded ports. If tightening external fittings does not stop the leak, the internal manifold structure is likely compromised.

• Can I replace the Powermate manifold assembly myself?

  Replacement is generally DIY-friendly and involves disconnecting air lines, removing the existing control block, and reinstalling the new assembly with proper sealing and secure fitting alignment.

• What is the function of the Powermate E101951 Air Compressor Manifold Assembly?

  This assembly distributes compressed air between the tank, regulator, pressure switch, gauges, and outlet ports. It ensures proper pressure control, safe shutdown unloading, and consistent airflow delivery to connected tools.
