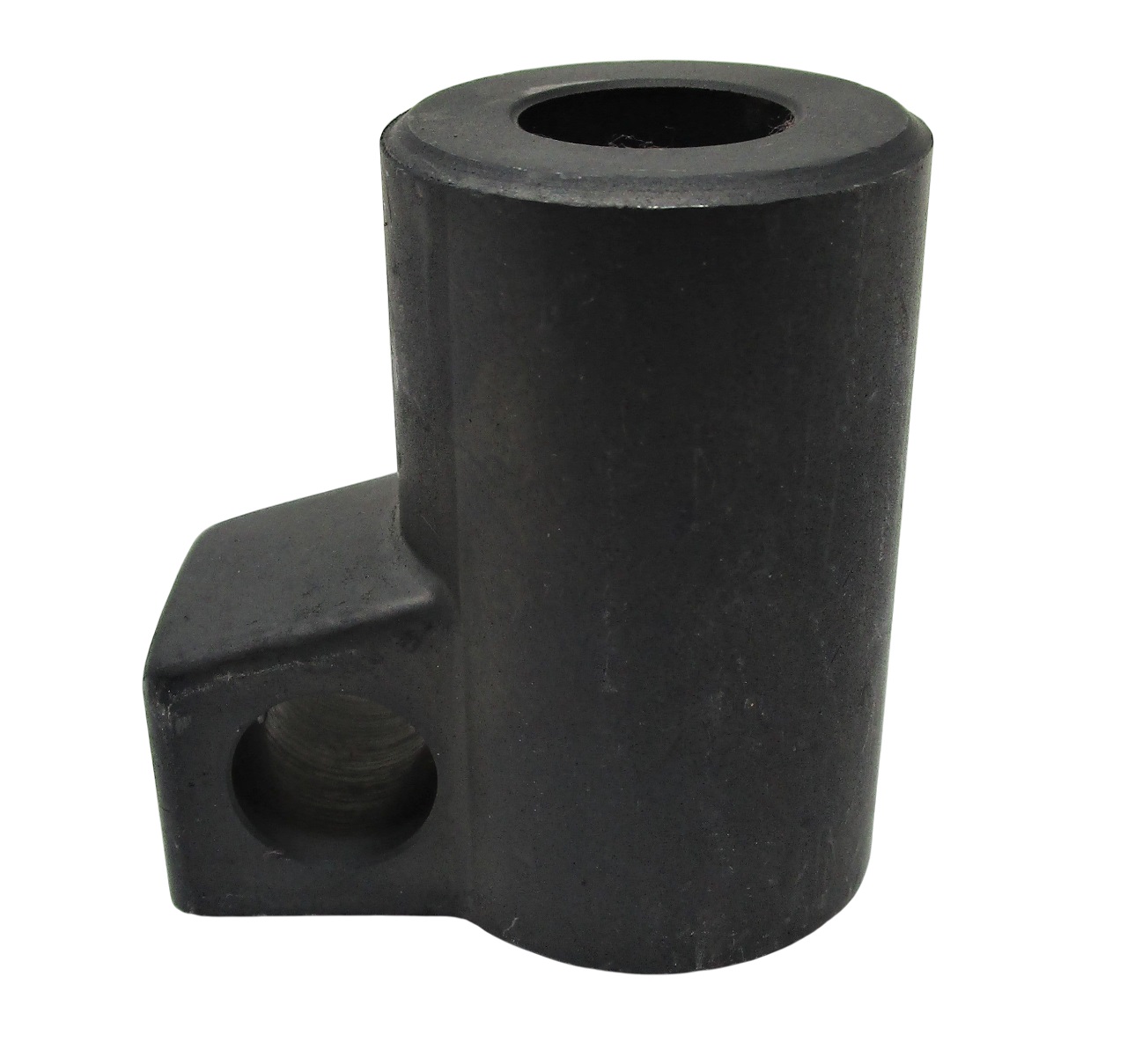

Powermatic 701-149B Benchtop Mortiser Handle Hub
Specifications:
| Attribute | Details |
|---|---|
| Brand | Powermatic |
| Part Number | 701-149B |
| Component | Handle Hub |
Description
Dimensions:
- Weight: 1 lbs
Product Overview:
Controls the connection between the operating handle and the pinion-shaft mechanism within the mortiser's handle assembly. The Powermatic 701-149B Handle Hub provides the mounting point that holds the handle in position and allows manual movement to pass into the head-positioning mechanism. It works with the handle, pinion shaft, and associated mounting components to maintain the required mechanical connection during operation.
Handle Connection:
Connects the operating handle to the pinion-shaft mechanism. The hub provides the mounting location required for the handle and keeps the connected components secured during manual operation.
Head Positioning:
Transfers manual movement from the operating handle into the pinion-shaft mechanism used to position the mortiser head. Proper hub condition allows the handle movement to reach the connected positioning components without excessive unwanted movement.
Replacement Guidelines:
Replace the Handle Hub if it is cracked, broken, bent, damaged, excessively worn, or no longer securely connects and supports the handle components. The SKU 701-149B should be verified before replacement to ensure the correct handle hub is selected. Replace the hub if deterioration affects handle alignment, secure attachment, stability, operator control, or normal equipment operation.
Common Signs of Wear:
- Cracks or visible damage.
- Deformation of the hub.
- Excessive looseness at the handle connection.
- Abnormal handle movement.
- Difficulty keeping the handle securely positioned.
- Visible wear around mounting areas.
- Increased movement during head adjustment.
Equipment Compatibility:
The Powermatic 701-149B Handle Hub is intended for selected mortising equipment applications. Verify the exact equipment model, part number, handle assembly, and applicable manufacturer parts documentation before purchasing.
-
What components connect to the 701-149B Handle Hub?
The hub connects the operating handle with the pinion-shaft mechanism and associated handle mounting components.
-
How does the handle hub support head positioning?
It allows manual handle movement to pass into the pinion-shaft mechanism used to position the mortiser head.
-
What can cause handle hub wear?
Repeated manual loading, movement, vibration, physical impact, and prolonged use can contribute to wear or deformation.
-
What signs may indicate a worn handle hub?
Excessive handle movement, looseness, visible cracking, deformation, or difficulty maintaining the handle's intended position may indicate hub deterioration.
-
When should the Powermatic 701-149B Handle Hub be replaced?
The handle hub should be replaced when it is cracked, damaged, excessively worn, or no longer securely supports the handle during normal equipment operation.
