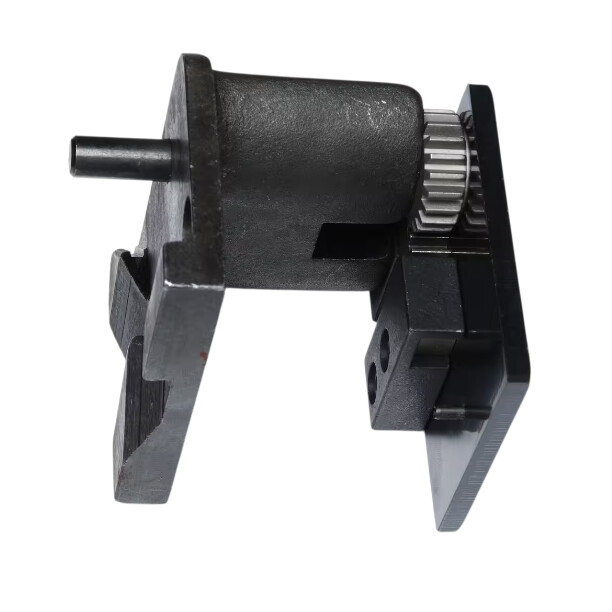

Powermatic PM9-PWBS14-193A Band Saw Adjusting Block Assembly

The Powermatic PM9-PWBS14-193A Band Saw Adjusting Block Assembly is a blade tension and tracking adjustment mechanism used in the PWBS-14 series band saw. This assembly includes internal moving components such as gears, blocks, shafts, and pins that help maintain proper blade tracking and tension alignment during operation.

This part fixes the following symptoms:

• Blade tracking adjustment not responding properly.

• Blade tension handle slipping or binding.

• Grinding or clicking noises from tension mechanism.

• Blade drifting off wheel center during operation.

• Broken or seized internal adjusting components.

Blade Tracking Will Not Adjust Correctly

Quick Check: Rotate the tracking adjustment and observe whether the blade position changes on the wheel.

Fix Suggestion: Inspect the adjusting block assembly for stripped gears, worn moving blocks, or damaged connecting shafts, Replace the full assembly if internal components are binding or skipping.

Prevention Tip: Avoid over-tightening blade tension beyond recommended operating range.

Tension Adjustment Feels Stuck or Rough

Quick Check: Turn the adjustment handle slowly and check for resistance or uneven movement.

Fix Suggestion: Inspect internal moving block and guide surfaces for debris, corrosion, or damaged pins, Lubricate moving contact points lightly during reassembly.

Prevention Tip: Periodically clean the tension adjustment housing to prevent sawdust buildup inside the mechanism.

Clicking or Grinding Noise During Adjustment

Quick Check: Listen for gear skipping or metal contact while adjusting blade tension.

Fix Suggestion: Inspect the internal gear and moving block assembly for worn teeth or misalignment, Replace damaged internal components before continued operation.

Prevention Tip: Make gradual tension adjustments rather than forcing the mechanism abruptly.

Blade Drifts Off Center While Running

Quick Check: Open the wheel cover and manually rotate the wheel to observe blade tracking position.

Fix Suggestion: Re-align the adjusting block assembly and verify the moving block travels smoothly without bindingConfirm blade guides are adjusted correctly after installation.

Prevention Tip: Inspect tracking adjustments regularly when changing blade widths or tension settings.

Customer Experience: Replacing the adjusting block assembly restored smooth blade tracking on my PWBS-14.

• Is the Powermatic PM9-PWBS14-193A Band Saw Adjusting Block Assembly compatible with all Powermatic band saw models?

  No. The Powermatic PM9-PWBS14-193A Band Saw Adjusting Block Assembly is designed for specific Powermatic band saw models. Always verify compatibility using your machine model number and parts diagram before ordering.

• Why is my Powermatic band saw blade no longer tracking correctly?

  Blade tracking problems can occur when the adjusting block assembly develops worn gears, damaged moving blocks, or internal alignment issues. These failures may prevent smooth tracking adjustment and stable blade positioning during operation.

• Can I replace the Powermatic PM9-PWBS14-193A assembly myself?

  Experienced users can typically replace the assembly using the machine's exploded parts diagram and standard hand tools. Careful alignment of the moving block, shaft, and gear components is important during reassembly.

• What does the Powermatic Adjusting Block Assembly do?

  The assembly controls blade tension and tracking movement inside the band saw. It helps position the blade correctly on the wheels and allows smooth adjustment for accurate cutting performance and reduced blade drift.
