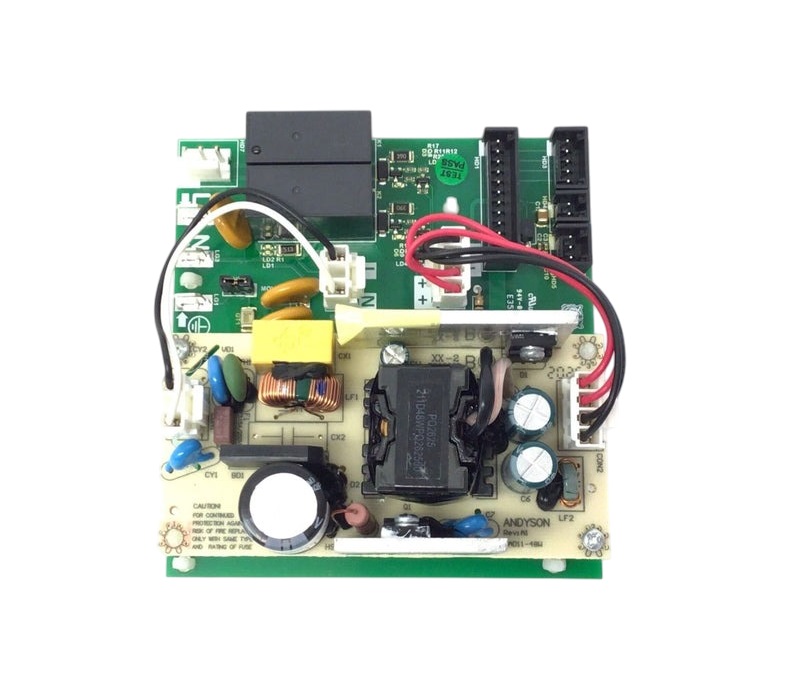

Proform 416695 Control Board

The Proform 416695 Control Board manages electronic communication between controls and connected equipment systems, helping coordinate operation, settings, and machine response during workouts.

This component may fix the following issues:

• Lift system does not respond.

• Elliptical controls stop reacting.

• Equipment operation cuts out.

• Connector becomes loose.

• Board has signs of overheating.

Lift System Failure

Quick Check: Activate the lift control and check whether the frame begins to move.

Fix Suggestion: Inspect the board, lift connections, and related wiring for faults.

Prevention Tip: Check the lift-control connections during scheduled servicing.

Unresponsive Controls

Quick Check: Press several controls and compare their responses.

Fix Suggestion: Examine the control board and its connectors for loose or damaged connections.

Prevention Tip: Keep the electronic connections properly seated.

Sudden Operation Loss

Quick Check: Note whether the equipment stops while operating normally.

Fix Suggestion: Inspect the board area and connected wiring for an intermittent connection.

Prevention Tip: Investigate repeated shutdowns rather than continuing to use the equipment without inspection.

Overheated Board Area

Quick Check: After disconnecting power, visually inspect the board for heat marks or damaged components.

Fix Suggestion: Replace the board if it has confirmed physical or electrical damage.

Prevention Tip: Keep the electronic compartment clean and protected from moisture.

Customer Experience: One owner installed the Proform control board during an elliptical repair and reported that the lift controls were responding normally.
