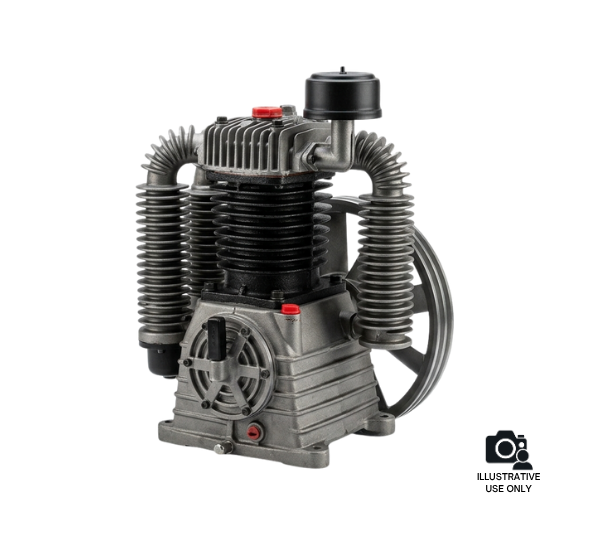

Rolair PMP22K50CH Compressor 2-Stage Pump W/Flywheel

The Rolair PMP22K50CH is a heavy-duty two-stage belt-drive compressor pump designed for high airflow and continuous-duty industrial use. It includes a large 17.72" flywheel that helps stabilize RPM and maintain smooth compression cycles under load.

Common Issues Linked to This Pump:

• Slow tank fill despite motor running normally.

• Excessive vibration from the pump and flywheel assembly.

• Unusual knocking or metallic pump noise.

• High discharge temperature during operation.

• Reduced CFM output at working pressure.

Slow Pressure Build or Weak Output

Quick Check: Measure tank fill time and compare it to rated performance under similar load conditions.

Fix Suggestion: Inspect piston rings, valve reeds, and cylinder sealing surfaces in the PMP22K50CH pump; worn components reduce compression efficiency even if the flywheel spins normally.

Prevention Tip: Maintain correct oil level (splash-lubricated system) and replace compressor oil at recommended intervals to preserve sealing performance.

Excessive Vibration or Flywheel Wobble

Quick Check: Observe flywheel rotation for side-to-side movement or belt tracking instability.

Fix Suggestion: A misaligned or damaged 17.72" flywheel on the Rolair PMP22K50CH can cause imbalance; inspect keyway seating and replace if cracks or warping are present.

Prevention Tip: Ensure proper belt tension and alignment during installation to reduce uneven load on the flywheel.

Knocking or Mechanical Noise from Pump

Quick Check: Listen for rhythmic tapping or knocking that increases with RPM.

Fix Suggestion: Check connecting rod bearings and valve plate assembly inside the PMP22K50CH pump; internal wear can amplify noise under compression load.

Prevention Tip: Avoid running the pump under prolonged overload conditions that increase crankcase stress.

Overheating During Continuous Operation

Quick Check: Monitor pump head temperature after extended runtime.

Fix Suggestion: Restricted airflow, low oil levels, or worn piston rings in the PMP22K50CH can increase friction and heat; servicing internal components restores cooling efficiency.

Prevention Tip: Keep intake filters clean and ensure proper ventilation around the compressor unit.

Customer Experience: Replacing the Rolair PMP22K50CH 2-Stage Compressor Pump W/Flywheel restored strong air output and reduced the excessive vibration that had developed after years of heavy compressor use.

• Is the Rolair PMP22K50CH 2-Stage Compressor Pump W/Flywheel compatible with all Rolair air compressors?

  No. This pump assembly is designed for specific compatible Rolair compressor models. Confirm compatibility using your compressor model number before ordering.

• What should I check if the Rolair PMP22K50CH 2-Stage Compressor Pump W/Flywheel does not resolve low-pressure issues?

  Inspect the intake filter, check valve, pressure switch, air lines, and tank fittings for restrictions, leaks, or additional worn components affecting performance.

• Can I replace this 2-stage compressor pump myself?

  Users with mechanical experience can generally replace the 2-stage compressor pump themselves using proper tools and safety procedures. Always disconnect power, release all tank pressure, and follow the manufacturer's service instructions before beginning the installation.

• What is the purpose of the Rolair PMP22K50CH 2-Stage Compressor Pump W/Flywheel?

  This pump assembly compresses air through a two-stage process for efficient pressure generation, while the flywheel supports smooth operation and assists with pump cooling during use.
