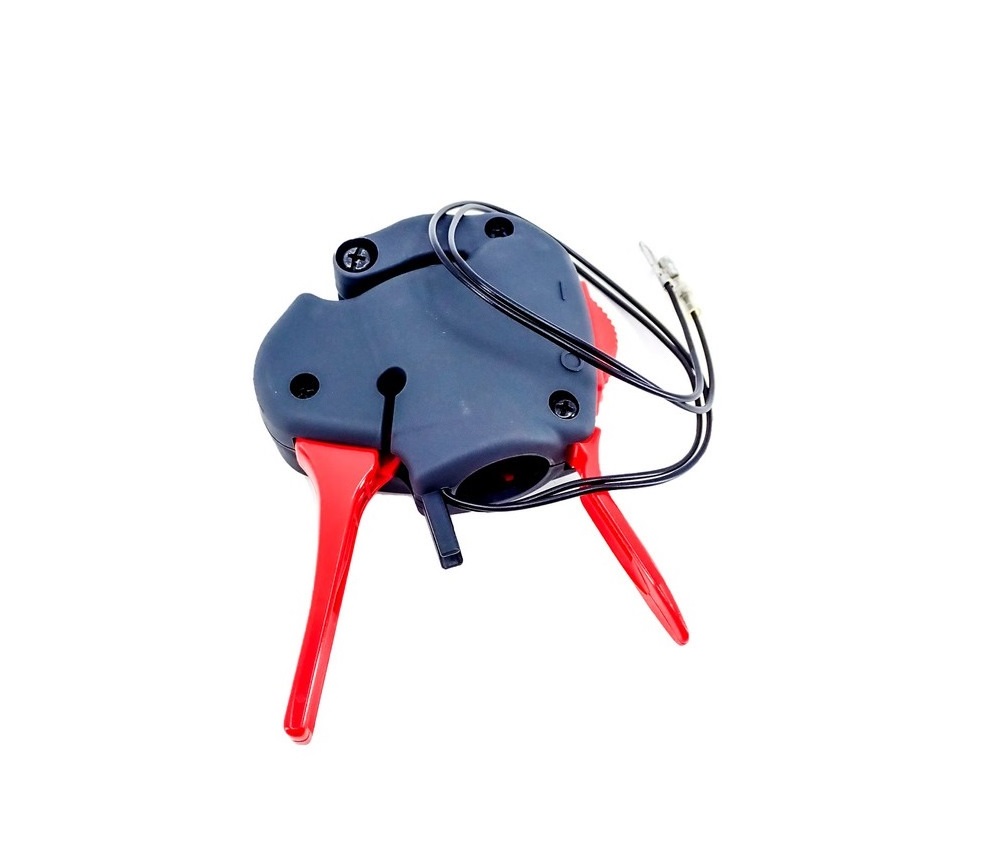

Shindaiwa C044000350 Trimmer Throttle Control Assembly

Product Overview:

Controls throttle input on a compatible Shindaiwa trimmer by providing the operator interface for changing the engine's operating response. The Shindaiwa C044000350 Trimmer Throttle Control Assembly forms part of the trimmer's throttle linkage arrangement, transmitting operator movement toward the associated engine control mechanism. Positioned at the operator control area, the assembly provides direct access to the throttle during operation.

Throttle Response Control:

The throttle control assembly provides the control point through which the operator adjusts throttle input during trimmer operation. Its movement is transferred through the connected control mechanism, allowing the operator's input to reach the associated engine throttle components.

Engine Speed Adjustment:

The assembly supports engine speed adjustment by transferring operator throttle movement through the trimmer's control linkage. This allows changes in throttle input to produce the corresponding movement within the engine control mechanism during operation.

Replacement Guidelines:

Replace the Shindaiwa C044000350 Trimmer Throttle Control Assembly when cracks, deformation, sticking movement, damaged attachment points, worn linkage interfaces, or other deterioration affects its intended throttle-control function. Inspect the throttle control assembly and related control areas for conditions that could affect throttle movement. Replace the component when it can no longer provide its intended control function within the trimmer assembly.

Common Failure Symptoms:

• Throttle control does not respond correctly.
• Control movement becomes stiff or inconsistent.
• Throttle assembly shows visible cracks or damage.
• Excessive movement develops at the control or linkage connection.
• Engine response does not correspond consistently with throttle input.

Equipment Compatibility:

The Shindaiwa C044000350 is identified as a Trimmer Throttle Control Assembly for compatible Shindaiwa trimmer applications. Match part number C044000350 with the applicable trimmer model, throttle control configuration, linkage arrangement, mounting interface, and manufacturer parts documentation before purchase.

The Shindaiwa C044000350 Trimmer Throttle Control Assembly transfers trigger movement to the throttle, allowing the operator to adjust engine speed and maintain controlled cutting during trimming.

This Part Fixes the Following Symptoms:

• Trigger movement feels rough or restricted.

• Throttle response is weak or delayed.

• Trigger does not release normally.

• Control assembly shifts at the handle.

• Engine speed does not follow throttle input.

Rough Trigger Operation

Quick Check: Slowly press and release the trigger to identify rubbing, stiffness, or interrupted movement.

Fix Suggestion: Renew the throttle control assembly when worn internal or mounting components prevent free trigger movement.

Prevention Tip: Remove grass clippings and dirt from the handle area after trimming.

Weak Throttle Response

Quick Check: Apply the trigger while observing whether the throttle mechanism responds through its normal range.

Fix Suggestion: Secure the linkage and adjust its positioning if the control connection has shifted.

Prevention Tip: Avoid storing the trimmer with pressure placed against the throttle trigger.

Trigger Return Failure

Quick Check: Release the trigger and confirm that it returns to its resting position without assistance.

Fix Suggestion: Service the control assembly and replace damaged components that prevent normal trigger return.

Prevention Tip: Do not operate the trimmer if the throttle trigger cannot return normally.

Handle Mounting Looseness

Quick Check: Apply light hand pressure around the throttle housing and look for unwanted movement.

Fix Suggestion: Tighten the mounting area or fit the throttle assembly if the existing housing is damaged.

Prevention Tip: Recheck handle-control mounting during scheduled trimmer maintenance.

Customer Experience: After replacing the throttle control assembly, the trimmer's handle control transfers trigger movement to the throttle mechanism, allowing the operator to adjust engine speed through the handle during trimming.

• What should be inspected on the throttle control assembly during maintenance?

  Inspect the control mounting position, linkage joints, and connection points for wear or conditions that could affect throttle movement.

• How can wear across multiple throttle linkage joints affect throttle response?

  Wear at several connection points can add free movement throughout the control path, reducing the amount of operator movement directly transferred to the engine mechanism.

• How does throttle control travel affect engine throttle movement?

  Control travel determines how far the linkage moves in response to operator input, affecting how directly movement reaches the engine throttle mechanism.

• What can happen when the throttle linkage reaches its travel limit?

  The connected engine control may not complete its intended movement, changing how operator input is transferred through the throttle-control arrangement.

• How can I confirm the correct Shindaiwa C044000350 throttle control assembly before purchasing?

  Check the Shindaiwa part number C044000350 against the applicable trimmer parts documentation before purchasing.
