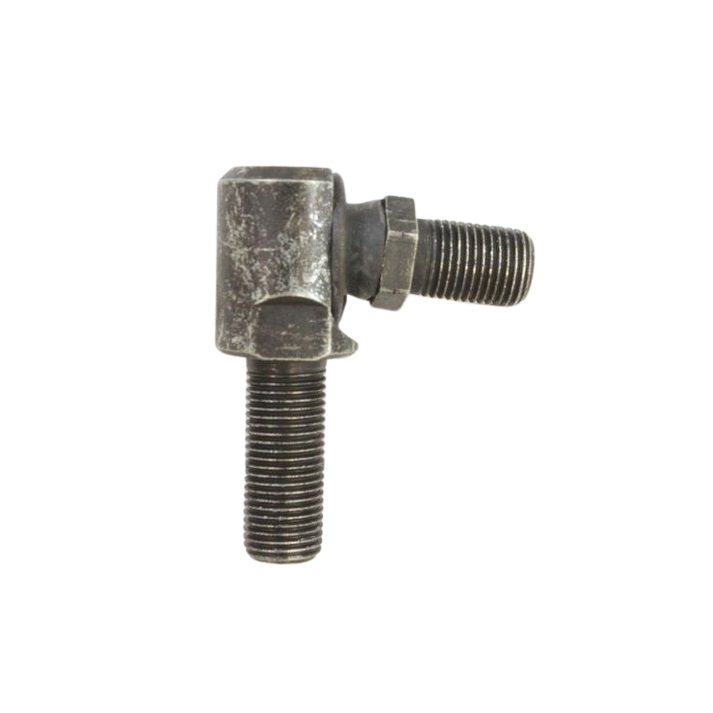

Simplicity 2164272SM Lawn Tractor Ball Joint

Product Overview:

Provides a pivoting connection within the steering linkage of compatible Simplicity lawn tractors, allowing adjoining linkage components to articulate while remaining mechanically connected. The Simplicity 2164272SM Lawn Tractor Ball Joint occupies a movable connection point within the steering system where controlled angular movement is required between connected parts.

Pivoting Linkage Connection:

The ball-and-socket joint allows connected steering linkage components to change angular position while maintaining their mechanical connection. As the linkage moves, the joint accommodates changes in alignment between adjoining components and transfers movement through the connection. This articulation allows the steering linkage to move through its operating range without requiring the connected parts to remain on a fixed axis.

Replacement Guidelines:

Replacement is recommended for the Simplicity 2164272SM Lawn Tractor Ball Joint when deterioration or physical damage prevents the joint from maintaining its intended mechanical relationship with connected steering linkage components. The joint should be considered unsuitable for continued service when its condition compromises the required articulating connection.

Common Failure Symptoms:

• Excessive play in the steering linkage.
• Loose ball-and-socket connection.
• Stiff or restricted steering movement.
• Clicking or knocking noises during steering.
• Damaged or worn threaded mounting area.
• Visible cracking, corrosion, or deformation of the ball joint.

Equipment Compatibility:

The Simplicity 2164272SM Lawn Tractor Ball Joint is intended for lawn tractor applications that specify this part. Verify the part number, lawn tractor model, and applicable manufacturer parts documentation before purchasing to confirm that this ball joint is specified for the intended equipment.

• How does the Simplicity 2164272SM accommodate angular movement?

  The 2164272SM uses a ball-and-socket interface that allows connected linkage components to change angular position while remaining mechanically connected.

• What is the difference between the 2164272SM ball joint and a steering linkage rod?

  The ball joint provides an articulating connection between components, while a steering linkage rod serves as the connecting member that transfers movement through the steering mechanism.

• Why does a ball joint use a ball-and-socket construction?

  The ball-and-socket arrangement permits movement through changing angles without requiring adjoining linkage components to remain on a fixed axis.

• What role does the mounting connection play on the ball joint?

  The mounting connection secures the ball joint to the associated linkage structure, while the ball-and-socket interface provides the movable connection.

• Why can a steering linkage require articulating joints at multiple locations?

  Multiple articulating joints allow different linkage sections to change position relative to one another as the steering mechanism moves through its operating range.
