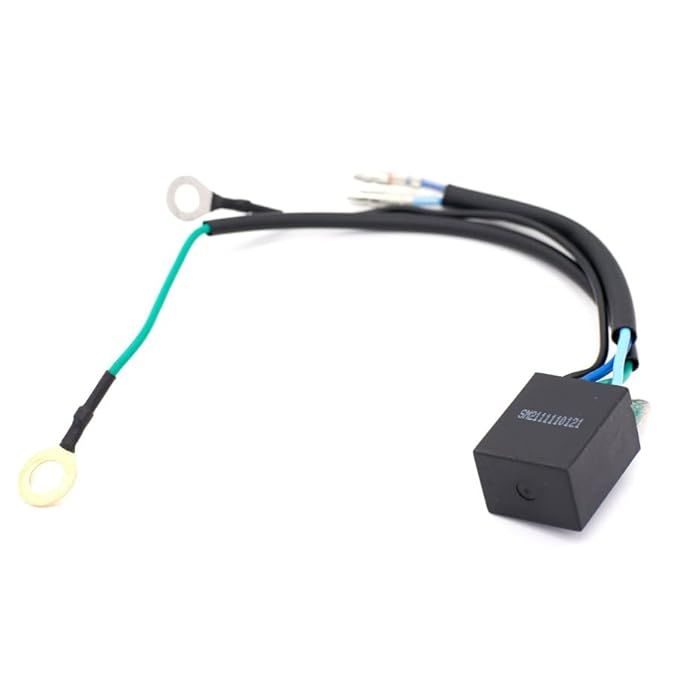

Subaru / Robin 277-71401-01 Diode Rectifier CP

Product Overview:

Converts alternating electrical output into controlled direct current within a compatible Subaru / Robin engine charging system. The Subaru / Robin 277-71401-01 Engine Diode Rectifier CP provides the rectification stage between the AC-generating circuit and connected DC electrical components, supporting controlled current flow as part of the engine's charging arrangement.

Rectification Operation:

Converting alternating electrical output into a form suitable for the engine's DC electrical circuit, the diode rectifier directs electrical current through its rectifying path. This conversion supports the electrical supply required by connected components within the engine electrical system. The rectifier maintains the intended electrical path between the generating circuit and DC-side components during operation.

Electrical Current Control:

Controlling the direction of electrical current within the circuit, the diode rectifier permits current to pass through the intended electrical path while restricting reverse current flow. Its placement within the control box assembly connects the rectification component with the surrounding electrical wiring and related engine controls. This supports the intended current direction within the engine's charging circuit.

Replacement Guidelines:

Replace the Subaru / Robin 277-71401-01 Engine Diode Rectifier CP when damaged terminals, visible cracking, heat-related marks, loose connections, or other deterioration affects its intended electrical rectification or current-control function. Inspect the rectifier and related charging-system areas for conditions that could affect electrical operation. Replace the component when it can no longer maintain its intended function within the engine charging system.

Common Failure Symptoms:

• Charging-system operation becomes inconsistent.
• DC-side electrical components do not receive the expected charging output.
• Rectifier shows visible cracking or heat-related damage.
• Terminals or electrical connections become loose.
• Charging-circuit operation becomes intermittent.

Equipment Compatibility:

The 277-71401-01 is identified as an Engine Diode Rectifier CP for a compatible Subaru / Robin engine charging system. Compatibility depends on the applicable engine model, rectifier configuration, terminal arrangement, mounting interface, charging-circuit connections, and surrounding electrical components. Match these details with the manufacturer's parts documentation before purchase.

• What should be inspected on the diode rectifier during maintenance?

  Inspect the rectifier terminals and electrical connections for increased resistance, connection changes, or other conditions that may affect current transfer.

• How can repeated thermal cycling affect rectifier electrical connections?

  Repeated heating and cooling can place stress on electrical interfaces and may contribute to changes in connection condition over time. What can happen when one diode in the rectification path stops conducting? A failed conduction path can change the amount and pattern of current transferred from the generating circuit to the DC-side circuit.

• How can diode leakage affect the engine rectifier's DC charging path?

  Unwanted reverse current through a compromised diode can change the intended current direction and affect the electrical relationship between the rectifier and connected DC components.

• Why should the Subaru / Robin 277-71401-01 part number be checked before replacing the diode rectifier?

  Match part number 277-71401-01 with the applicable Subaru / Robin engine model and manufacturer parts documentation to confirm the required charging-system configuration.
