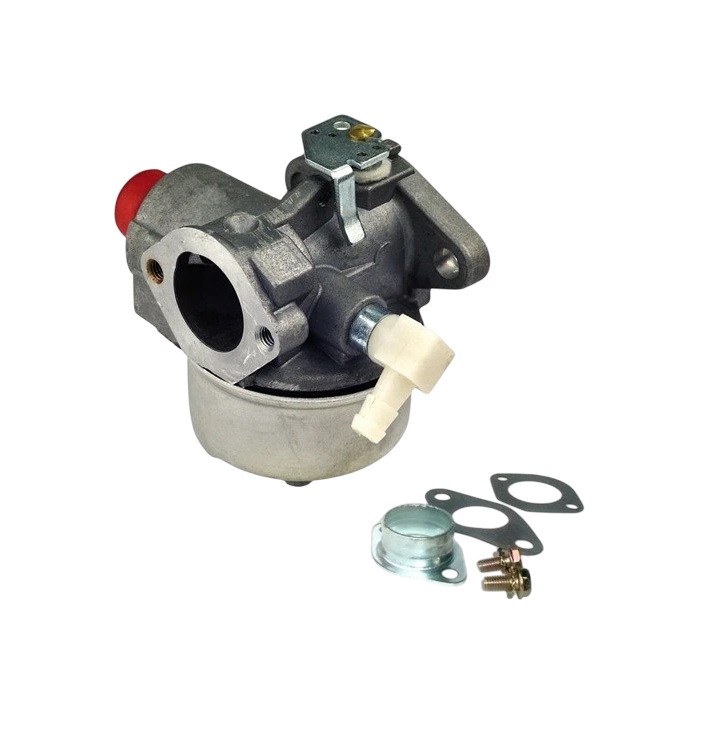

Tecumseh 632795A Engine Carburetor

The Tecumseh 632795A Lawn Mower Carburetor is used in lawn mower engines to regulate the fuel-air mixture. Fuel flow restrictions or carburetor blockages can affect engine operation.

Common Symptoms:

• Fuel passage becomes clogged.

• Float sticks during operation.

• Fuel inlet becomes restricted.

• Carburetor gasket leaks.

• Throttle linkage binds.

Fuel Passage Becomes Clogged

Quick Check: Inspect the carburetor fuel passages for varnish, debris, or other obstructions that may restrict fuel flow.

Fix Suggestion: Remove accumulated deposits from the fuel passages, inspect the fuel line for contamination, and ensure fuel flows freely through the carburetor.

Prevention Tip: Use clean, fresh fuel and avoid storing fuel in the tank for extended periods.

Float Sticks During Operation

Quick Check: Examine the float for smooth movement and inspect the float bowl for contamination.

Fix Suggestion: Inspect the float and needle assembly for binding, ensure the float moves freely, and check the float height according to specifications.

Prevention Tip: Drain old fuel before long-term mower storage.

Fuel Inlet Becomes Restricted

Quick Check: Inspect the fuel inlet opening and fuel line for blockage or reduced fuel flow.

Fix Suggestion: Check the fuel line for kinks, inspect the inlet fitting for debris, and confirm fuel reaches the carburetor without restriction.

Prevention Tip: Replace damaged fuel lines and use clean fuel during operation.

Carburetor Gasket Leaks

Quick Check: Inspect the carburetor gasket for fuel seepage, damage, or improper seating.

Fix Suggestion: Reseat the gasket evenly, inspect the mounting surfaces for damage, and tighten the mounting fasteners to the recommended specification.

Prevention Tip: Inspect the gasket whenever the carburetor is removed for service.

Customer Experience: The Tecumseh 632795A Lawn Mower Carburetor resolved inconsistent fuel delivery and restored smooth engine operation after replacing the worn carburetor.
