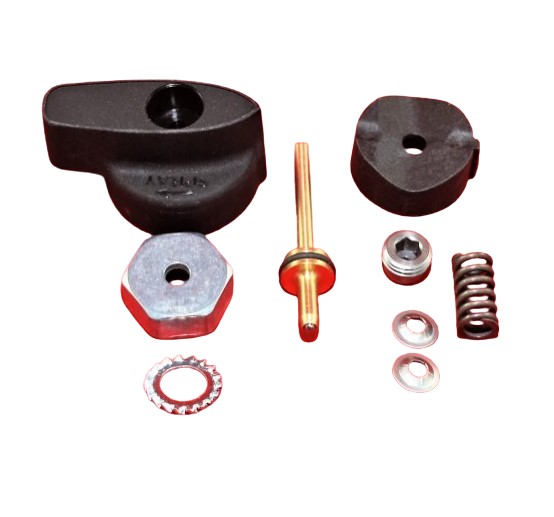

Titan 516761 Paint Sprayer Prime Spray Valve Assembly

The Titan 516761 Paint Sprayer Prime Spray Valve Assembly directs coating material through the sprayer’s prime and spray pathways, supporting controlled switching between operating modes.

Common Issues or Common Symptoms:

• Sprayer remains difficult to prime.

• Paint continues returning through the prime path.

• Valve handle feels loose or difficult to move.

• Spray pressure becomes inconsistent.

• Valve assembly develops fluid leakage.

Difficult Priming

Quick Check: Check whether the valve moves correctly between Prime and Spray positions without sticking.

Fix Suggestion: Inspect the valve assembly for contamination, wear or restricted movement affecting proper fluid direction.

Prevention Tip: Clean the sprayer and follow the manufacturer's maintenance procedure after spraying.

Paint Returns Through Prime Path

Quick Check: Observe whether material continues flowing through the return path after switching to spray.

Fix Suggestion: Inspect the valve seat, stem and related sealing components for wear or contamination.

Prevention Tip: Keep coating material from drying around the prime valve during maintenance.

Loose Valve Handle

Quick Check: Move the valve handle and check for excessive looseness or abnormal movement.

Fix Suggestion: Inspect the handle and connected valve components for worn or loose parts.

Prevention Tip: Operate the Prime/Spray control without excessive force.

Inconsistent Spray Pressure

Quick Check: Check valve positioning and inspect the assembly for leakage or incomplete switching.

Fix Suggestion: Clean accessible valve components and inspect the assembly for wear affecting fluid control.

Prevention Tip: Confirm the valve reaches its intended PRIME or SPRAY position before operation.

Customer Experience: A customer reported smoother switching between priming and spraying after installing the Titan 516761 Prime Spray Valve Assembly.
