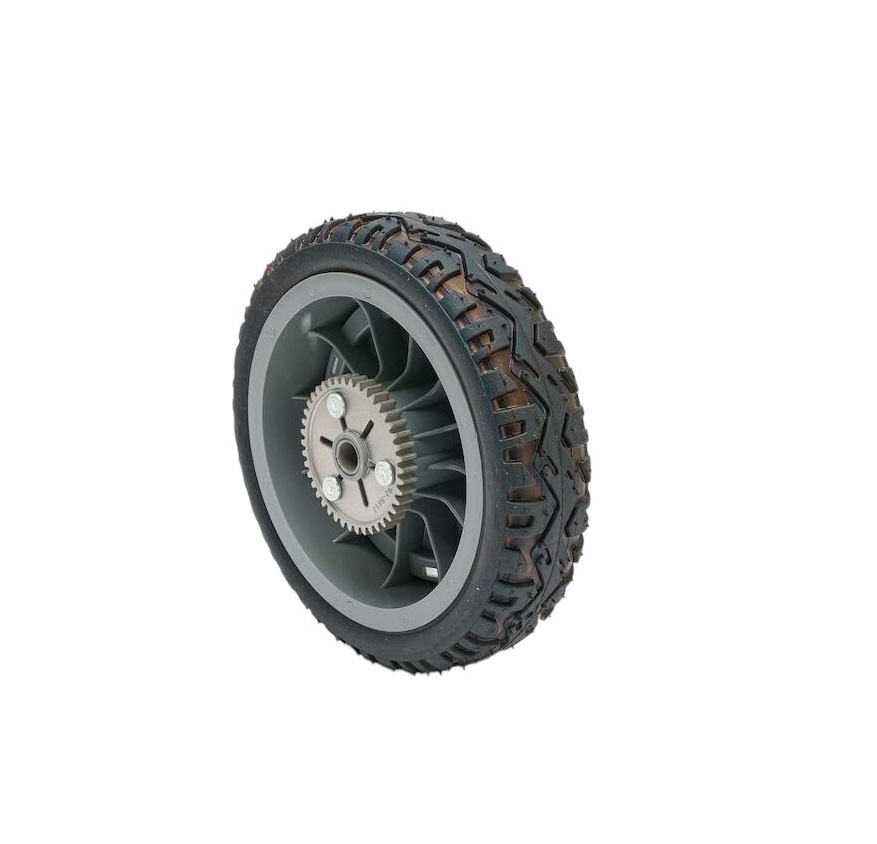

Toro 107-3709 Lawn Mower Geared Rear Drive Wheel 8"

Product Overview:

Serves as a geared wheel assembly within a Toro lawn mower, the Toro 107-3709 Lawn Mower Wheel Gear Assembly combines the wheel and gear components into one mechanical unit. The wheel provides the mower's rolling contact with the ground, while the integrated gear forms part of the mechanism that supports powered wheel movement. Together, these elements allow the assembly to perform its wheel-supporting and drive-related functions during mower operation.

Gear Assembly Design:

Combines the wheel structure with an integrated gear section designed to function as one assembly within the mower's wheel-drive arrangement. The geared portion is positioned as part of the wheel assembly rather than functioning as a separate external component. This arrangement allows the wheel and gear to work together as the mower's drive movement is transmitted through the wheel assembly.

Drive Gear Function:

Receives mechanical movement from the mower's associated drive mechanism and transfers that movement through the wheel assembly. The gear provides the engagement point needed for the wheel to participate in the mower's driven movement. Proper gear engagement allows rotational force to reach the wheel and supports controlled movement of the lawn mower across the ground.

Replacement Guidelines:

Replacement of the Toro 107-3709 Lawn Mower Wheel Gear Assembly is recommended when gear wear, wheel damage, cracking, deformation, or other deterioration affects its wheel-supporting or drive-related function.

Common Failure Symptoms:

• The mower may have difficulty moving through its driven wheel system when the gear section becomes excessively worn.
• Wheel movement may become inconsistent when the gear does not engage properly with the drive mechanism.
• The wheel may fail to respond normally to drive movement when the geared section is damaged.
• Cracks or deformation in the wheel assembly can affect normal rolling movement.
• Excessive wear around the gear section can interfere with engagement with connected drive components.
• Unusual movement or looseness at the wheel may indicate deterioration of the wheel gear assembly.

Equipment Compatibility:

The Toro 107-3709 Lawn Mower Wheel Gear Assembly should be selected by verifying the 107-3709 part number, specific lawn mower model, and existing wheel-drive configuration. Check the equipment's manufacturer documentation to confirm that this wheel gear assembly is specified for the intended mower before purchasing.

The Toro 107-3709 Lawn Mower Geared Rear Drive Wheel 8" improves self-propelled mower operation by correcting worn gear control, poor traction, inconsistent wheel drive, and uneven rear wheel movement.

Common symptoms:

• Rear drive wheel slips under load.

• Self-propel system loses traction.

• Worn wheel gear teeth.

• Uneven rear wheel movement.

• Reduced mower drive performance.

Rear Wheel Slipping

Quick Check: Engage self-propel while watching rear wheel movement on flat surface.

Fix Suggestion: Seat geared wheel completely onto axle until rotation feels positive securely.

Prevention Tip: Remove dirt from wheel gear area after each mowing session regularly.

Poor Self-Propel Performance

Quick Check: Compare rear wheel response while activating drive control across level ground.

Fix Suggestion: Align drive gear carefully before fastening wheel onto axle correctly together.

Prevention Tip: Avoid forcing mower through deep grass for extended operating periods.

Uneven Rear Wheel Movement

Quick Check: Roll mower manually verifying both rear wheels rotate at matching speeds.

Fix Suggestion: Position wheel squarely allowing gear teeth to mesh evenly during operation.

Prevention Tip: Keep axle surfaces free from hardened grass and accumulated debris always.

Worn Drive Gear Normal

Quick Check: Examine internal gear area for rounded teeth during wheel removal process.

Fix Suggestion: Restore proper wheel placement ensuring complete gear contact under driving loads.

Prevention Tip: Clean drive components routinely to minimize premature gear surface wear developing.

Customer Experience: After replacing the geared rear drive wheel, the self-propel feature operated consistently, and the mower moved smoothly across level and slightly uneven sections of the yard.

• What is a wheel gear assembly on a lawn mower?

  A wheel gear assembly is a wheel unit that incorporates a gear section, allowing the wheel to serve as both a ground-contact component and part of the mower's mechanical drive arrangement.

• What is the purpose of the gear built into a mower wheel?

  The integrated gear provides the mechanical interface through which movement from the mower's drive system can be transferred to the wheel.

• Is a wheel gear assembly different from a standard lawn mower wheel?

  Yes. A wheel gear assembly includes a geared mechanism as part of the wheel unit, allowing it to participate in mechanically driven wheel movement rather than serving only as a rolling support.

• Where does the wheel gear assembly fit into mower operation?

  The assembly functions at the wheel and drive interface, connecting the mower's mechanical drive movement with the wheel that contacts the ground.

• What is the function of the Toro 107-3709 Wheel Gear Assembly?

  The Toro 107-3709 combines the mower wheel and integrated gear into one assembly, supporting ground contact while allowing mechanical drive movement to be transferred through the wheel.
