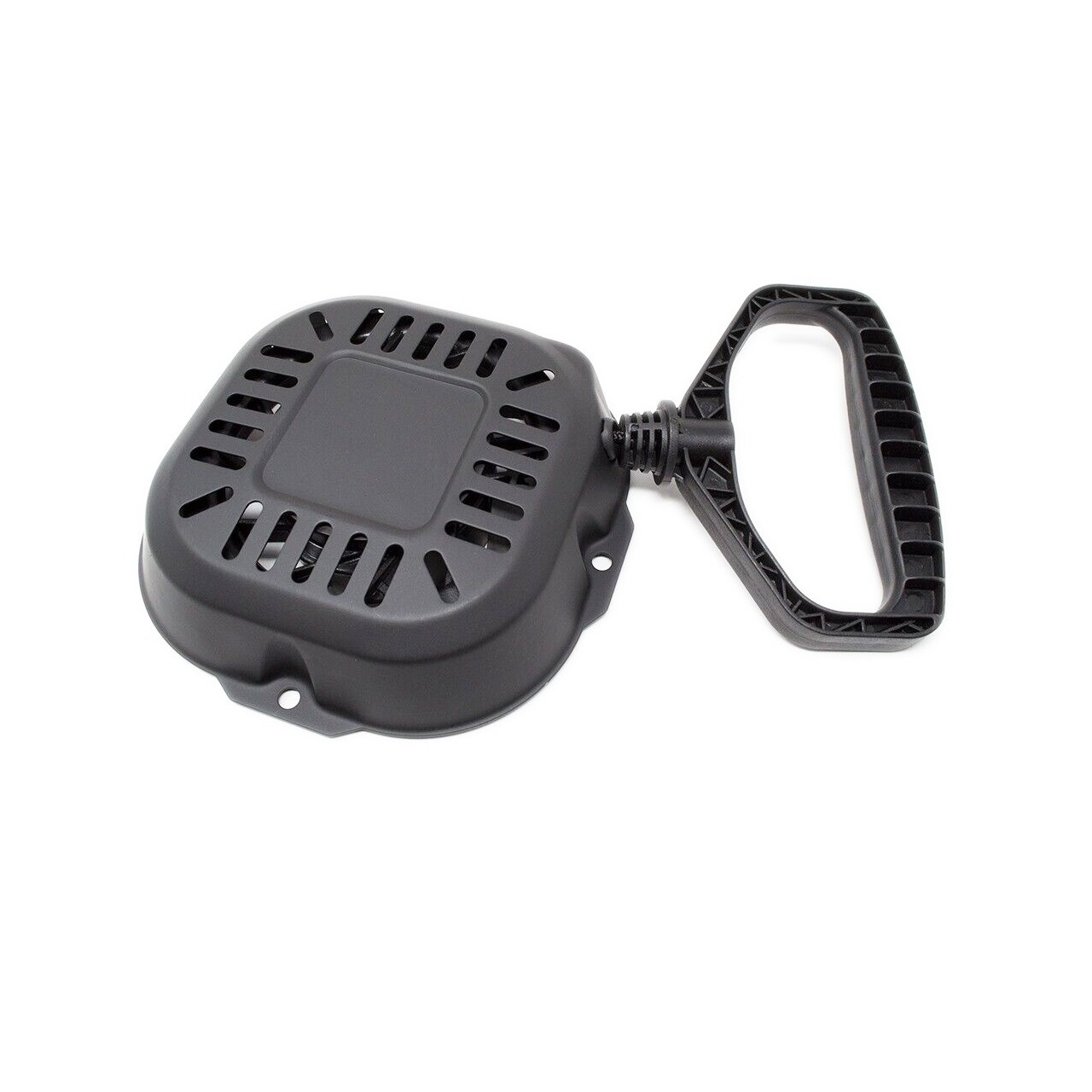

Toro 127-9109 Snow Blower Recoil Starter Assembly

Product Overview:

Initiates engine starting through a manual pull-start mechanism, allowing the operator to crank the snow blower engine when starting the machine. The OEM Toro 127-9109 Recoil Starter Assembly integrates the starter handle, pull cord, and recoil mechanism to support smooth engagement and dependable starting operation.

Manual Engine Starting:

Provides the mechanical action needed to crank the engine during manual starting. The recoil mechanism engages during the pull stroke, helping transfer pulling force to the engine’s starting system.

Handle and Pull-Cord Operation:

The starter handle provides a grip for applying pulling force, while the cord transfers that force to the internal mechanism. Proper cord movement and handle condition contribute to comfortable, consistent starting operation.

Replacement Guidelines:

Switch off the engine and allow hot components to cool before servicing. Follow the manufacturer’s safety instructions and installation procedure. Compare the replacement assembly with the original unit, verify the mounting points and starter engagement interface, and secure all fasteners correctly. After installation, check cord extension and retraction before starting the engine according to the equipment’s operating instructions.

Common Signs of Wear:

• Starter cord does not retract smoothly
• Pull handle or cord shows visible wear
• Recoil mechanism feels rough during operation
• Starter engagement is inconsistent
• Cord becomes difficult to pull or extend
• Starter assembly makes unusual noises during use

Equipment Compatibility:

The Toro 127-9109 Recoil Starter Assembly is an OEM replacement part for compatible Toro snow blower applications. Confirm that part number 127-9109 is listed for the specific equipment model and serial number in the manufacturer’s official parts documentation before ordering.

The Toro 127-9109 Snow Blower Recoil Starter Assembly engages the crankshaft through a pull-start mechanism, allowing manual engine ignition in cold conditions. Worn recoil springs, damaged pawls, or frayed starter ropes can prevent effective engine cranking.

Common Issues:

• Pull cord does not retract after starting.

• Starter handle becomes difficult to pull.

• Recoil mechanism fails to engage the engine.

• Starter rope becomes damaged or worn.

• Engine cannot be started using the recoil system.

Starter Rope Does Not Retract

Quick Check: Inspect the Toro 127-9109 Recoil Starter Assembly for rope binding, damaged components, or weak recoil action.

Fix Suggestion: Examine the rope path, check the recoil spring operation, and remove any obstruction affecting retraction.

Prevention Tip: Avoid pulling the starter rope beyond its normal extension range during engine starting.

Difficult Pull Starting

Quick Check: Check the recoil handle movement and inspect the starter assembly for resistance or misalignment.

Fix Suggestion: Inspect starter engagement components, secure mounting points, and ensure smooth movement of the recoil mechanism.

Prevention Tip: Perform seasonal checks on the starter assembly before storing the snow blower.

Recoil Starter Does Not Engage Engine

Quick Check: Observe whether the starter pawls or engagement components connect properly during pulling.

Fix Suggestion: Inspect the starter engagement area, check for damaged internal parts, and correct alignment issues.

Prevention Tip: Keep the starter housing protected from moisture and debris buildup.

Damaged Starter Rope

Quick Check: Examine the rope for fraying, stretching, or broken strands near the handle and pulley area.

Fix Suggestion: Inspect the complete recoil assembly and replace the starter assembly if internal components are worn or damaged.

Prevention Tip: Use steady pulling motion instead of sudden force to reduce rope and spring stress.

Customer Experience: The Toro 127-9109 Snow Blower Recoil Starter Assembly restored dependable pull starting and made cold-weather engine starts much easier.

• What is the Toro 127-9109 recoil starter assembly?

  It is a manual starting assembly designed to turn the engine during a starter-cord pull. Confirm the engine identification and original part number before ordering.

• Why does a snow blower starter cord fail to retract?

  A damaged recoil spring, tangled rope, or obstructed internal mechanism can prevent the cord from returning properly. Inspect the starter assembly for damage before further use.

• What causes a recoil starter to pull without turning the engine?

  Worn or damaged engagement components may prevent the starter from transferring force to the engine. Check the engagement mechanism and mounting arrangement to identify the cause.

• Why is proper cord retraction important?

  Smooth retraction returns the cord and handle to their resting position, keeping the starter ready for the next starting attempt and supporting consistent operation.

• What should be checked before installing a replacement recoil starter?

  Compare the original part number, mounting points, and engagement arrangement with the replacement. Also inspect the surrounding starting components for damage that could affect operation.
