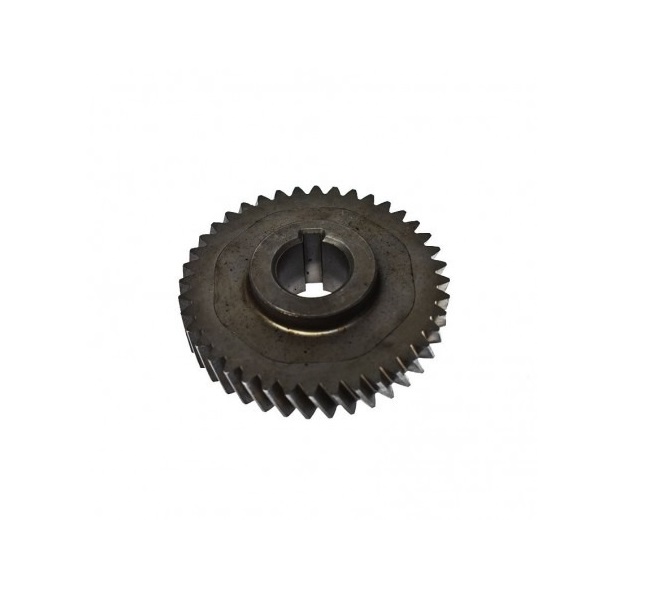

Toro 138-0696 Snow Blower Helical Gear

Product Overview:

Transfers rotational movement through the snow blower’s gear mechanism to support the operation of the associated drive or transmission components. The Toro 138-0696 Snow Blower Helical Gear is an OEM replacement component . Its helical tooth design allows it to mesh with a corresponding gear, transmitting torque through the mechanism. Maintaining proper tooth condition and gear alignment helps support smooth engagement and reliable mechanical power transfer.

Gear Tooth Engagement:

The helical gear uses angled teeth to engage with a matching gear across the intended contact surfaces. This engagement transfers rotational force through the gear mechanism.

Mechanical Loading:

During operation, the gear transmits rotational force through its teeth and supporting shaft or mounting interface. Operating loads place stress on the tooth surfaces and gear body.

Replacement Guidelines:

Replace the Toro 138-0696 Snow Blower Helical Gear if inspection reveals broken or significantly worn teeth, cracking, deformation, or damage that prevents reliable engagement. Inspect the mating gear, shaft interface, supports, and lubrication condition where applicable. Follow the manufacturer’s service procedure and verify the exact part number and gear configuration before installation.

Common Signs of Wear:

• Chipped, broken, or excessively worn gear teeth.
• Pitting, scoring, or visible surface damage.
• Unusual grinding or clicking noises from the gear mechanism.
• Irregular movement or inconsistent power transmission.
• Excessive looseness or misalignment within the gear assembly.

Equipment Compatibility:

The Toro 138-0696 Snow Blower Helical Gear is an OEM replacement part intended for compatible Toro snow blower models that specify this part number. Verify the equipment model and serial numbers against official parts documentation before ordering to confirm compatibility.

The Toro 138-0696 Snow Blower Helical Gear is used in suitable snow blower auger gearcase assemblies to transfer rotation between gear components. Gear wear or damage can affect auger operation.

Common Symptoms:

• Gear teeth become worn.

• Helical gear develops cracks.

• Gear mesh becomes uneven.

• Gear rotation becomes restricted.

• Gearcase connection loosens.

Gear Teeth Become Worn

Quick Check: Inspect the helical gear teeth for rounding, chipping, or uneven wear patterns affecting gear engagement.

Fix Suggestion: Examine the gear contact surfaces, inspect related gearcase components for alignment issues, and replace the gear when tooth damage affects operation.

Prevention Tip: Maintain proper gearcase lubrication to reduce excessive gear surface wear.

Helical Gear Develops Cracks

Quick Check: Inspect the gear body for visible cracks, fractures, or signs of structural damage.

Fix Suggestion: Check the surrounding auger gearcase components for stress-related issues and replace the gear if cracks compromise strength.

Prevention Tip: Avoid operating the snow blower with excessive loads or sudden auger impacts.

Gear Mesh Becomes Uneven

Quick Check: Check for unusual gear movement, noise, or inconsistent rotation within the auger gearcase.

Fix Suggestion: Inspect gear alignment, examine connected bushings and shafts, and ensure the helical gear maintains proper engagement with mating components.

Prevention Tip: Inspect auger gearcase components during seasonal maintenance.

Gear Rotation Becomes Restricted

Quick Check: Rotate the gearcase manually and check for binding or resistance during movement.

Fix Suggestion: Inspect for internal obstructions, check related rotating parts, and ensure the gear moves smoothly within the assembly.

Prevention Tip: Address unusual gearcase noise or resistance before continued operation.

Customer Experience: The Toro 138-0696 Snow Blower Helical Gear helped to restore proper auger gearcase operation and improved consistent snow clearing performance during winter use.

• What is the function of a helical gear in a snow blower?

  A helical gear transfers rotational movement and torque through a gear mechanism. Its angled teeth engage with a matching gear to support the operation of the associated mechanical assembly.

• Why is the correct tooth profile important when replacing a gear?

  The tooth profile affects how the replacement gear meshes with its mating component. An incorrect profile or configuration may cause poor engagement, increased wear, noise, or mechanical interference.

• Can a damaged helical gear affect snow blower performance?

  Yes. Worn or broken teeth may interrupt power transmission, cause abnormal noise, or prevent the associated mechanism from operating as intended.

• Does this helical gear require lubrication?

  Lubrication requirements depend on the gearbox or transmission design in which the gear is installed. Follow Toro’s service documentation for the specified lubricant and maintenance procedure.

• How do I verify that part 138-0696 fits my Toro snow blower?

  Check the complete model and serial numbers and compare the required part number with official parts catalog. Confirm the gear configuration and mounting details before ordering.
