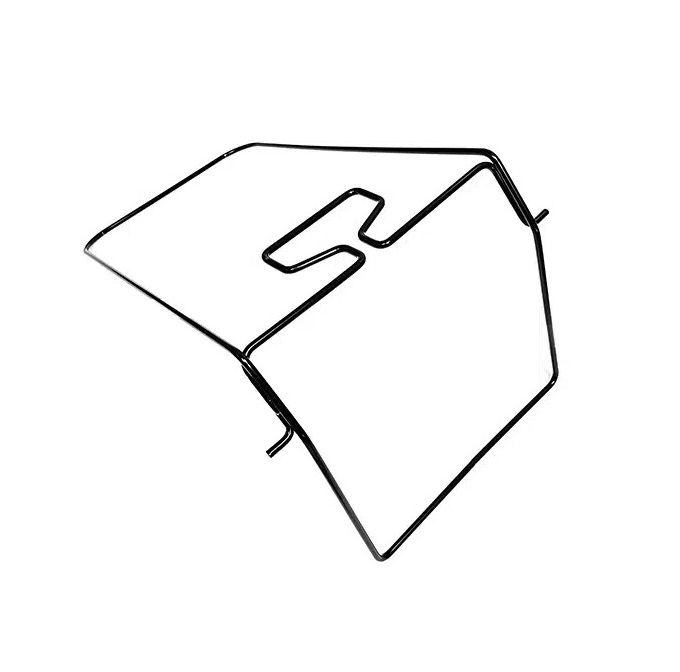

Toro 139-5470-03 Lawn Mower Bag Frame Assembly

Product Overview:

Supports and positions the grass collection bag within the rear collection system of walk-behind lawn mowers. The Toro 139-5470-03 Lawn Mower Bag Frame Assembly is an OEM structural frame that provides the framework needed to support the separate grass collection bag and maintain its intended shape when attached to the mower.

Bag Support:

The frame's rigid structure maintains the open form of the grass collection bag and provides support around the collection opening. As grass clippings enter the rear collection system, the frame keeps the separate bag supported and positioned so the available collection space remains open for incoming material. The frame and grass bag remain separate components within the overall collection assembly.

Replacement Guidelines:

Replace the Toro 139-5470-03 Lawn Mower Bag Frame Assembly when it is bent, cracked, broken, or damaged enough that it can no longer support the grass collection bag in its intended shape or position. Replacement may also be necessary when connection areas are damaged or the frame no longer provides adequate support for the collection bag.

Common Signs of Wear:

• Bent or distorted frame sections.
• Cracks or broken portions of the frame.
• Damaged connection or attachment areas.
• Excessive wear around points where the bag is supported.
• A frame that no longer holds the grass bag in its intended shape.

Equipment Compatibility:

The Toro 139-5470-03 Lawn Mower Bag Frame Assembly is an OEM frame for selected Toro walk-behind lawn mower applications, including certain Recycler and Flex-Force Power System models. Because applicability can vary by model and serial-number range, verify the complete mower model, serial number, and applicable Toro parts documentation before purchasing.

• Does the Toro 139-5470-03 Bag Frame include the grass collection bag?

  No. The Toro 139-5470-03 Bag Frame Assembly is supplied as the frame only, while the grass bag is a separate component within the rear bag assembly.

• What is the difference between the bag frame and the grass collection bag?

  The bag frame provides structural support, while the separate grass collection bag serves as the collection component.

• Does the bag frame determine the grass collection bag's capacity?

  No. The frame provides structural support, while capacity is determined by the design and size of the separate grass collection bag.

• What can happen if the bag frame becomes bent or deformed?

  Significant deformation may prevent the frame from holding the collection bag in its intended shape or position and can interfere with the collection system's intended function.

• How can I confirm the Toro 139-5470-03 Bag Frame Assembly before purchasing?

  Match the Toro part number 139-5470-03, bag frame assembly designation, mower model, and applicable rear bag configuration with the relevant parts documentation.
