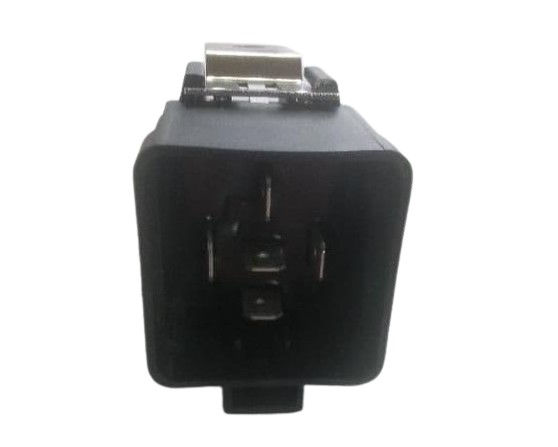

Toro 70-1480 Chain Saw Relay

The Toro 70-1480 Chain Saw Relay is an electrical switching component designed for compatible Toro chain saw systems, responsible for controlling current flow to the starter circuit and ensuring reliable ignition response during tool operation.

Common Issues:

• No start when ignition switch is engaged.

• Intermittent starting or unexpected power loss during operation.

• Clicking sound from relay without starter motor engagement.

• Overheating or burning smell coming from relay housing.

• Weak or unstable electrical connection to starter circuit.

Relay Not Activating

Quick Check: Test voltage at relay coil when start switch is pressed.

Fix Suggestion: Replace Toro 70-1480 Chain Saw Relay if internal coil or contacts fail to energize.

Prevention Tip: Keep terminals clean and protect relay from moisture exposure.

Intermittent Starting Failure

Quick Check: Observe whether relay clicks inconsistently during repeated start attempts.

Fix Suggestion: Inspect wiring harness and replace relay if contact wear is detected.

Prevention Tip: Secure all wiring connections to reduce vibration-related loosening.

Overheating Relay Housing

Quick Check: Check relay temperature after short activation cycles for excessive heat buildup.

Fix Suggestion: Replace relay if internal resistance causes overheating or burnt contacts.

Prevention Tip: Avoid repeated rapid start attempts that overload the relay.

No Power to Starter Circuit

Quick Check: Verify continuity from power source through relay output terminals.

Fix Suggestion: Clean corroded terminals and replace relay if switching function fails.

Prevention Tip: Regularly inspect battery and connector condition for stable power delivery.

Customer Experience: Users have reported that replacing a failing unit with the Toro 70-1480 Chain Saw Relay restored consistent starting response and eliminated intermittent ignition issues in older Toro chain saw systems.

• Is the Toro 70-1480 Chain Saw Relay compatible with all Toro chainsaw models?

  No. The Toro 70-1480 relay is designed for specific Toro equipment applications. Always confirm compatibility using your model number and equipment parts diagram before ordering.

• Why does my chain saw click but not start after installing this relay?

  This usually indicates insufficient current transfer, worn contacts, or an issue elsewhere in the starter circuit wiring.

• Can I replace the Toro chain saw relay myself without professional help?

  It can typically be replaced with basic tools by disconnecting power, removing the old relay, and installing the new unit securely.

• What is the main function of the Toro chain saw relay?

  It controls electrical flow to the starter system, enabling reliable ignition engagement when the start switch is activated.
