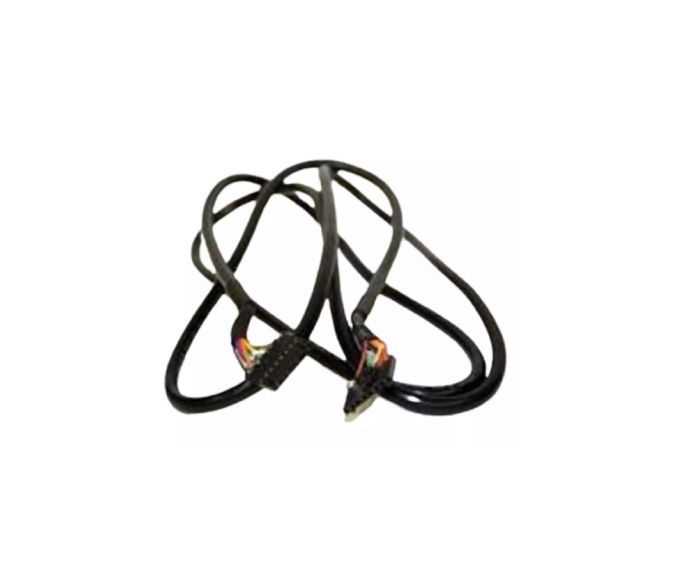

Vision Fitness 090658 Treadmill Console Wire Harness

Product Overview:

As part of the treadmill's electrical control system, this wire harness manages signal connections required for normal equipment operation. The Vision Fitness 090658 Treadmill Console Wire Harness connects the console with related electrical components to support communication between user controls and the treadmill's operating system. Positioned within the console assembly, this harness provides the electrical pathway needed to transfer operating signals between connected components, allowing the treadmill control system to receive and process information during use.

Console Connection Interface:

Provides the electrical connection between the treadmill console and associated control components. The harness uses its designated connectors and terminals to maintain the signal pathway required for communication between the user interface and the treadmill's electronic system.

Wiring Configuration:

Maintains the organized arrangement of conductors within the console assembly. The wiring routes electrical signals between designated connection points, helping preserve the intended electrical relationship between the console and connected treadmill components.

Replacement Guidelines:

Replace the Treadmill Console Wire Harness if the wires are frayed, cut, pinched, burned, corroded, or otherwise damaged. The SKU 090658 should be verified before replacement to ensure the correct harness is selected. Replace the harness if deterioration affects electrical connections, signal transmission, console functions, or normal operation.

Common Failure Symptoms:

• Console functions become intermittent due to disrupted electrical connections.
• Display or control responses become inconsistent during treadmill operation.
• Treadmill does not receive proper signals from the console.
• Visible damage, wear, or deterioration is present on the harness wiring or connectors.
• Communication between the console and control components is interrupted.

Equipment Compatibility:

Verify that vision fitness part number 090658 matches the original wire harness installed in the treadmill. Confirm compatibility by checking the treadmill model number, existing part number, and manufacturer documentation before purchase to ensure the correct harness configuration is selected.
