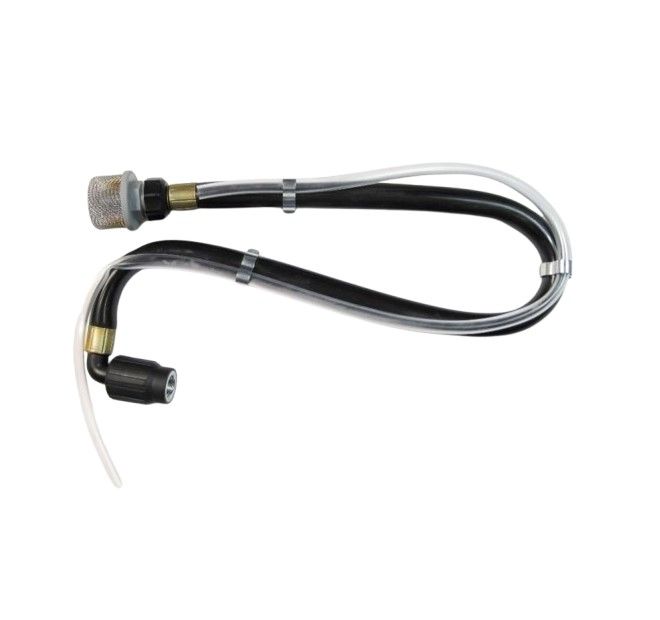

Wagner 516197 Suction Set Assembly

The Wagner 516197 Suction Set Assembly ensures uniform and consistent material pickup through the paint sprayer suction path, enabling it to maintain steady coating delivery during spraying.

This part addresses the following symptoms:

• Reduced material pickup through the suction path.

• Intermittent paint delivery during spraying.

• Air entering around the suction connection.

• Restricted coating flow from the container.

• Uneven material supply during continuous spraying.

Suction Flow Restriction

Quick Check: Examine the suction set opening for dried coating or residue.

Fix Suggestion: Clear the passage using a proper cleaning method for the material.

Prevention Tip: Flush the suction assembly after spraying sessions to keep passages clear.

Air Entry at Connection

Quick Check: Examine the suction connection for proper seating and firm attachment.

Fix Suggestion: Secure the connection evenly so the suction path remains properly sealed.

Prevention Tip: Keep connection points clean before attaching the suction set.

Intermittent Material Pickup

Quick Check: Observe material movement through the suction path while operating the sprayer.

Fix Suggestion: Reposition the suction set so its intake remains properly immersed.

Prevention Tip: Keep the suction tube positioned correctly inside the coating container.

Material Flow Variation

Quick Check: Compare coating delivery while spraying at a consistent operating setting.

Fix Suggestion: Clean the suction pathway and remove accumulated coating residue.

Prevention Tip: Rinse the suction set promptly after each coating application.

Customer Experience: A user noticed that keeping the Wagner 516197 Suction Set Assembly clean helped maintain steady material pickup during regular spraying work.
