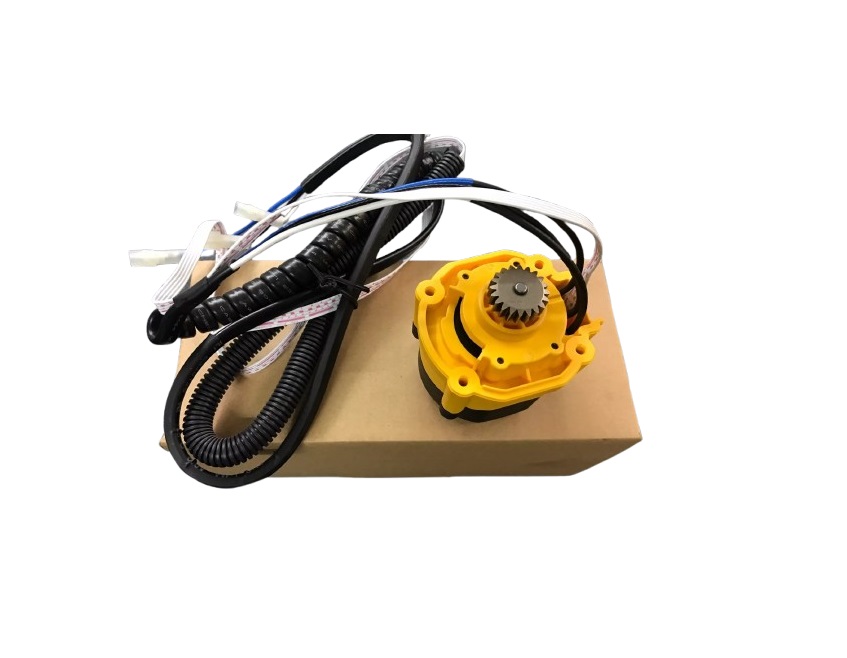

Dewalt 90638422 Cordless Trimmer Motor & Pinion Assembly

Product Overview:

Transfers motor-generated power through the trimmer drive system to support cutting head rotation and trimming operation. The DeWalt 90638422 Trimmer Motor & Pinion Assembly combines the electric motor and pinion gear into a single drive component for compatible DeWalt trimmer applications. The assembly provides the mechanical connection between the motor output and cutting system.

Motor Power Transmission:

The trimmer motor converts electrical energy into mechanical movement to provide rotational power for the cutting system. Within the assembly, the motor generates the drive force used by the pinion gear to transfer rotation through the trimmer mechanism.

Pinion Gear Drive Integration:

The pinion gear transfers rotational movement from the motor into the trimmer drive system. It supports the mechanical connection between the motor assembly and cutting head components, helping maintain the intended transfer of motion through the trimming mechanism.

Replacement Guidelines:

Replacement of the DeWalt 90638422 Trimmer Motor & Pinion Assembly when physical damage, excessive wear, reduced rotational capability, or ineffective power transfer affects cutting-head operation. Replacement may also be necessary when the motor shows deterioration or the pinion gear has worn or damaged teeth.

Common Signs of Wear:

• Reduced or inconsistent cutting head rotation
• Visible wear or damage on the pinion gear
• Unusual noise from the drive assembly area
• Physical damage to the motor housing
• Excessive wear affecting internal drive components

Equipment Compatibility:

The DeWalt 90638422 Trimmer Motor & Pinion Assembly is designed for compatible DeWalt trimmer applications. Verify the exact trimmer model, existing part number, and available manufacturer documentation before purchasing to confirm the correct application.

The Dewalt 90638422 Cordless Trimmer Motor & Pinion Assembly provides rotary drive for the cutting system, helping the cordless trimmer operate when the motor and pinion are working properly.

Common Symptoms:

• Cutting head fails to rotate.

• Motor produces unusual noise.

• Cutting speed drops during trimming.

• Motor stops during operation.

• Pinion drive shows signs of wear.

No Cutting Movement

Quick Check: Activate the trimmer and determine whether the motor runs while the cutting head remains still.

Fix Suggestion: Replace the motor and pinion assembly if an internal drive fault is identified.

Prevention Tip: Clear grass buildup around the cutting area after use.

Reduced Cutting Speed

Quick Check: Observe whether the cutting head slows during normal trimming instead of maintaining its usual rotation.

Fix Suggestion: Renew the assembly if motor or pinion wear is limiting rotational movement.

Prevention Tip: Avoid prolonged cutting through vegetation that places excessive load on the motor.

Abnormal Drive Noise

Quick Check: Listen near the motor and pinion area for clicking, grinding, or other unusual sounds.

Fix Suggestion: Service the assembly and replace it if internal motor or pinion damage is present.

Prevention Tip: Stop using the trimmer if a new drive noise develops.

Motor Stops During Use

Quick Check: Note whether the motor cuts out while the trimmer is operating normally.

Fix Suggestion: Address the motor assembly if testing identifies an internal fault.

Prevention Tip: Keep the motor area free from heavy debris and allow the trimmer to operate within its intended workload.

Customer Experience: A trimmer owner installed a Dewalt Motor & Pinion Assembly after the cutting head stopped rotating and the trimmer worked normally again.

• What should be inspected on the motor and pinion assembly during maintenance?

  Inspect the pinion gear for worn or damaged teeth and check for conditions that may affect power transfer through the trimmer drive system.

• What role does the 90638422 Motor and Pinion Assembly play in a trimmer?

  The assembly transfers motor-generated rotational power through the trimmer drive system to support cutting head movement during operation.

• What symptoms may indicate a problem with the trimmer drive assembly?

  Unusual drive noise, reduced cutting head rotation, inconsistent power transfer, or damaged pinion gear teeth may indicate a problem.

• How can pinion gear wear affect trimmer operation?

  Worn or damaged gear teeth can affect the interaction between the pinion gear and other internal drive components, potentially affecting consistent power transfer.

• How can the 90638422 Motor and Pinion Assembly be identified before purchase?

  Confirm the trimmer model, existing part information, and manufacturer documentation to ensure the assembly matches the intended equipment configuration.
