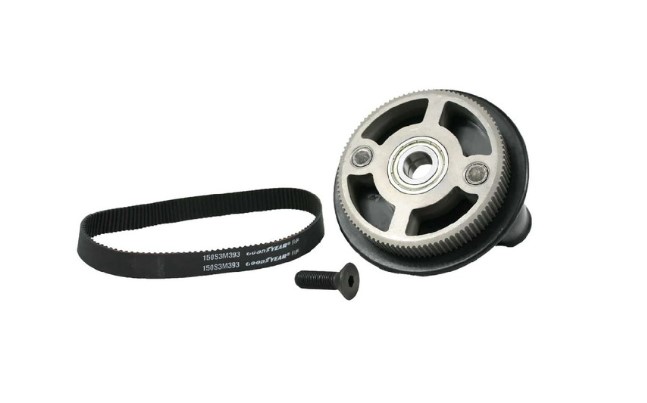

Graco 288616 Pulley/Roller Kit

SKU: 288616 Brand:
GRACO
Availability:
In Stock
(0)
$208.58 Price reduced from $217.95
Save $9.37
Have a Question? +1 (866) 963-0907

Description

The Graco 288616 Pulley/Roller Kit is essential for many sprayers and pumps that use belt-driven mechanisms. Typically, this kit includes pulleys, rollers, and belts to transmit the power from the motor to the pump or other components. The mechanical power transmission system is the pulley and roller system. The motor’s shaft is joined to a pulley that, when spun, can turn a belt. The belt can then transfer the rotational motion and power from the pump or other components wrapping around a roller and pulley as the belt wraps. The speed and torque delivered to the drives component depend on the pulley size and configuration, the roller configuration, and the pulley size.

Dimensions:

  • Weight: 3 lbs

More Information:

The Graco 288616 Pulley/Roller Kit supports belt movement within the paint sprayer drive system, helping maintain proper motion between the roller pulley and connected components.

Common Symptoms:

• Roller pulley makes a rubbing sound.

• Belt movement becomes uneven during spraying.

• Pulley surface shows visible wear.

• Drive belt slips from its path.

• Sprayer develops unusual drive noise.

Rubbing Pulley Noise

Quick Check: Listen around the roller pulley for rubbing or scraping sounds while the sprayer operates.

Fix Suggestion: Fit the pulley kit when worn roller surfaces are affecting belt movement.

Prevention Tip: Keep paint residue and debris away from the pulley area.

Uneven Belt Travel

Quick Check: Watch the belt as it passes around the roller pulley during operation.

Fix Suggestion: Refit the pulley and belt arrangement when worn components cause irregular travel.

Prevention Tip: Include the roller assembly in regular sprayer maintenance.

Worn Roller Surface

Quick Check: Look for grooves, flat spots or other visible damage on the roller.

Fix Suggestion: Renew the roller pulley kit when surface wear affects belt contact.

Prevention Tip: Avoid allowing debris to build up around the drive assembly.

Belt Slippage

Quick Check: Observe whether the belt moves away from its normal path around the roller.

Fix Suggestion: Address worn pulley components and use the proper belt with the roller assembly.

Prevention Tip: Maintain proper pulley and belt alignment during service.

Customer Experience: A customer reported smoother compressor operation after servicing the roller pulley and correcting inconsistent belt engagement.

Disclaimer: Troubleshooting guidance provided for reference only.
