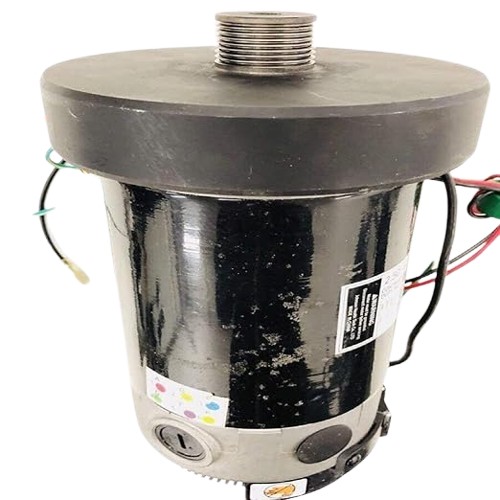

Horizon Fitness 1000113141 Drive Motor Set

The Horizon Fitness 1000113141 Drive Motor Set can be associated with belt movement problems, unusual motor behavior, and inconsistent treadmill operation when drive components develop faults.

This part may address the following symptoms:

• Treadmill belt moves slowly despite normal speed settings.

• Belt movement uneven during walking or running.

• Drive motor produces unusual operating sounds.

• Treadmill struggles when additional walking pressure is applied.

• Belt fails to move while the console operates normally.

Reduced Belt Movement

Quick Check: Observe whether the drive motor turns when the treadmill starts.

Fix Suggestion: Examine motor connections and drive components for looseness or damage.

Prevention Tip: Keep the treadmill drive area clean and free from accumulated debris.

Unusual Motor Noise

Quick Check: Listen for grinding, rubbing, or irregular sounds during belt movement.

Fix Suggestion: Examine the motor mounting area and surrounding drive components for interference.

Prevention Tip: Investigate unusual motor sounds promptly to help prevent further drive-system issues.

Intermittent Belt Operation

Quick Check: Run the treadmill briefly and note whether movement repeatedly stops.

Fix Suggestion: Trace the motor wiring for loose terminals or damaged connections.

Prevention Tip: Keep electrical connections firmly secured during routine treadmill servicing.

Poor Performance Under Load

Quick Check: Notice whether belt speed drops when walking pressure increases.

Fix Suggestion: Evaluate the drive motor and belt system for excessive resistance.

Prevention Tip: Maintain correct belt adjustment to reduce unnecessary motor strain.

Customer Experience: A customer noticed more consistent belt movement after addressing a drive motor-related issue, with treadmill operation becoming steadier during use.
