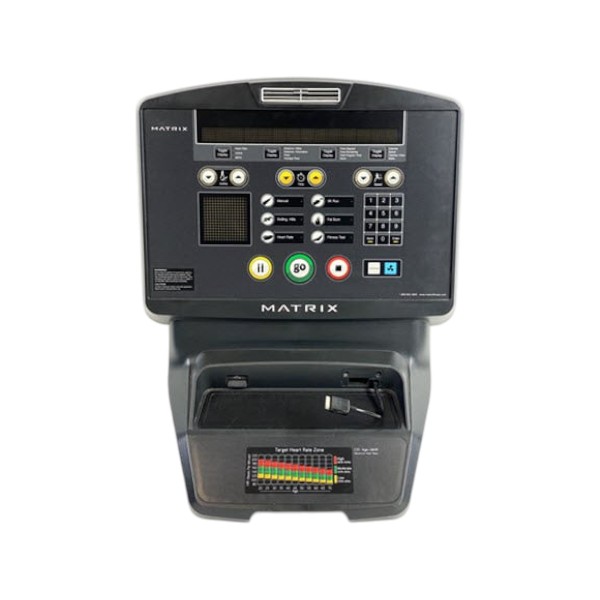

Matrix Fitness 1000226496 Control Board Console H001S001 Coating T

The Matrix Fitness 1000226496 Control Board Console H001S001 Coating T supports treadmill console control and user-interface communication, while board faults can affect display response and control inputs.

This part fixes the following symptoms:

• Console buttons respond during treadmill operation.

• Display information appears incomplete or unstable.

• Console controls stop responding during use.

• Treadmill settings fail to register from the console.

• Communication between the console and treadmill is interrupted.

Unresponsive Console Controls

Quick Check: Press several console buttons and note whether any inputs register.

Fix Suggestion: Reseat the console connections and restore firm electrical contact.

Prevention Tip: Keep connector areas clean and avoid pulling connected wiring.

Unstable Display Response

Quick Check: Observe whether display information flickers, disappears, or changes unexpectedly during operation.

Fix Suggestion: Secure the board connections and verify steady power reaching the console.

Prevention Tip: Prevent moisture and debris from reaching exposed console components.

Control Input Delays

Quick Check: Test speed and setting controls for delayed responses.

Fix Suggestion: Reconnect the related wiring and examine the control-board connection points.

Prevention Tip: Handle console wiring carefully during routine treadmill servicing.

Console Communication Loss

Quick Check: Power the treadmill and observe communication between console and drive system.

Fix Suggestion: Trace the console wiring and correct any loose electrical connection.

Prevention Tip: Route cables properly to prevent strain around connection points.

Customer Experience: A customer reported smoother console operation after addressing the control-board connection issue, with treadmill settings responding more consistently during workouts.
